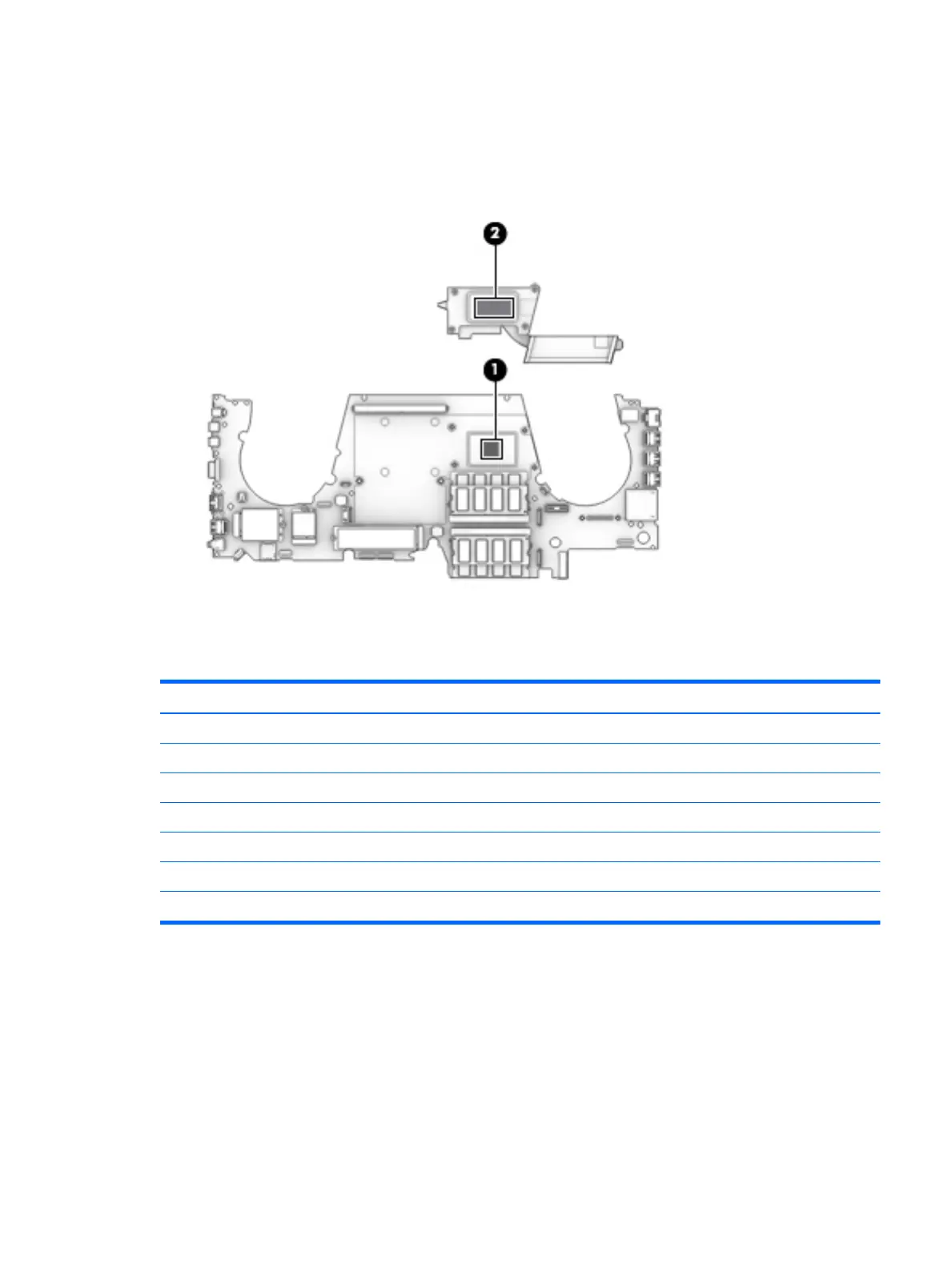

2. The following illustration shows the replacement thermal material locations. The thermal material must
be thoroughly cleaned from the surfaces of the heat sink and the system board components each time
the heat sink is removed. Replacement thermal material is included with the heat sink and system board
spare part kits.
Thermal paste is used on the system board component (1) and on the heat sink area (2) that services it.
Reverse this procedure to install the heat sink.
Discrete graphics board
Description Spare part number
NVIDIA Quadro M12000 with 4 GB graphics subsystem memory 917108-001
NVIDIA Quadro M2200 with 4 GB graphics subsystem memory 917109-001
NVIDIA Quadro M3000M: NVIDIA N16E-Q1 with 4 GB GDDR5 graphics subsystem memory 917109-001
NVIDIA Quadro P3000 with 6 GB graphics subsystem memory 917110-001
NVIDIA Quadro P4000 with 8 GB graphics subsystem memory 917111-001
NVIDIA Quadro P5000 with 16 GB graphics subsystem memory 917112-001
AMD Radion Pro WX 4170M with 4 GB GDDR5 graphics subsystem memory 917107-001
Before removing the discrete graphics board, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the following components: .
Component replacement procedures 59
