Reverse this procedure to install the TouchPad.
Smart card reader and frame
Description Spare part number
Smart card reader
Before removing the smart card reader, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the following components:
a. Service door (see Service door on page 30).
b. Battery (see Battery on page 31).
c. Base enclosure (see Base enclosure on page 33).

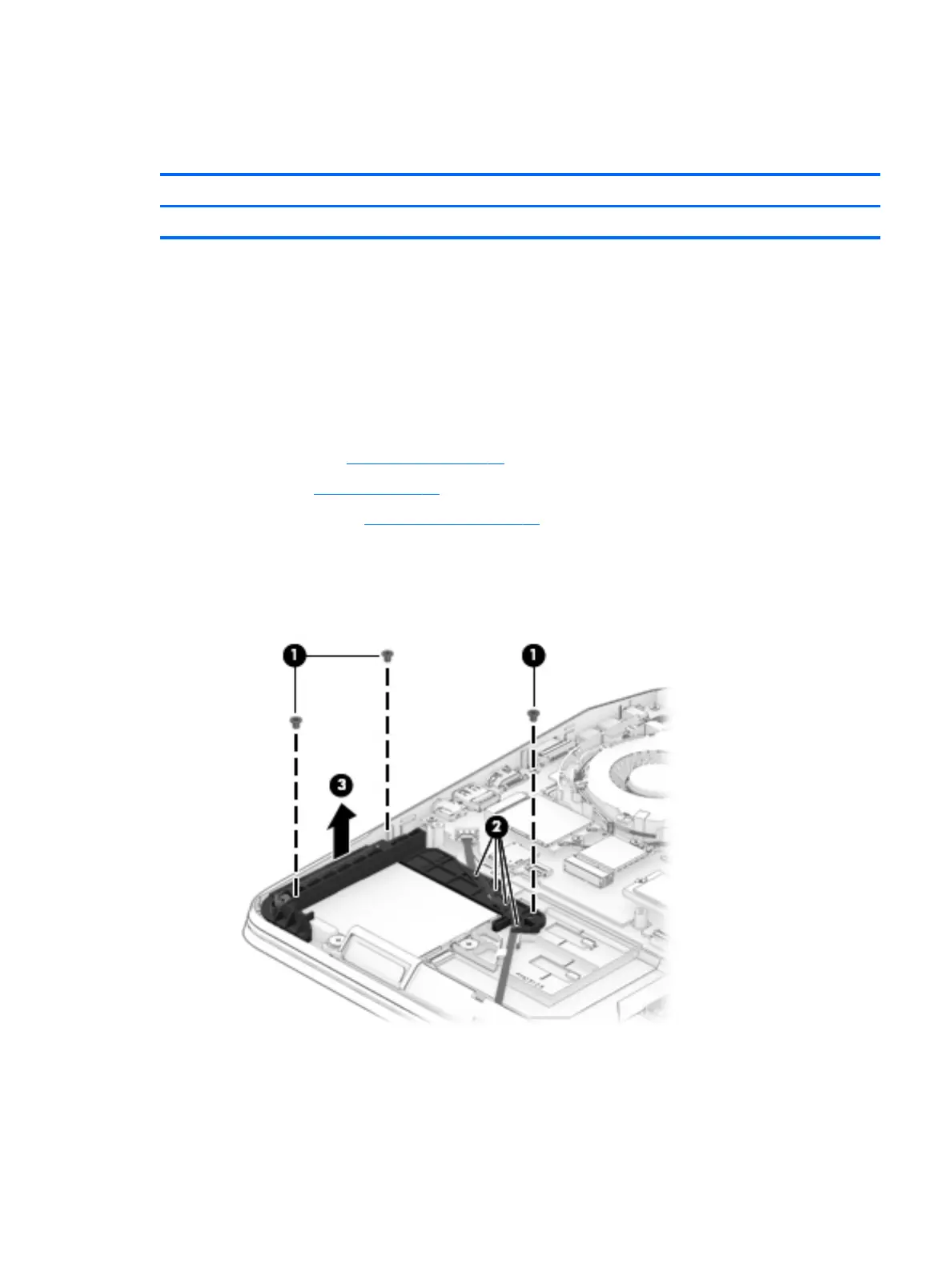

Remove the smart card reader:
1. Remove 3 Phillips screws (1), release the cable from the routing (2), and then lift the bracket to remove
it (3).
Component replacement procedures 51
