Speakers
Description Spare part number
Speakers (includes cable) 848361-001
Before removing the speakers, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the following components:
a. Service door (see Service door on page 30).
b. Battery (see Battery on page 31).
c. Base enclosure (see Base enclosure on page 33).
d. Hard drive(s) and internal frame (see Hard drive(s) and internal frame on page 33).

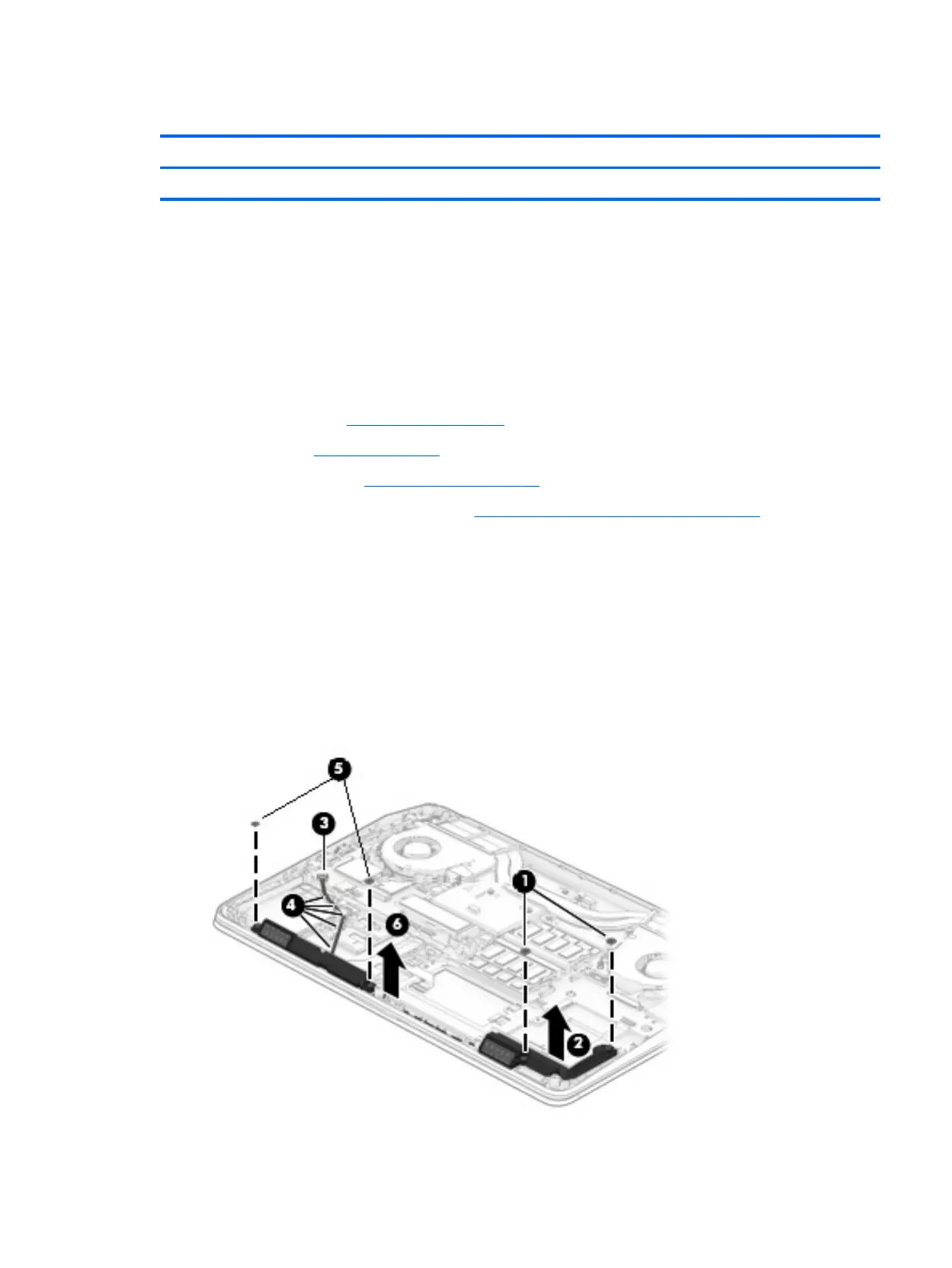

Remove the speakers:
1. Remove the two Phillips screws (1) that secure the right speaker to the computer.
2. Remove the right speaker (2).
3. Disconnect the speaker cable from the system board (3), and then release the cable from the guides (4)
securing it to the computer.
4. Remove the two Phillips screws (5) that secure the left speaker to the computer.
5. Remove the left speaker (6).
Reverse this procedure to install the speakers.
Component replacement procedures 49
