2. Horizontally pull out the fan module from the chassis. See (2) in Figure 3-9.
NO TICE
Ensure that an ESD bag holds only one fan module.
3. Place the removed fan module into an ESD bag.
4. Repeat 1 to 3 to remove other fan modules.
----End
3.4 Installing the Chassis
During operations, wear protective gloves to prevent personal injury.
The E9000 chassis provides two rows of holes for installing front mounting ears. By default,
front mounting ears are installed on the front row of holes.
If the cabinet depth is less than or equal to 1000 mm or 39.37 in. (such as Huawei N610E-22
cabinet), the space in the rear of the chassis is insufficient for connecting power cables for
PDUs. In this case, remove the front mounting ears from the front row of holes and install
them on the rear row, enlarging the clearance in the rear of the chassis by 40 mm (1.57 in.).

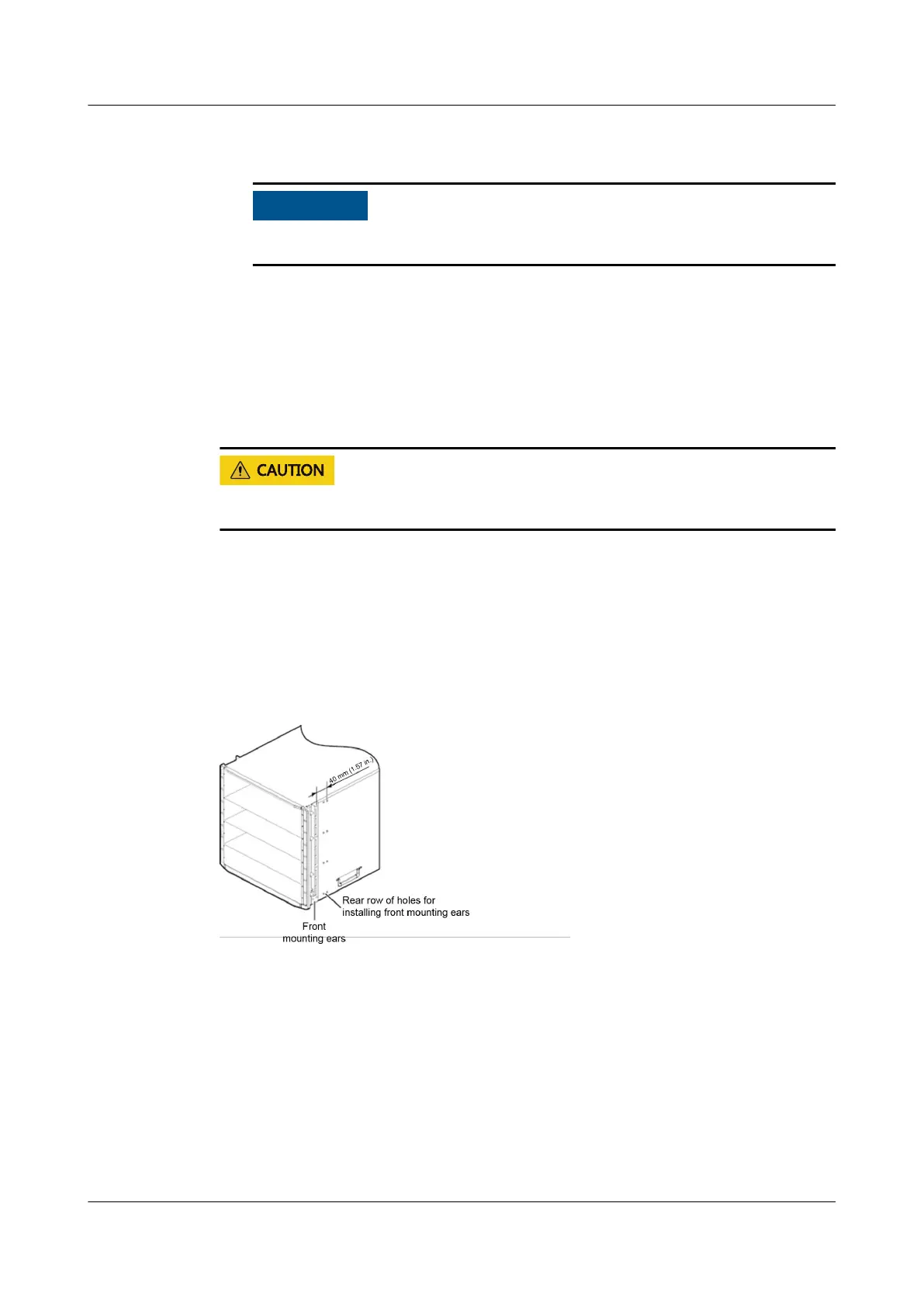

Figure 3-10 Holes for installing front mounting ears
Procedure
Step 1 Use the installation template delivered with the chassis to locate the installation positions of
floating nuts.
E9000 Server
User Guide
3 Installing the E9000
Issue 25 (2019-11-30) Copyright © Huawei Technologies Co., Ltd. 54

Huawei E9000 Specifications

General

Form Factor	12U chassis
Blade Slots	16 half-width slots or 8 full-width slots
Switch Modules	GE, 10GE, and IB switches
Management Modules	Two hot-swappable management modules for redundancy
Power Supply	Supports up to 6 hot-swappable power supply units (PSUs)
Cooling	Redundant hot-swappable fan modules
Processor Options	Intel Xeon E5-2600 v3/v4 series processors (depending on blade type)
Memory Capacity	Up to 1.5 TB per blade
Storage Options	SAS/SATA/SSD options in blades
Networking	10GE/40GE networking options
Management	Huawei iBMC (Intelligent Baseboard Management Controller)
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Windows Server, VMware ESXi
