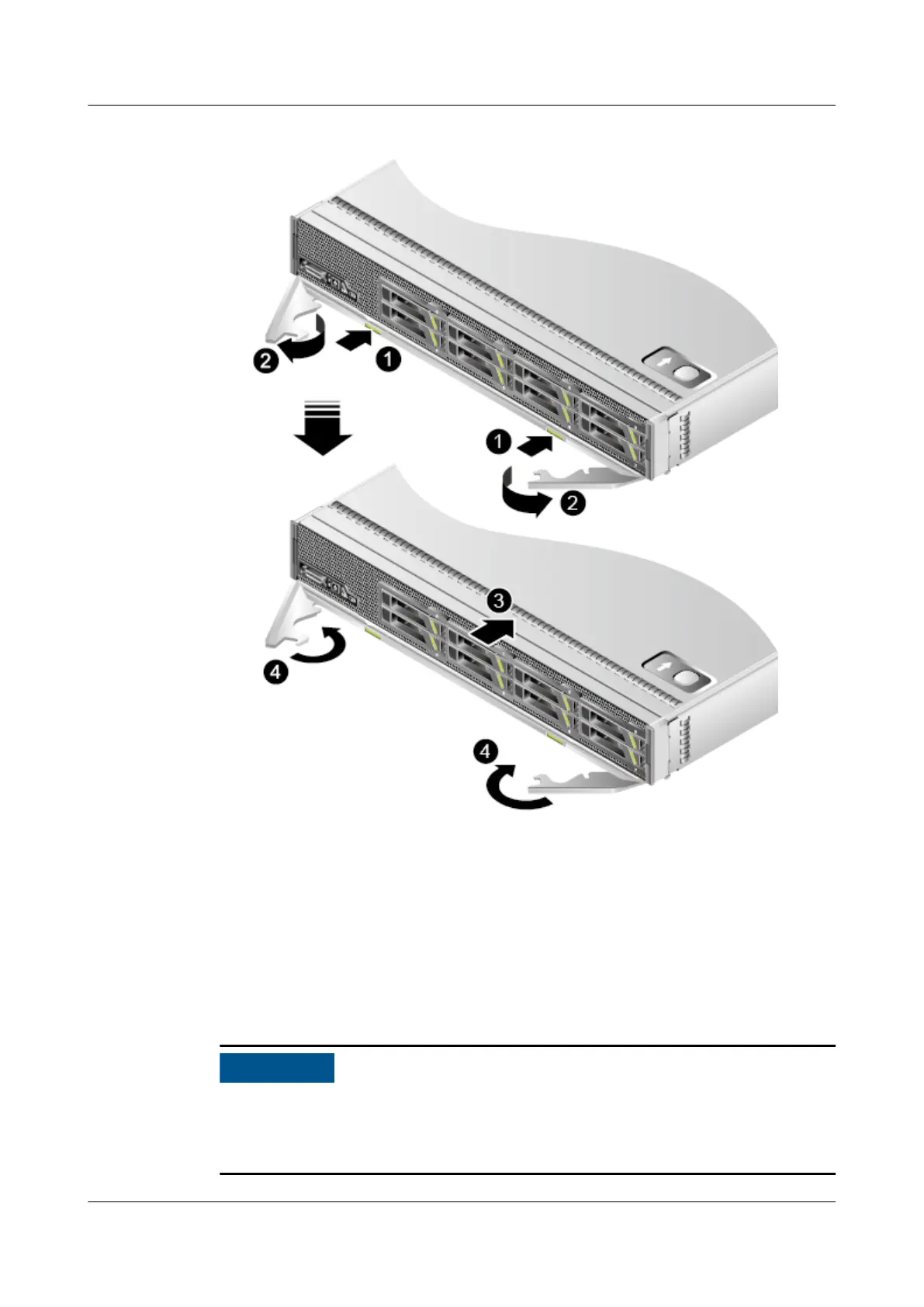

Figure 3-42 Installing the full-width compute node
3. Completely open the ejector levers on the full-width compute node. See (2) in Figure
3-42.
4. Horizontally insert the full-width compute node into the chassis. See (3) in Figure 3-42.
5. Close the ejector levers on the full-width compute node. See (4) in Figure 3-42.
----End
3.11 Installing the PGND Cable and Power Cables
NO TICE
l To ensure personal and equipment safety, use the recommended power cables.
l Power cables can be used only for dedicated server devices, and cannot be used for any
other devices.
E9000 Server
User Guide
3 Installing the E9000
Issue 25 (2019-11-30) Copyright © Huawei Technologies Co., Ltd. 76

Huawei E9000 Specifications

General

Form Factor	12U chassis
Blade Slots	16 half-width slots or 8 full-width slots
Switch Modules	GE, 10GE, and IB switches
Management Modules	Two hot-swappable management modules for redundancy
Power Supply	Supports up to 6 hot-swappable power supply units (PSUs)
Cooling	Redundant hot-swappable fan modules
Processor Options	Intel Xeon E5-2600 v3/v4 series processors (depending on blade type)
Memory Capacity	Up to 1.5 TB per blade
Storage Options	SAS/SATA/SSD options in blades
Networking	10GE/40GE networking options
Management	Huawei iBMC (Intelligent Baseboard Management Controller)
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Windows Server, VMware ESXi
