2.4.3 Configuration - Light-Weight Directory Access Protocol
(LDAP) Settings
This feature allows the user to configure Light-Weight Directory Access Protocol (LDPA)

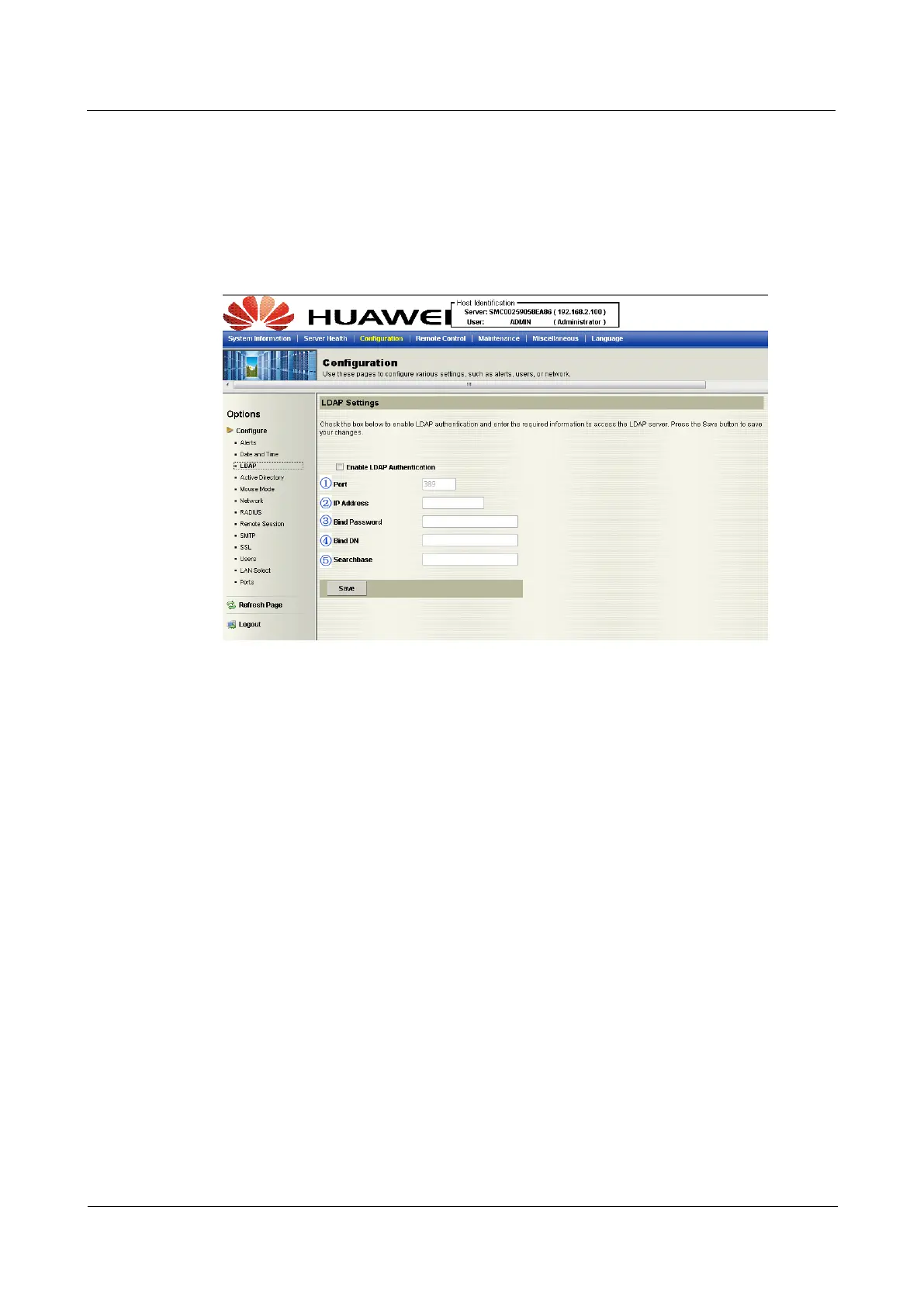

settings. When you click LDAP in the Options window, the following screen will display.
Examples and Explanations of the LDAP settings are shown below:
1. Port: 389-This item indicates the port number of the LDAP server.
2. IP Address: xx.xx.xx.xx- This item indicates the IP address of the LDAP server.
3. Bind Password: Secret- This item indicates the password of the LDAP server.
4. Bind DN: cn=manager, dc=administrator, dc=com- The bind DN is the user or the
LDAP server that is allowed to do limited search in the LDAP directory.
5. SearchBase: dc=administrator, dc=com-This feature shows the client which port in the
external directory tree to use for doing search.
After entering the information in the fields, click Save to save the information you've just
entered.
2.4.4 Configuration - Active Directory Settings
This feature allows the user to configure Active Directory settings. When you click Active
Directory in the Options window, the following screen will display.
