Appearance and Structure

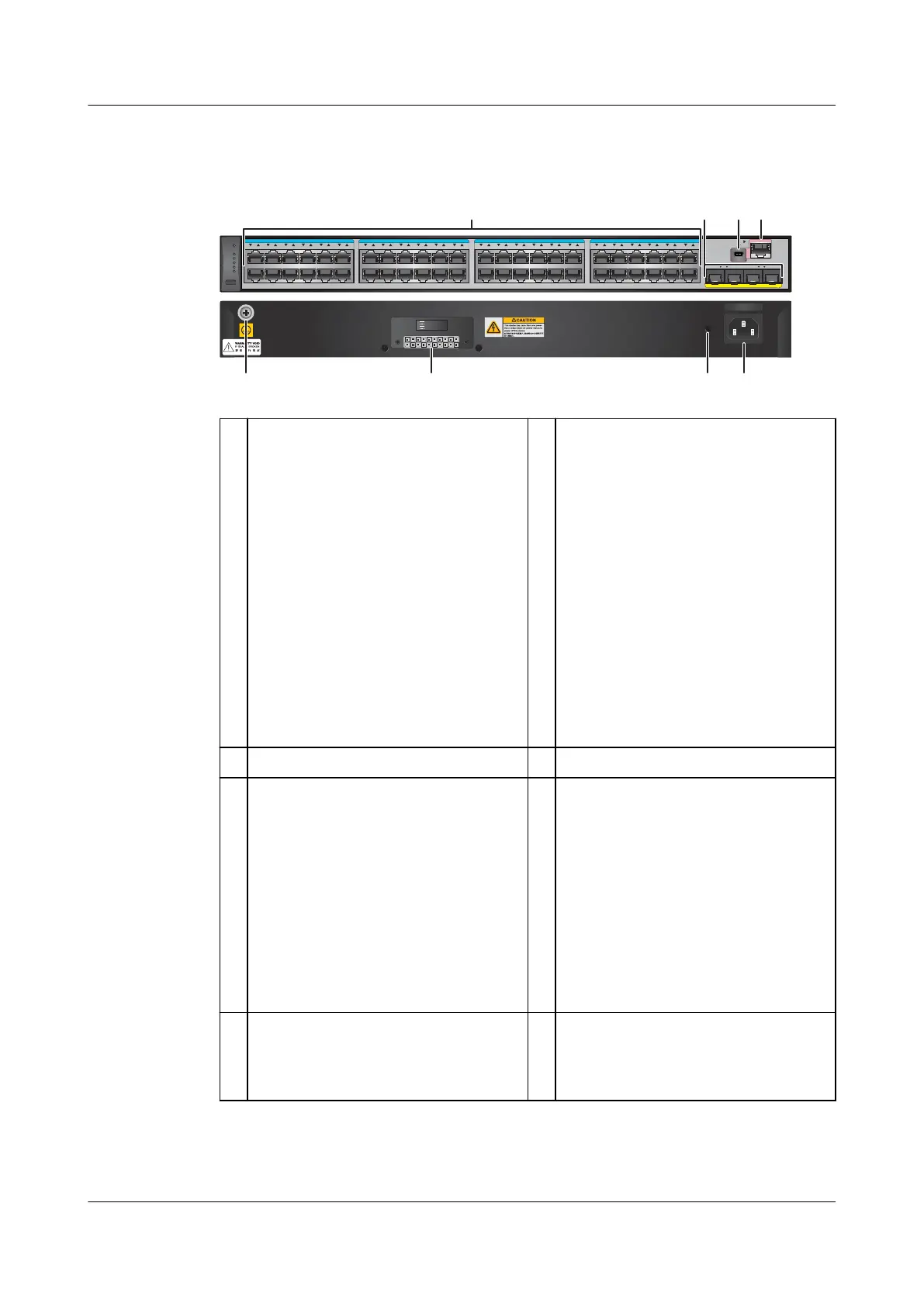

Figure 3-16 S5700-52P-PWR-LI-AC appearance
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
21
22 23 24 25 26 27 28 29 30 31 32
33
34 35 36 37 38 39 40 41 42 43 44
45
46 47 48
CONSOLE
49
50 51 52
MODE
STCK
SPED
STAT
SYS
PWR
PoE
HUAWEI
S5700-52P-PWR-LI-AC
1
342
~100-240V;50/60Hz;7A
+12V;10A
-53.5V;15A
56 78
1 Forty-eight PoE+ 10/100/1000BASE-T
ports
2 Four 1000BASE-X ports
Applicable modules and cables:
l GE optical module
l GE-CWDM optical module
l GE-DWDM optical module
l GE copper module (applicable in
V200R002C00 and later versions)
l Stack optical module (applicable in
V200R007C00 and later versions)
l 1 m and 10 m SFP+ copper cables
l 3 m and 10 m AOC cables
(applicable in V200R003C00 and
later versions)
3 One mini USB port 4 One console port
5 Ground screw
NOTE
It is used with a ground cable.
6 RPS socket
NOTE
l It is used with an RPS cable which is not
hot swappable.
l A PoE switch can have an RPS power
supply connected to this socket to
provide inputs for system power supply
and PoE power supply. The two inputs
are independent of each other. The RPS
power supply can also be used as a
backup of the system power supply when
it does not provide PoE power.
7 Jack for AC terminal locking latch
NOTE
The AC terminal locking latch is not
delivered with the switch.
8 AC socket
NOTE
It is used with an AC power cable.
Port Description
10/100/1000BASE-T port
S5700 Series Ethernet Switches
Hardware Description
3 Chassis
Issue 24 (2016-08-12) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
110
