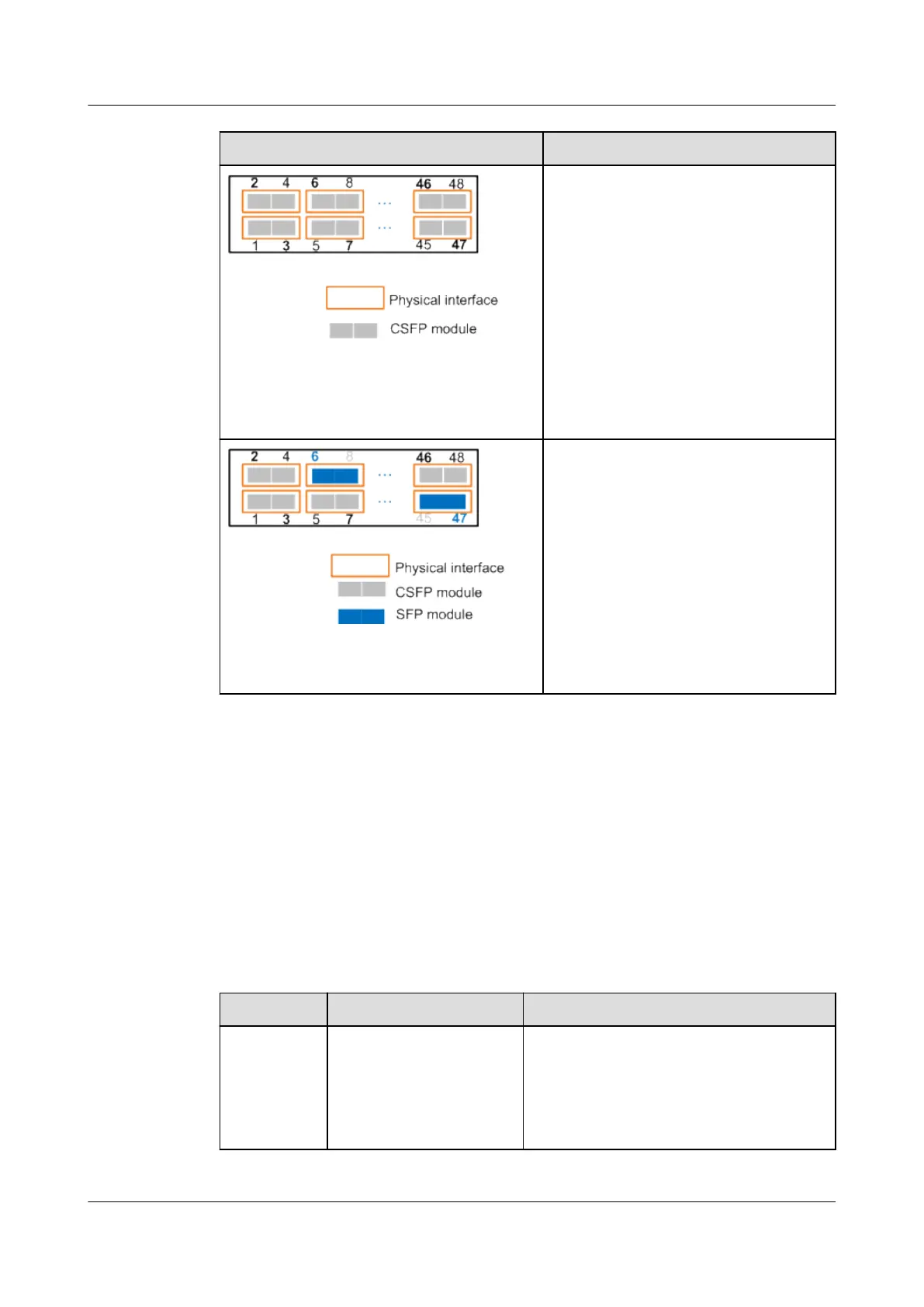

Port Numbering Diagram Description
When all the ports have CSFP optical
modules installed, each port functions as
two ports. The switch has a total of 48
ports in this case. These ports are
numbered starting with 1 from bottom to
top, and left to right.
For example, if a CSFP optical module is
installed on the first port at the lower left,
the port is split into two ports numbered
0/0/1 and 0/0/3. If a CSFP optical module
is installed on the first port at the upper
left, the port is split into two ports
numbered 0/0/2 and 0/0/4.
If some ports on the switch use CSFP
optical modules and some use SFP optical
modules, the ports are numbered
following the perspective numbering
conventions.
Assume that the first port at the lower left
uses a CSFP optical module and the
second port at the upper left uses an SFP
optical module. In this case, the two ports
derived from the first CSFP port are
numbered 0/0/1 and 0/0/3, and the second
SFP port is numbered 0/0/6.
3.4 S5700-LI
3.4.1 S5700-10P-LI-AC
Version Mapping
Table 3-4 lists the mapping between the S5700-10P-LI-AC chassis and software versions.
Table 3-4 Version mapping
Series
Model Software Version
S5700-LI S5700-10P-LI-AC V200R002C00 and later versions
NOTE
This model does not match V200R003C02,
V200R003C10, V200R005C00SPC500,
V200R005C01, V200R005C02, V200R005C03,
or V200R007C10.
