Huawei S5700 Series Hardware Description

3.5.1 S5700S-28P-LI-AC
Version Mapping
Table 3-133 lists the mapping between the S5700S-28P-LI-AC chassis and software versions.
Table 3-133 Version mapping
Series
Model Software Version
S5700S-LI S5700S-28P-LI-AC V200R001C00 and later versions
NOTE
This model does not match V200R001C01,
V200R003C02, V200R003C10,
V200R005C00SPC500, V200R005C01,
V200R005C02, V200R005C03, or
V200R007C10.
Appearance and Structure

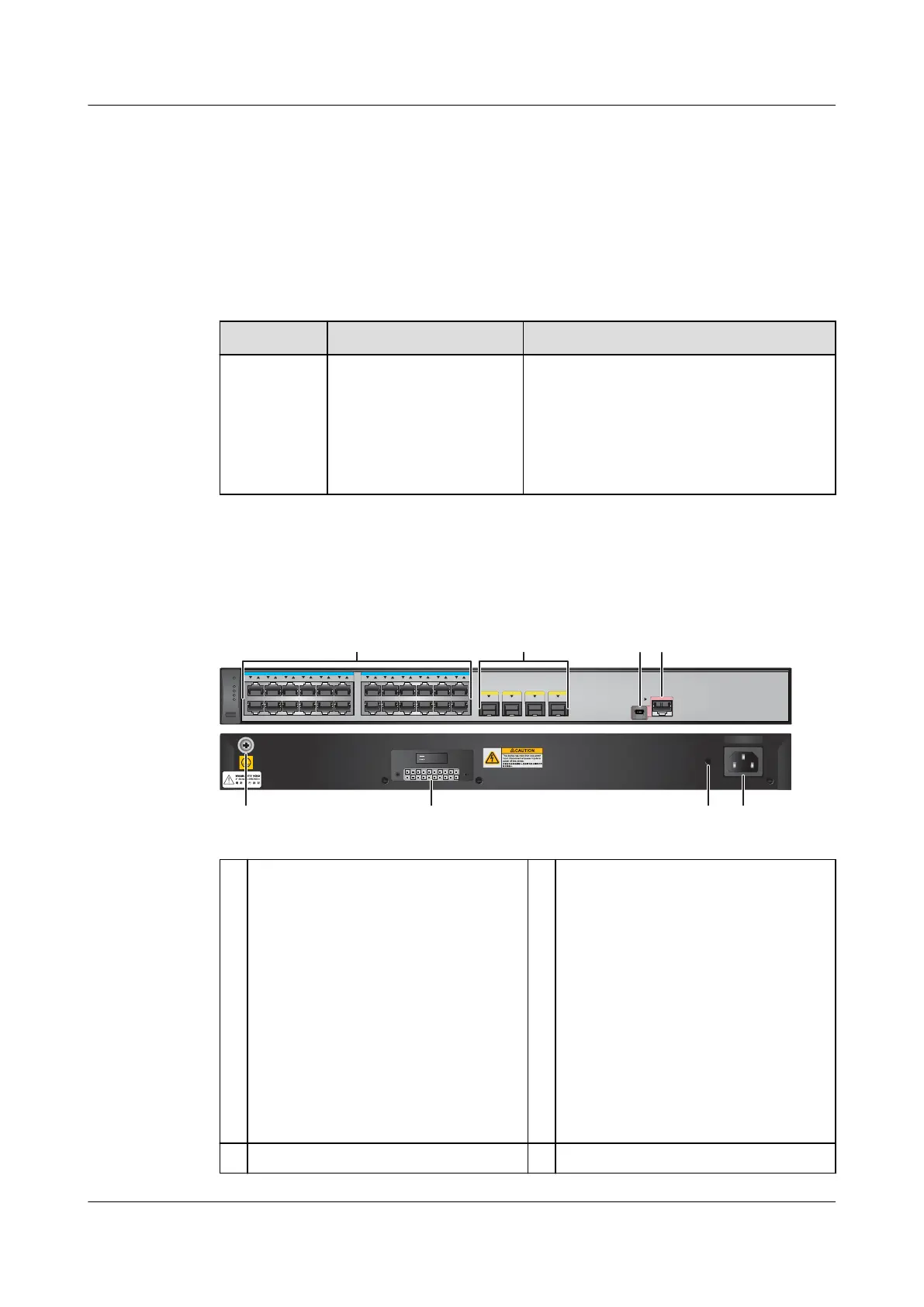

Figure 3-50 S5700S-28P-LI-AC appearance
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
21
22 23 24
CONSOLE
25 26 27
28
MODE
STCK
SPED
STAT
SYS
PWR
HUAWEI
S5700S-28P-LI-AC
~100-240V;50/60Hz;0.6A
+12V;2.5A
1234
56 78
1
Twenty-four 10/100/1000BASE-T ports 2 Four 1000BASE-X ports
Applicable modules and cables:
l GE optical module
l GE-CWDM optical module
l GE-DWDM optical module
l GE copper module (applicable in
V200R002C00 and later versions)
l 1 m and 10 m SFP+ copper cables
l 3 m and 10 m AOC cables
(applicable in V200R003C00 and
later versions)
3 One mini USB port 4 One console port
S5700 Series Ethernet Switches
Hardware Description
3 Chassis
Issue 24 (2016-08-12) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
215
