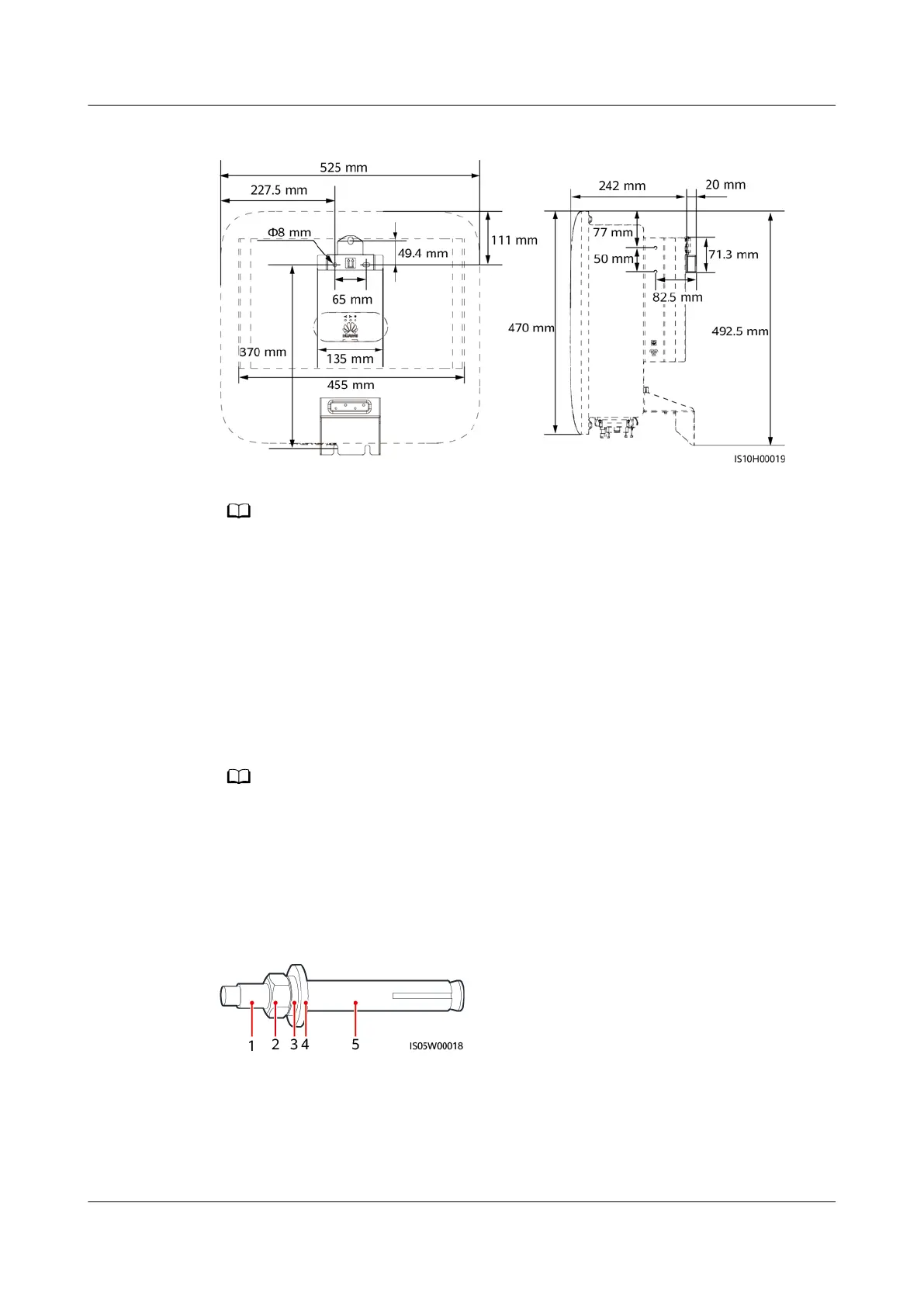

Figure 4-7 Mounting bracket dimensions
Two M6 screw holes are reserved on both left and right sides of the enclosure for installing
an awning.
4.5.1 Wall-mounted Installation
Procedure
Step 1 Determine the installation positions for drilling holes, and mark the positions
using a marker.
Step 2 Secure the mounting brackets.
● M6x60 expansion bolts are delivered with the SUN2000. If the length and amount of the
bolts do not meet installation requirements, prepare M6 stainless steel expansion bolts
by yourself.
● The expansion bolts delivered with the inverter are used for solid concrete walls. For
other types of walls, prepare bolts by yourself and ensure that the wall meets the load
bearing requirements of the inverter.
Figure 4-8 Expansion bolt composition
(1) Bolt
(2) Nut (3) Spring washer
(4) Flat washer (5) Expansion tube
SUN2000-(8KTL-20KTL)-M2
User Manual 4 Installation
Issue 11 (2023-02-07) Copyright © Huawei Technologies Co., Ltd. 31
