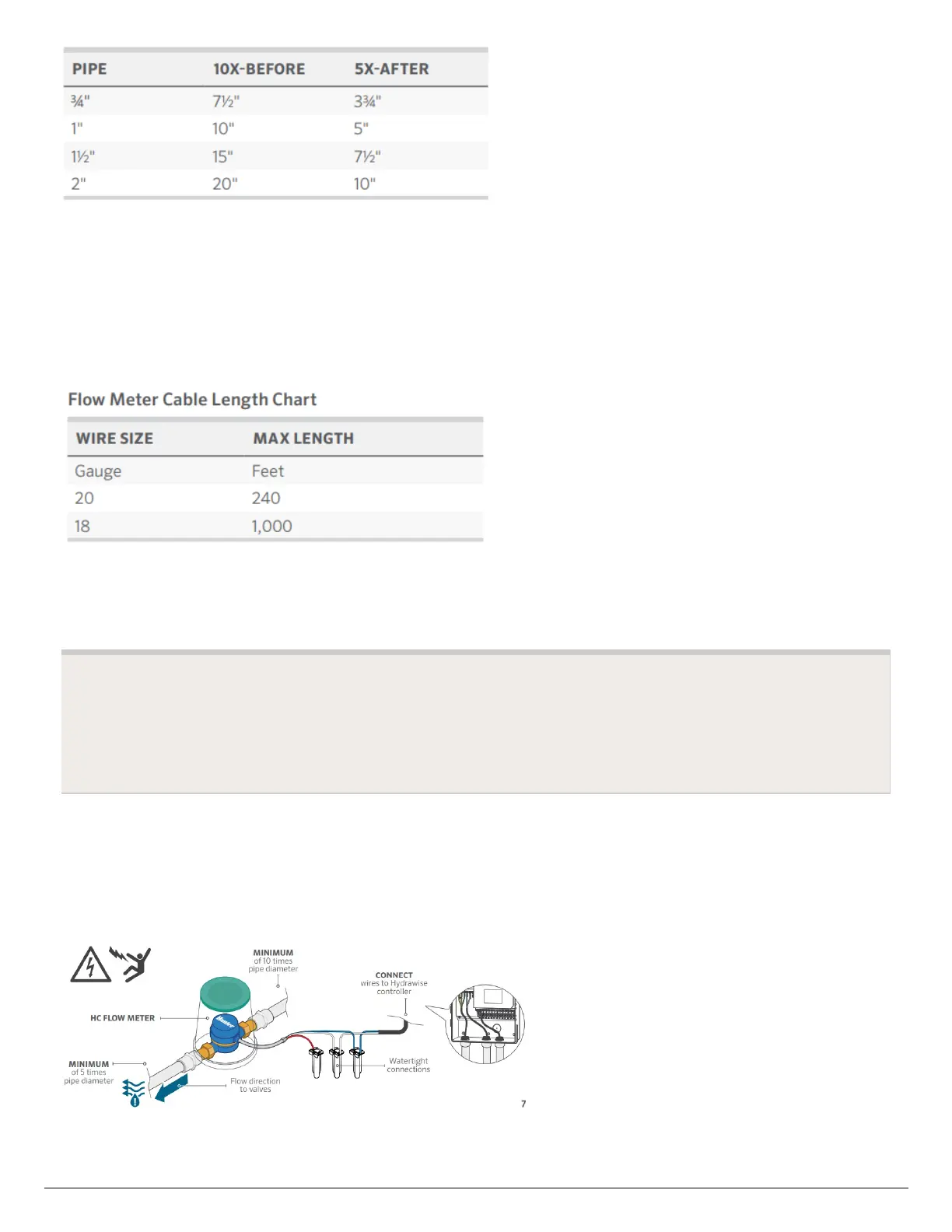

4. Cable (shielded direct-burial cable must be used): Two-wire cable is required. The
cable gauge is determined by the total length of cable between the controller and the flow
meter. The cable should consist of 2 dedicated wires and must not be in the same conduit
or cable bunch as the solenoid wires. Do not share the common wire of the solenoids with
the common of the sensors.
IMPORTANT: Shielded direct-burial cable is commonly available. Manufacturers include
Paige Electric and Regency Wire.
The following instructions assume you have already
installed your Hydrawise controller
1. Flowmeter body: The flow meter has a marking on the body indicating the direction of
water flow. Installation of the flow meter must be in the correct orientation with water
flowing in the direction of the arrow on the flow meter body. All HC Flow Meters must be
installed horizontally with the dial facing upward.
2. Connect flowmeter wire: Two-wire cable is required. The cable required to connect
To Next Page
