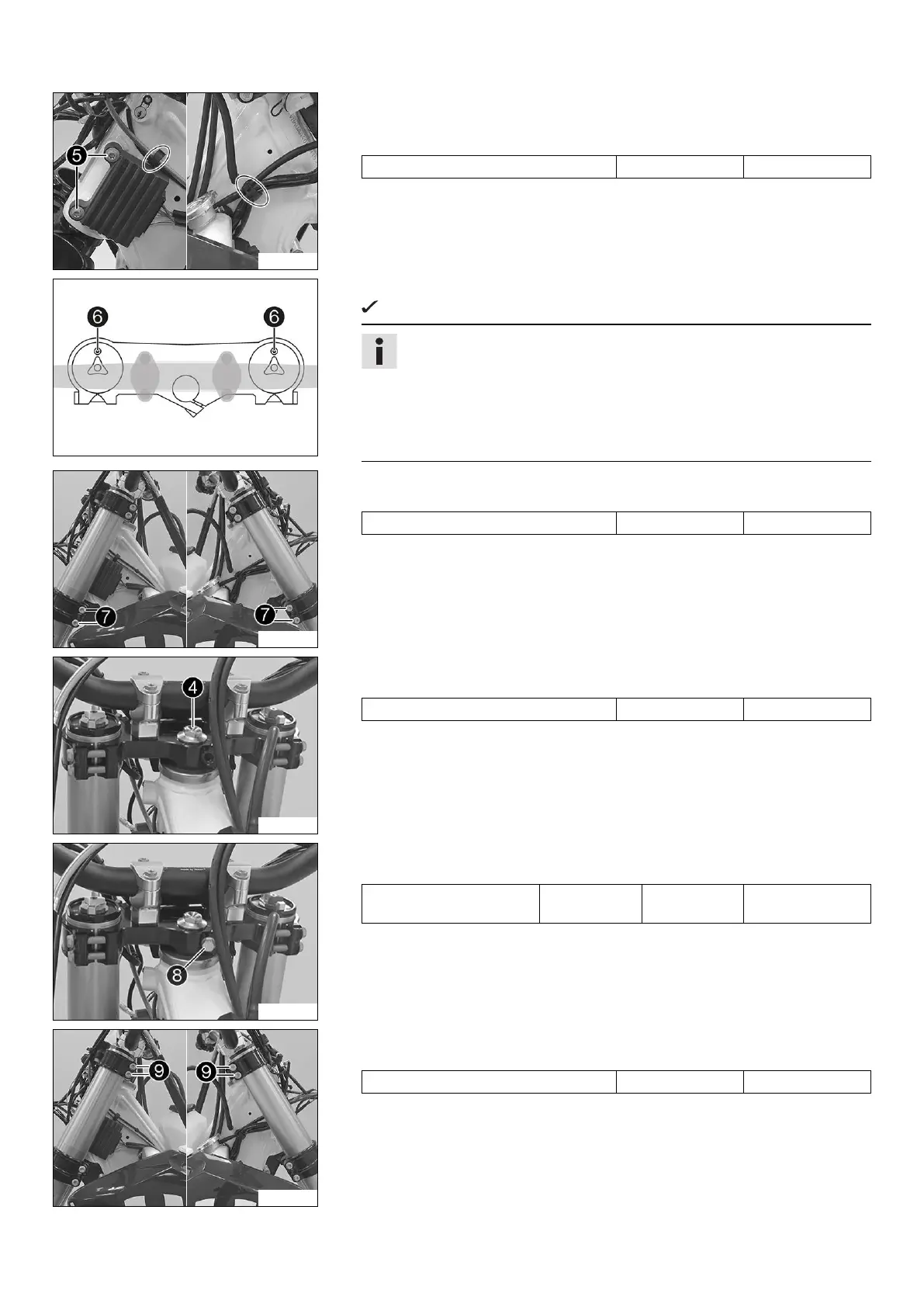

12 SERVICE WORK ON THE CHASSIS 49
F00373-10
– Secure wiring harness and clutch line with cable holder.
–
Position the voltage regulator, and mount and tighten screws

.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
– Secure the wiring harness with the cable holder in front of the right radiator.
H01672-10
– Position the fork legs.
Bleeder screws

are positioned toward the front.
Info
The rebound damping is located in right fork leg REB (red adjusting
screw). The compression damping is located in left fork leg COM (white
adjusting screw).
Grooves are milled into the side of the upper end of the fork legs. The sec-
ond milled groove (from the top) must be flush with the top edge of the
upper triple clamp.
F00318-11
–
Tighten screws

.
Guideline
Screw, bottom triple clamp M8 15 Nm (11.1 lbf ft)
F00281-10
–
Tighten screw

.
Guideline
Screw, top steering head M20x1.5 12 Nm (8.9 lbf ft)
F00281-11
–
Mount and tighten screw

.
Guideline
Screw, top steering stem M8 17 Nm
(12.5 lbf ft)
Loctite
®
243™
F00318-10
–
Tighten screws

.
Guideline
Screw, top triple clamp M8 17 Nm (12.5 lbf ft)

Husqvarna FE 450 Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	449.9 cc
Cooling System	Liquid cooled
Bore x Stroke	95 mm x 63.4 mm
Compression Ratio	12.75:1
Transmission	6-speed
Starter	Electric starter
Front Suspension	WP XPLOR-USD, Ø 48 mm
Fuel Capacity	8.5 liters
Front Tire	90/90-21
Rear Tire	140/80-18
Rear Suspension	WP XACT shock absorber with linkage
Front Brake	260 mm disc
Rear Brake	Disc brake 220 mm
Seat Height	950 mm
Ground Clearance	370 mm
Frame	Chromium-Molybdenum steel
