2.12 To disassemble/assemble the
hose reel, PW 350, PW 360

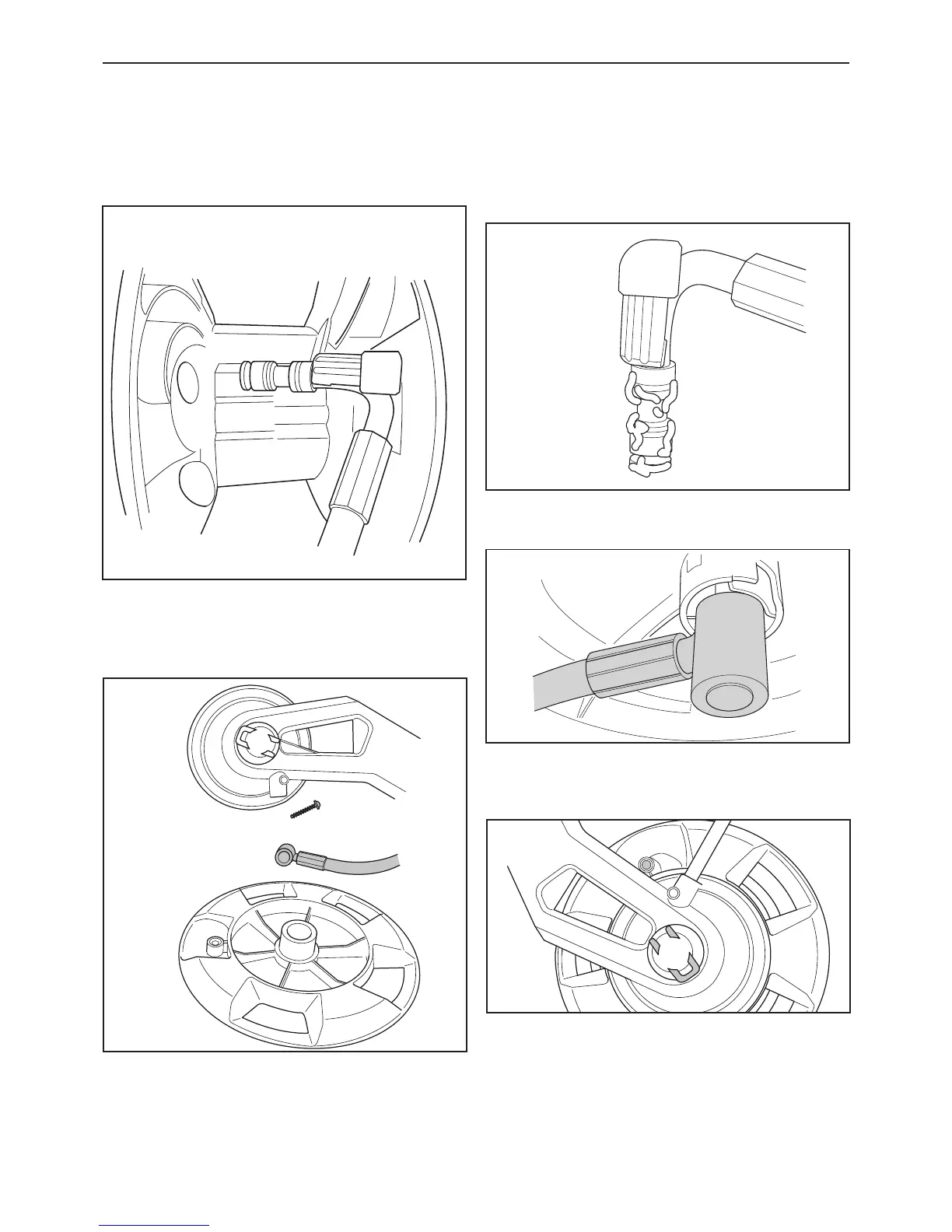

1. Remove the hose from the internal hose.
Remove the 2 torx TX20 screw (1 on each side) from the
aluminium hose guide.
Note: The length of the 2 screws are longer than all other
screws.
2.13 To assemble the hose reel,
PW 350, PW 360
1. Make sure that the hose nipple is correctly greased
before assembly.
2. Install the hose into the hose reel. Connect to the
brass part from the internal hose.
3. Install the hose reel holder. Make sure to install the
lock clamp correctly. It MUST be installed through both
the plastic hose reel holder AND the brass parts.
