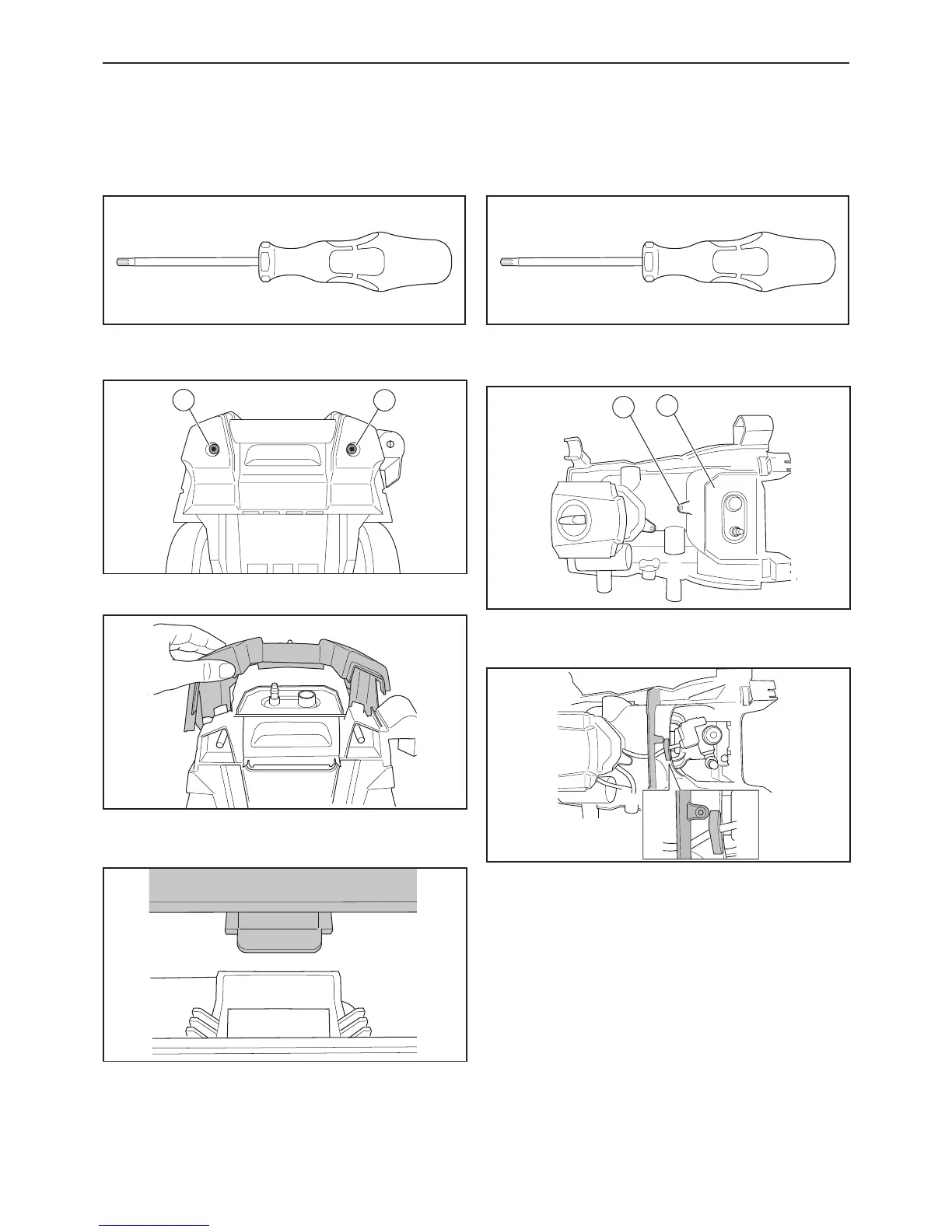

2.2 To disassemble/assemble the
front cabinet
1. Tools: Torx 20 screwdriver.
2. Remove the 2 torx TX20 screws (A) from the bottom.
Then remove the feet.
3.
A
A
Remove the cover by hand.
4. Assembly: Make sure that the 2 hooks in the top of the
cabinet are in the correct position.
2.3 To disassemble/assemble the
pump cover
1. Tools: Torx 20 screwdriver.
2. Remove 1 torx TX20 screw (A).
3. Remove the motor/pump unit oating cover (B).
4.
A
B
Assembly: Make sure that the foam and the air barrier
are installed correctly.
