26 ArcGlide THC Replacement Parts Field Service Bulletin 806560
2 – Replacing ArcGlide parts
10. Install the connectors from the switches and LED on the front cover to the lifter interface board:
11 . Replace the right side panel and shield of the slide enclosure and fasten the 4 screws. Tighten the screws to
1.12 N·m (10 lb·in.).
12. Replace the front panel of the slide enclosure and fasten the 4 screws. Tighten the screws to 1.13 N·m (10 lb·in.).
13. Replace the front cover of the motor enclosure and fasten the 4 screws. Tighten the screws to 1.13 N·m (10 lb·in.).

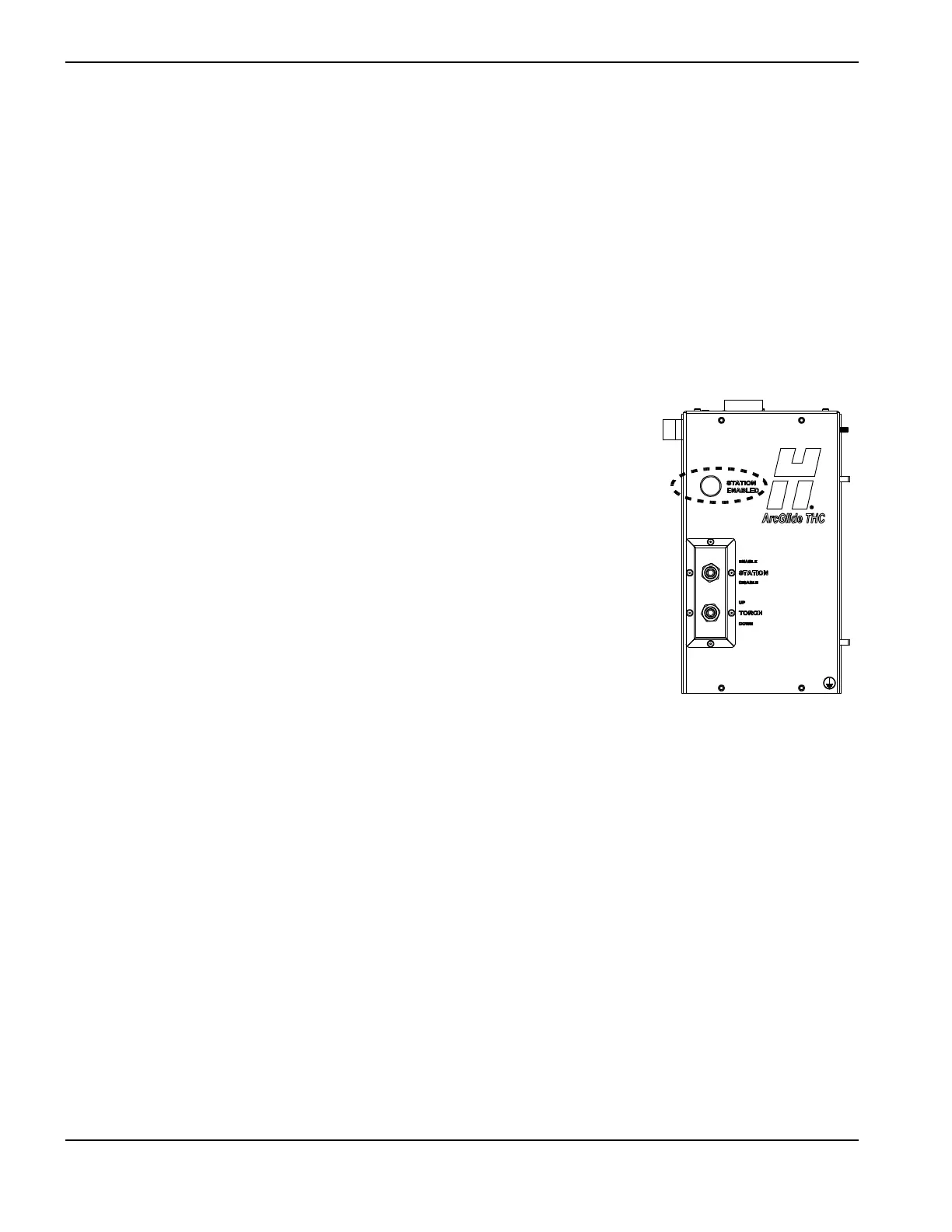

228588 – Station Enable 5 V LED
Follow the steps in Accessing lifter parts on page 12 to open the front cover of the
motor enclosure. Set aside all screws and other hardware for reuse.
To remove the Station Enable 5 V LED:
1. Re
move the nut and washer around the LED inside the front cover.
2. Pull the LED and cable through the front cover.
To replace the Station Enable 5 V LED:
1. Thread the cable and the new LED through the hole in the front cover.
2. Fasten the nut and washer around the LED on the front panel. Finger-tighten the nut
plus a 1/4 turn.
3. Replace the front cover of the motor enclosure and fasten the 4 screws. Tighten the screws to 1.13 N·m (10 lb·in.).
J7 Laser pointer
J8 Enable/disable switch
J9 Up/down switch
