Hypertherm Powermax 85 Operator's Manual

OPERATION
4-10 powermax 65/85 Operator Manual

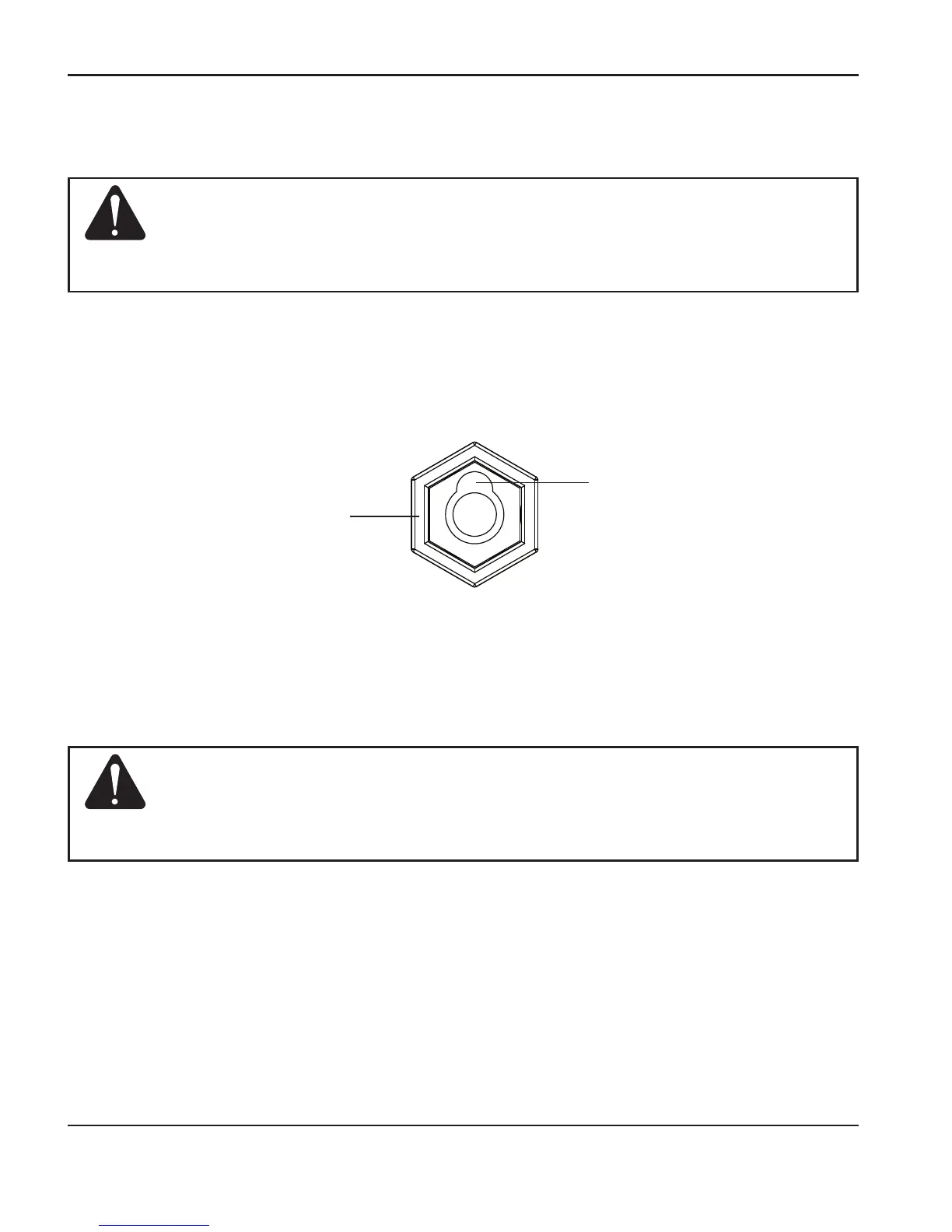

Work lead receptacle
on power supply
Keyed opening at
top of
receptacle
1. Insert the work lead connector into the receptacle on the front of the power supply.
ote:N The receptacle is keyed. Align the key on the work lead connector with the
opening at the top of the receptacle on the power supply.
aution:C Make sure you use a work lead that is appropriate for your
power supply. Use a 65A work lead with the Powermax65.
Use an 85A work lead with the Powermax85. The amperage is
marked near the rubber boot of the work lead connector.
2. Push the work lead connector all the way into the receptacle on the power supply and turn
clockwise, approximately 1/4 turn, until the connector is fully seated against the stop in order
to achieve an optimal electrical connection.
Attach the work lead to the power supply
aution:C Ensure the work lead is fully seated in the receptacle to
prevent overheating.
