H17
Charging Status
When charging the high voltage bat-
tery, the charge level can be checked
from outside the vehicle.

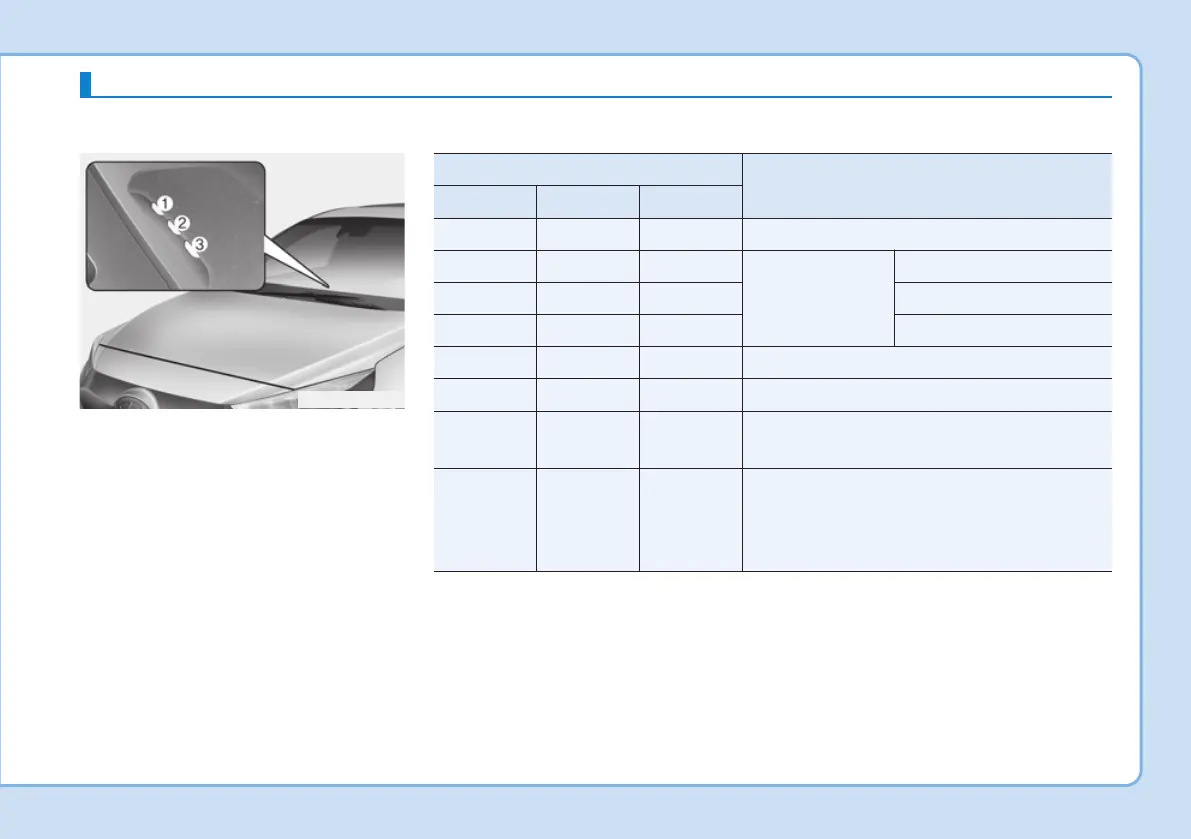

CHARGE INDICATOR LAMP FOR ELECTRIC VEHICLE
OAEEQ016025
Operation of Charging Indicator Lamp
Details
(1) (2) (3)
(OFF) (OFF) (OFF)
Not Charged
Blink
(OFF) (OFF)
Charging
0~33%
(ON)
Blink
(OFF)
34~66%
(ON) (ON)
Blink 67~99%
(ON) (ON) (ON)
Fully charged (100%)(turns OFF in 5 seconds)
Blink Blink Blink Error while charging
(OFF) (OFF)
Blink
Charging 12 V auxiliary battery or scheduled air
conditioner is operating
(OFF)
Blink
(OFF)
- Reserved charging is operating
(turns OFF after 3 minutes)
- Charging is temporarily interrupted
(e.g. power failure)
