IBM 5100 Maintenance Analysis Procedures

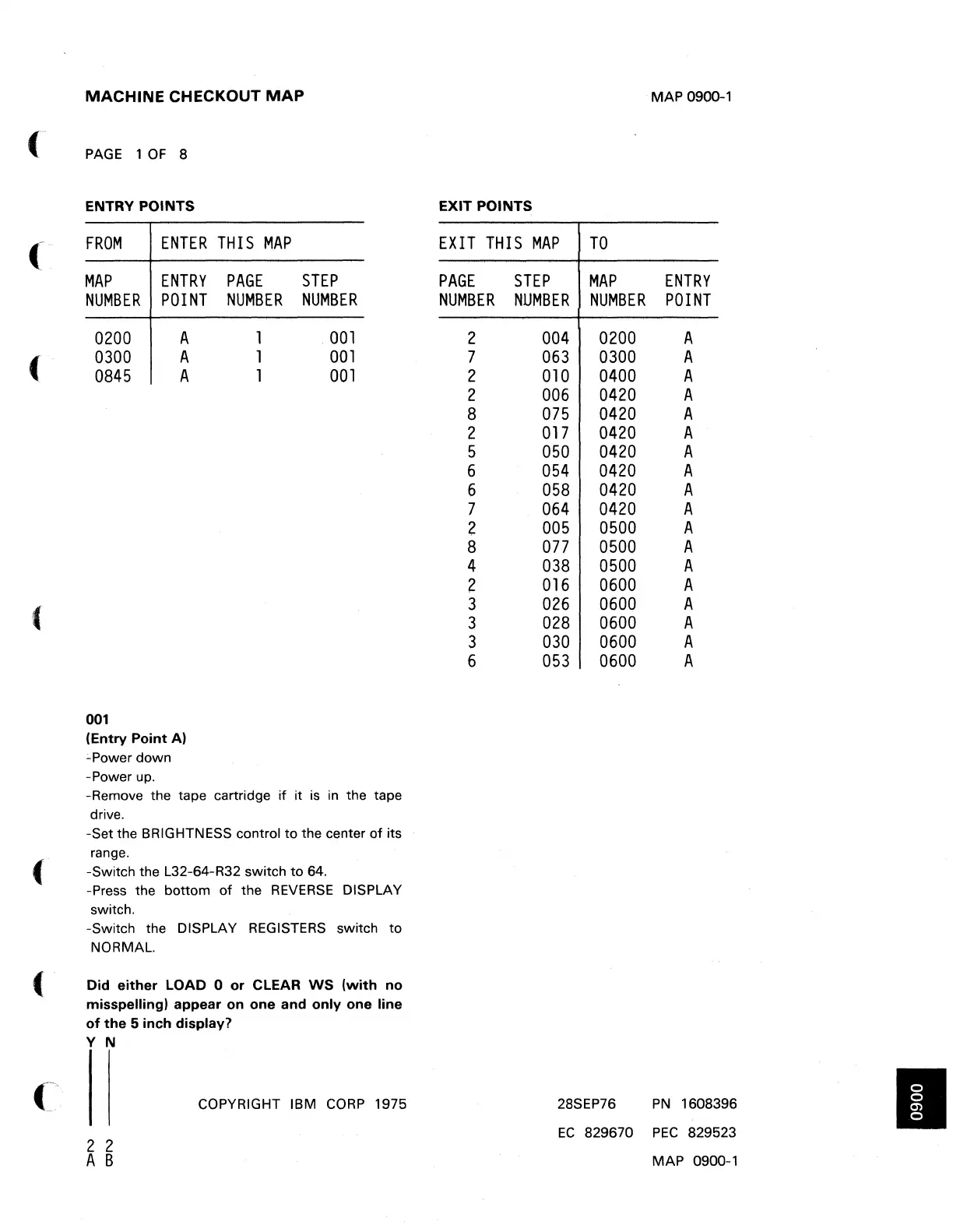

MACHINE CHECKOUT MAP
MAP 0900~1
(
PAGE 1 OF 8
ENTRY POINTS EXIT POINTS
(
FROM ENTER THIS MAP EXIT THIS MAP TO
MAP ENTRY
PAGE STEP PAGE
STEP MAP ENTRY
NUMBER POINT
NUMBER NUMBER
NUMBER NUMBER NUMBER
POINT
0200 A
1 001
2 004 0200 A
(
0300
A 1
001
7 063 0300 A
0845 A
1 001 2 010 0400 A
2 006 0420 A
8 075
0420
A
2
017 0420 A
5 050 0420 A
6 054 0420
A
6
058
0420
A
7 064 0420 A
2
005 0500 A
8
077 0500 A
4 038 0500 A
2
016 0600 A
(
3
026 0600 A
3
028
0600 A
3 030
0600 A
6 053
0600
A
001
(Entry Point A)
-Power down
-Power up.
-Remove the tape cartridge
if it is in the tape
drive.
-Set the BRIGHTNESS control
to the center of its
(
range.
-Switch the L32-64-R32 switch
to 64.
-Press the bottom
of the REVERSE DISPLAY
switch.
-Switch the DISPLAY REGISTERS switch to
NORMAl.
(
Did either LOAD 0 or CLEAR WS (with no
misspelling) appear on one and only one line
of the 5 inch display?
Y N
('
COPYRIGHT IBM CORP 1975
28SEP76
PN 1608396
•
EC 829670 Pj:C 829523
2 2
A B
MAP 0900~1
