Table 23. Parts listing for the DS3524 storage subsystem and EXP3524 storage enclosure
storage subsystem
Index Description
CRU part
number
(Tier 1)
CRU part
number
(Tier 2)
FRU part
number
1 DS3524 and EXP3524 bezel kit 69Y0213
2 DS3524 and EXP3524 midplane assembly 69Y0259
3 Filler panel, 2.5–inch drive 68Y8493
4 Hard disk drive, 2.5-inch 146 GB 15,000 rpm
SAS
49Y1845
Hard disk drive, 2.5-inch 200 GB SAS SSD 49Y2062
Hard disk drive, 2.5-inch 300 GB 10,000 rpm
6 Gbps SAS, T10 PI capable
90Y8999
Hard disk drive, 2.5-inch 300 GB 10,000 rpm
6 Gbps SAS SED, T10 PI capable
00W1168
Hard disk drive, 2.5-inch 400 GB SAS SSD 49Y2067
Hard disk drive, 3.5-inch 300 GB 15,000 rpm
SAS, T10 PI capable
81Y9913
4 Hard disk drive, 2.5-inch 500 GB 7,200 rpm
NL-SAS
49Y1855
Hard disk drive, 2.5-inch 600 GB 10,000 rpm
6 Gbps SAS, T10 PI capable
90Y9001
Hard disk drive, 2.5-inch 900 GB 10,000 rpm
6 Gbps SAS, T10 PI capable
00W1240
Hard disk drive, 2.5-inch 1000 GB 7,200 rpm
NL-SAS, T10 PI capable
81Y9875
5 2U rail kit 39R6550

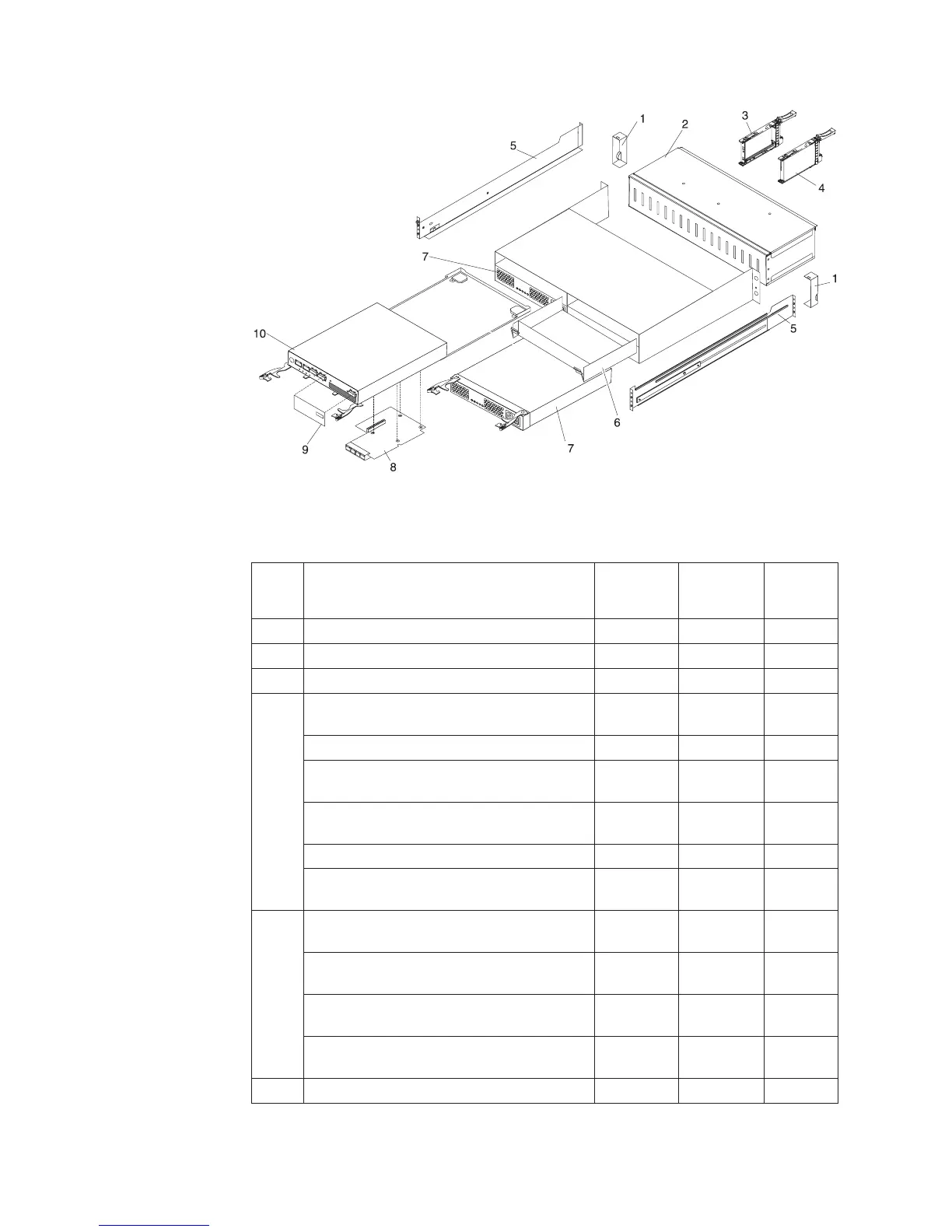

Figure 128. DS3524 storage subsystem and EXP3524 storage enclosure parts
178 IBM System Storage DS3500 and EXP3500 Storage Subsystem: Installation, User's, and Maintenance Guide
