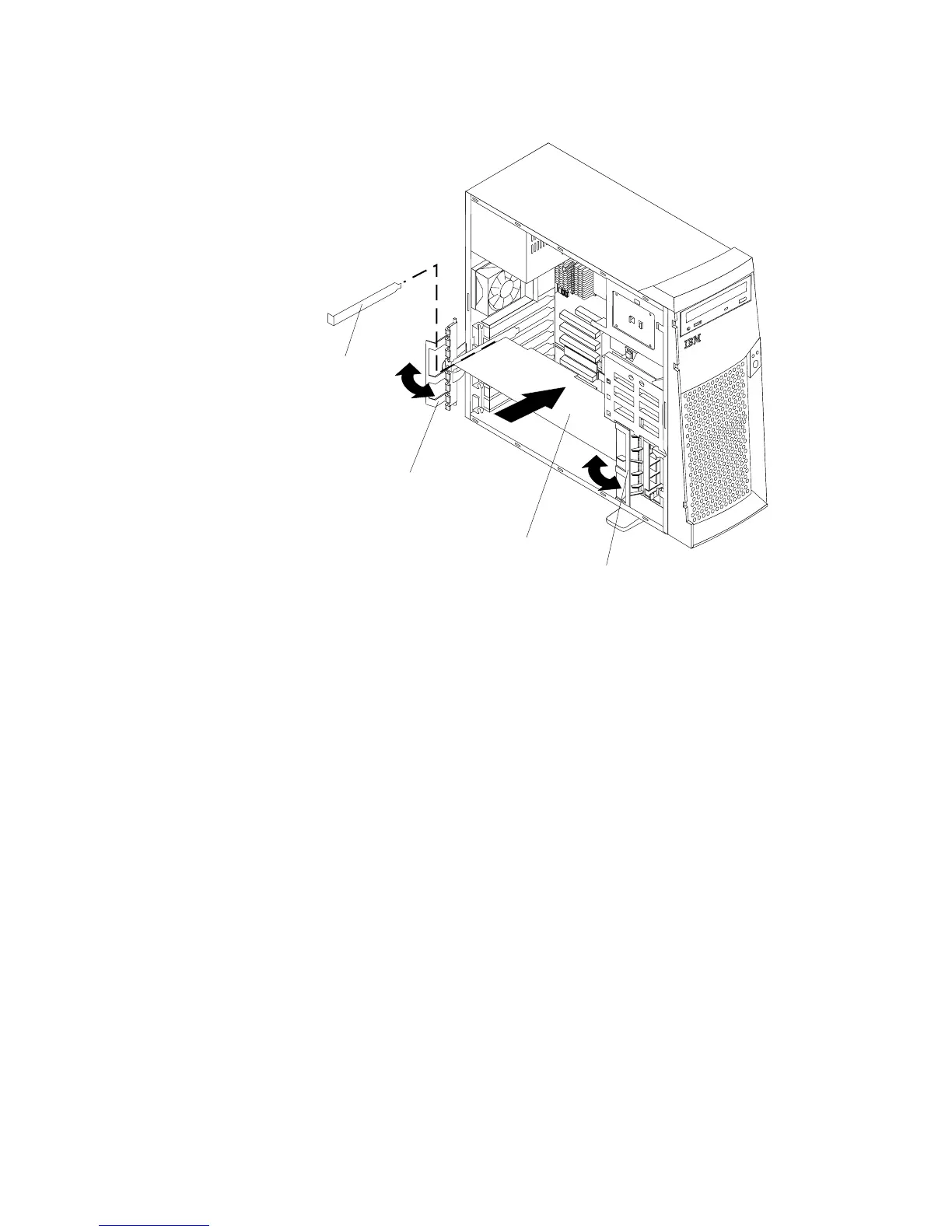

Installing an adapter
Rear
adapter
support
bracket
Expansion
slot cover
Front
adapter
support
bracket
Adapter
Do the following to install an adapter:
Attention: When you handle ESD-sensitive devices, take precautions to avoid
damage from static electricity. For details on handling these devices, see “Handling
static-sensitive devices” on page 30.
1. Review the information in “Safety Information” on page vii.
2. Turn off the computer and attached devices.
3. Disconnect all external cables and power cords; then, remove the side cover.
See “Removing the side cover” on page 30.
4. Determine which PCI slot you will use for the adapter.
Note: Check the instructions that come with the adapter for any requirements,
restrictions, or cabling instructions. It might be easier to route any
cables before you install the adapter.
5. For full-length adapters, rotate the rear adapter support bracket to the open
(unlocked) position and remove it from the computer. Rotate the front adapter
support bracket to the open position. If you are installing a smaller adapter,
remove only the rear support bracket.
6. Remove the expansion-slot cover. From the rear of the computer, press on the
slot cover. Grasp it and pull it out of the expansion slot. Store it in a safe place
for future use.
34 IntelliStation M Pro: User Guide
