4. If needed, repeat steps 2 on page 93 and 3 on page 94 to replace the other FIB.
5. Replace the narrow metal cover, which is shown in Figure 84, over the FIB
assemblies. The attachment screws are on each side of the chassis.
6. Place the enclosure back in the rack, as described in “Installing or replacing an
expansion enclosure in a rack: 2077-92F” on page 52
7. Replace each of the fan modules. Follow the procedure that is described in
“Installing or replacing a fan module: 2077-92F” on page 91.
8. Replace the drives, secondary expander modules, and other heavy FRUs that
were removed before the enclosure was removed from the rack.
9. Replace the top cover, as described in “Installing or replacing the top cover:
2077-92F” on page 71.
10. Reconnect power to the enclosure, as described in “Powering on the
expansion enclosure: 2077-92F” on page 131.
Removing an expansion enclosure from a rack: 2077-92F
You might need to slide the 2077-92F expansion enclosure out of the rack to apply
service. For some tasks, you might need to completely remove the expansion
enclosure from the rack.

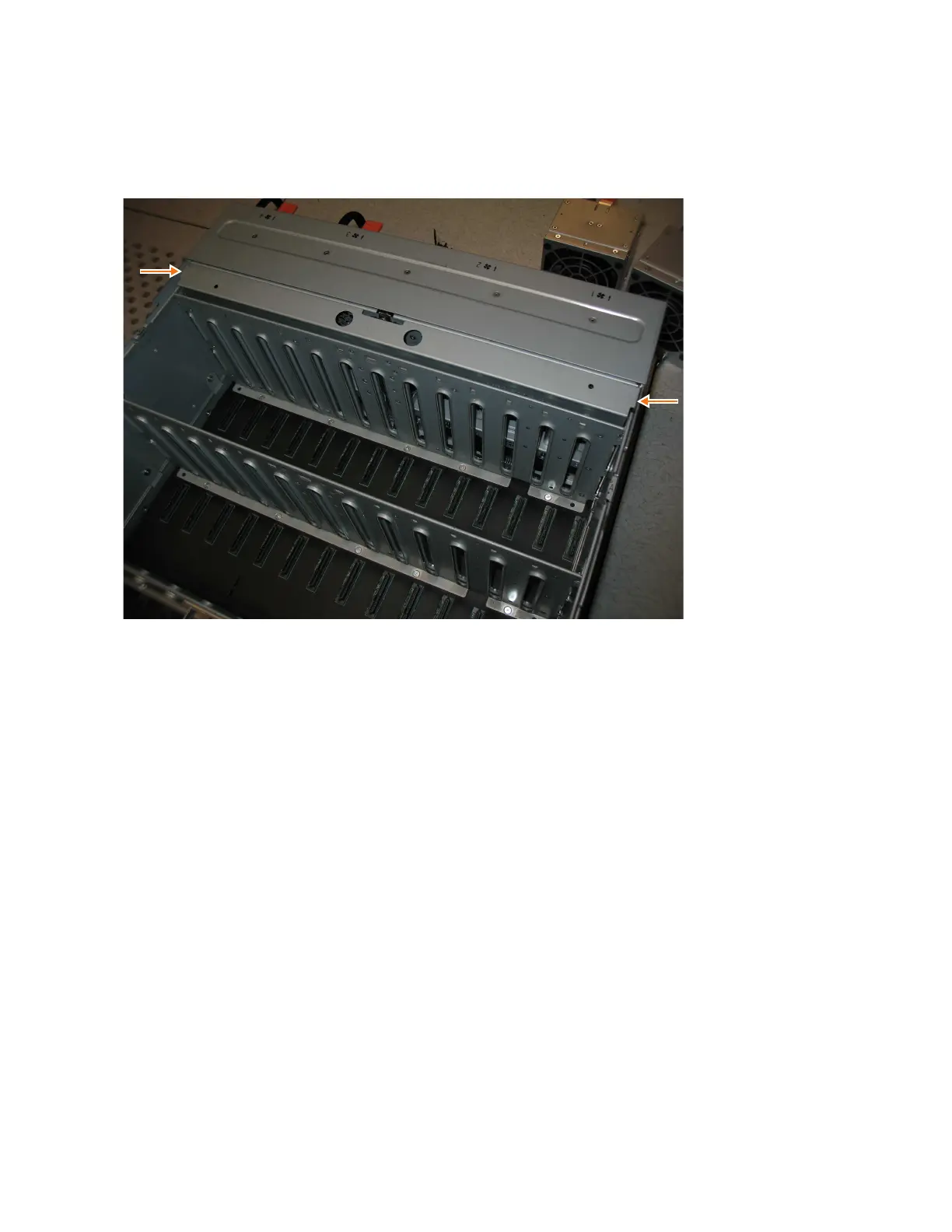

Figure 84. Replace the FIB cover
Chapter 2. Installing the system hardware 95
