File module
Figure 19 identifies the various ports and hardware in the front of the file module.
Each enclosure takes up the full 2U height in the rack. See the Storwize V7000
Unified Problem Determination Guide PDF on the CD for the full descriptions of the
hardware components.
v 1 File module label with MTM (machine type model) and S/N (serial number)
v 2 Boot drives
v 3 Video port
v 4 Advanced operator panel.
v 5 USB ports
v 6 DVD drive
v 1 Power-control button and power-on LED (green)
fab10009
1
2
1 LEDs
2 SAS ports

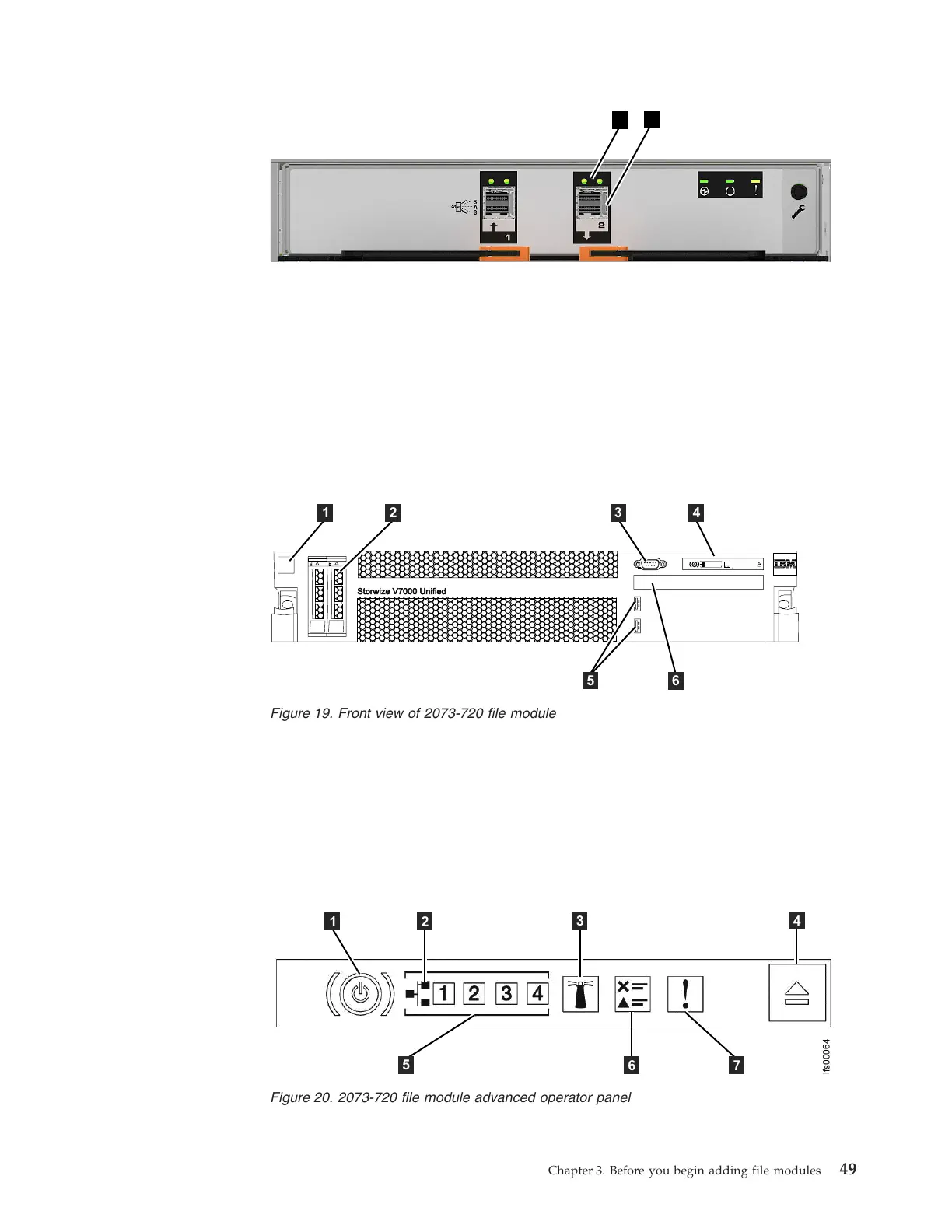

Figure 18. SAS ports and LEDs in rear of a Storwize V7000 Gen2 expansion canister
ifs00065
Storwize V7000 UnifiedStorwize V7000 Unified
1
2
3
4
5
6
Figure 19. Front view of 2073-720 file module
5
6
7
1
2
3
4
ifs00064
Figure 20. 2073-720 file module advanced operator panel
Chapter 3. Before you begin adding file modules 49
