5. If necessary, lift PCI riser-card assembly 1 or the 2.5-inch hot-swap rear hard
disk drive kit out of the chassis (see “Removing a PCI riser-card assembly” on
page 170 or “Removing the 2.5-inch hot-swap rear hard disk drive kit” on
page 148).
6. Locate the system battery connector on the system board.
a. Tilt the battery so that you can insert it into the socket on the side opposite
the battery clip.
b. Press the battery down into the socket until it clicks into place. Make sure
that the battery clip holds the battery securely.
c. If you removed a rubber cover from the battery holder, use your fingers to
install the battery cover on top of the battery connector.
7. Reinstall PCI riser-card assembly 1 (see “Replacing a PCI riser-card assembly”
on page 172 or “Replacing the 2.5-inch hot-swap rear hard disk drive kit” on
page 150), if necessary.

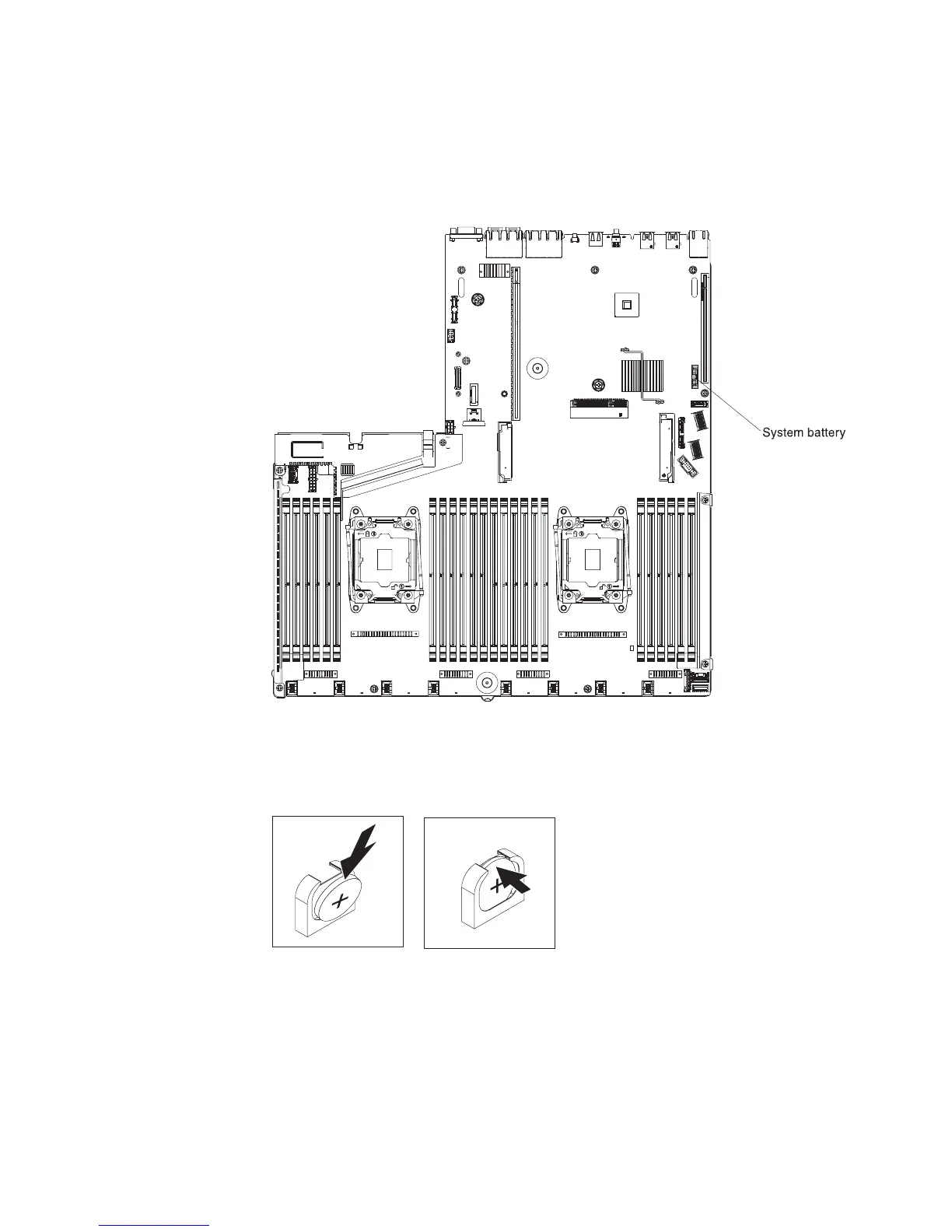

Figure 137. Location of system battery connector on system board
Figure 138. System battery installation
Chapter 5. Removing and replacing components 221

IBM System x3550 M5 Type 5463 Specifications

General

Form Factor	1U rack
Memory Slots	24 DIMM slots
Processor	Intel Xeon E5-2600 v3/v4 product family
Memory	Up to 1.5TB DDR4
Storage	Up to 8x 2.5" HDD/SSD or 4x 3.5" HDD
RAID Support	RAID 0, 1, 10
Network Interface	Four integrated Gigabit Ethernet ports (10/100/1000 Mbps)
Expansion Slots	Up to 3 PCIe 3.0 slots
Power Supply	Dual redundant hot-swap 550W, 750W, or 900W
Operating Systems Supported	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
