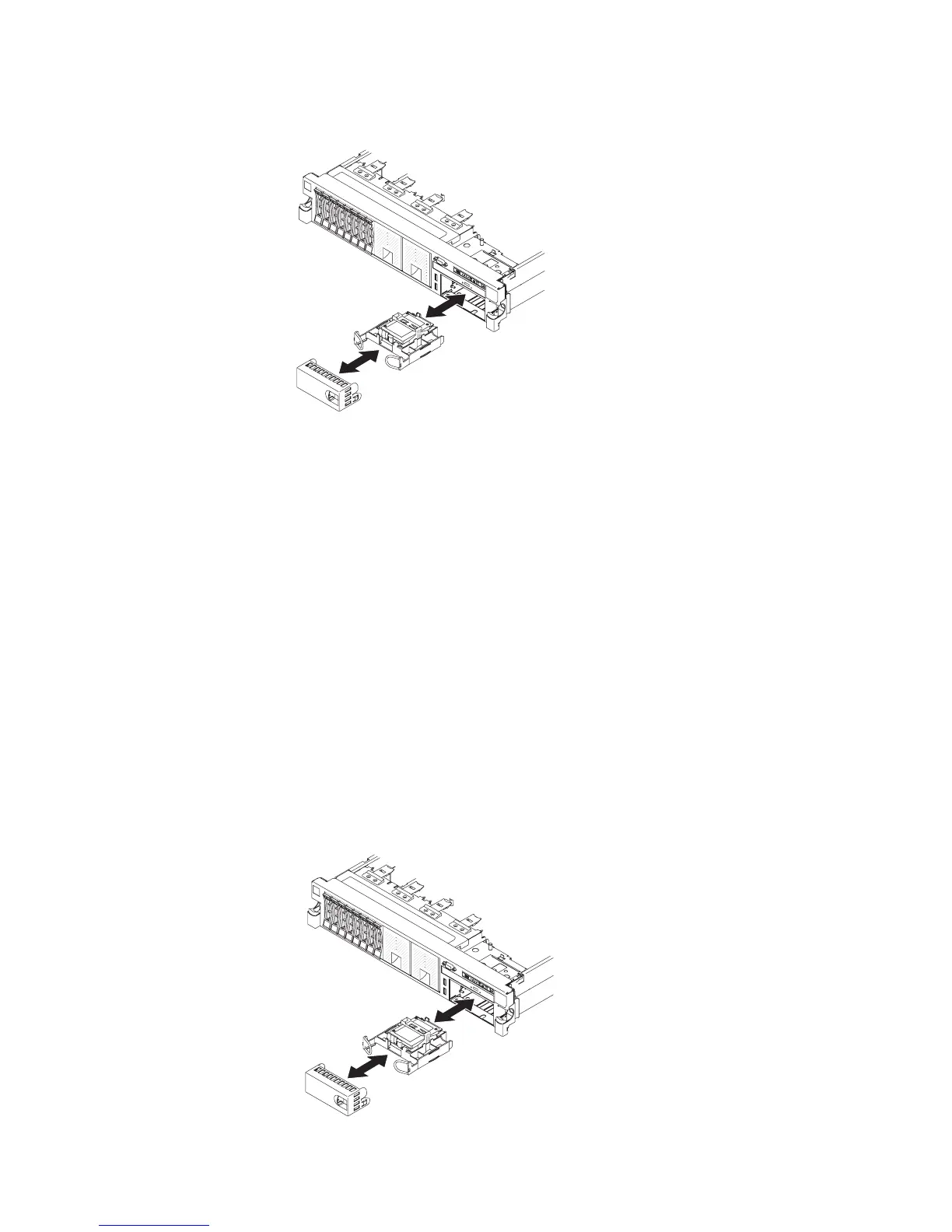

4. Remove the filler; then pull the loops of the battery holder toward each other;

then, pull the cage out of the drive bay approximately 25 mm (1 inch).

5. Disconnect the battery power cables.

6. Pull the drive completely out of the bay.

7. If you are not installing another drive in the bay, insert the filler panel into the

empty drive bay.

If you are instructed to return the optional ServeRAID SAS controller battery holder,

follow all packaging instructions, and use any packaging materials for shipping that

are supplied to you.

Installing an optional ServeRAID SAS controller battery holder

To install an optional ServeRAID SAS controller remote battery retention in the

server, complete the following steps:

1. Read the safety information that begins on page vii and “Installation guidelines”

on page 191.

2. Turn off the server and peripheral devices and disconnect all power cords and

external devices.

3. Remove the cover (see “Removing the cover” on page 205).

4. Install the optional ServeRAID adapter battery (see “Installing an optional

ServeRAID SAS controller battery on the remote battery holder” on page 272).

5. Grasp the handle and slide the holder most of the way into the bay.

6. Connect the battery power cables to the ServeRAID connector.

Chapter 5. Removing and replacing server components 209

IBM System x3650 M4 Type 7915 Specifications

General

Form Factor	2U Rack
Chipset	Intel C600 series chipset
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Processor	Up to two Intel Xeon E5-2600 series processors
Memory	Up to 768GB DDR3 (24 DIMM slots)
Storage	Up to 16 x 2.5" or 6 x 3.5" SAS/SATA HDDs or SSDs
RAID Support	RAID 0, 1, 10
Network	Four integrated Gigabit Ethernet ports
Power Supply	Up to two redundant hot-swap 550 W, 750 W, or 900 W power supplies
Expansion Slots	Up to 7 PCIe 3.0 slots
Storage Controller	ServeRAID M5110e
Management	Integrated Management Module (IMM) v2
