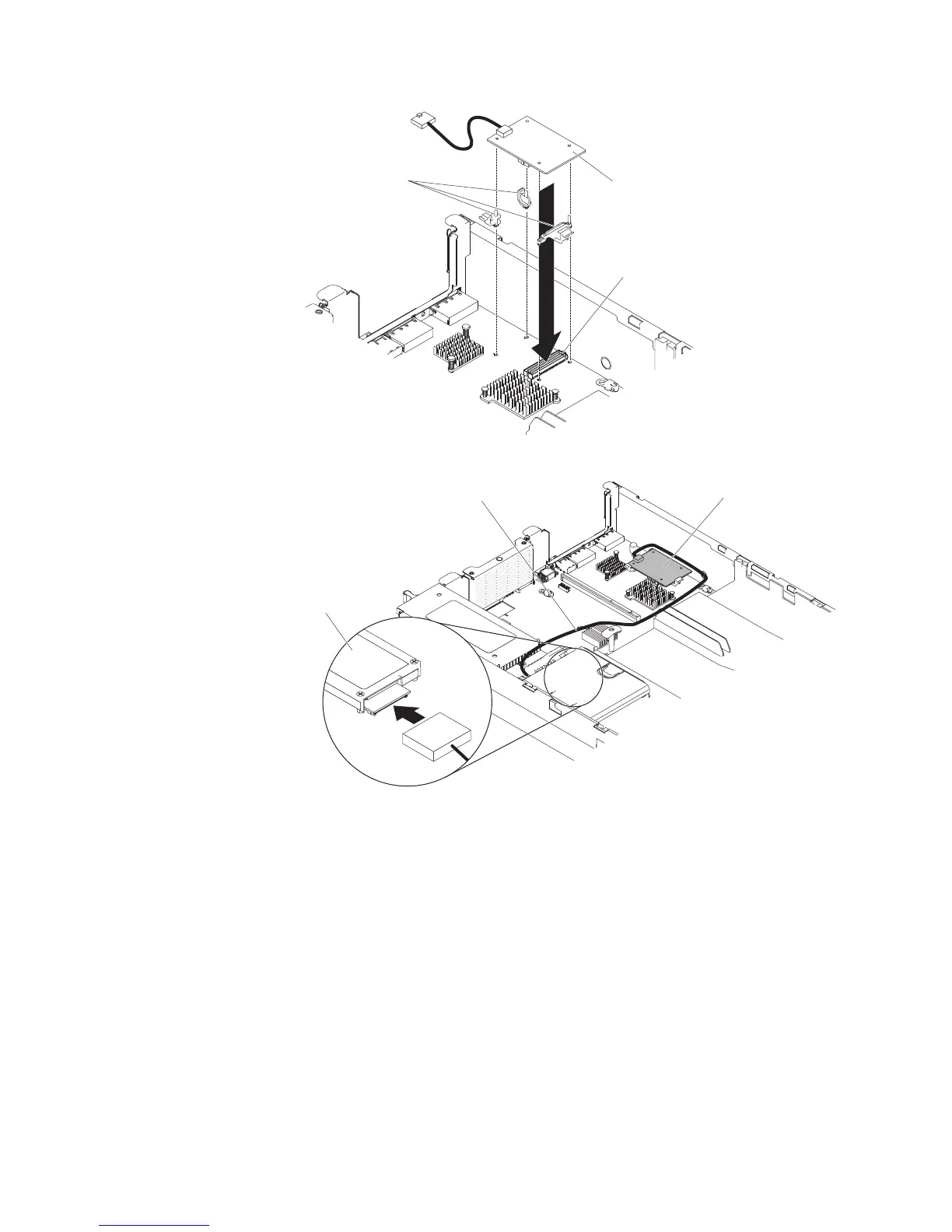

RAID upgrade
connector
Rententions
ServeRAID
upgrade adapter
6. Connect the other end of the supercap cable to the battery.
TMMB board
Battery
Battery cable
Note: Make sure the battery is seated properly (see “Installing a ServeRAID
SAS controller battery on the remote battery tray” on page 232).
7. Reconnect the power cord and any cables that you removed.
8. Install the cover “Installing the cover” on page 206
9. Slide the server into the rack.
10. Turn on the peripheral devices and the server.
Removing a remotely installed ServeRAID adapter battery
If a ServeRAID adapter battery is installed near the fan cage and you need to
replace it, complete the following steps:
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 191.
2. Turn off the server and peripheral devices and disconnect all power cords and
external cables.
3. Remove the cover (see “Removing the cover” on page 205).
Chapter 5. Removing and replacing server components 231
