Installing the air baffle

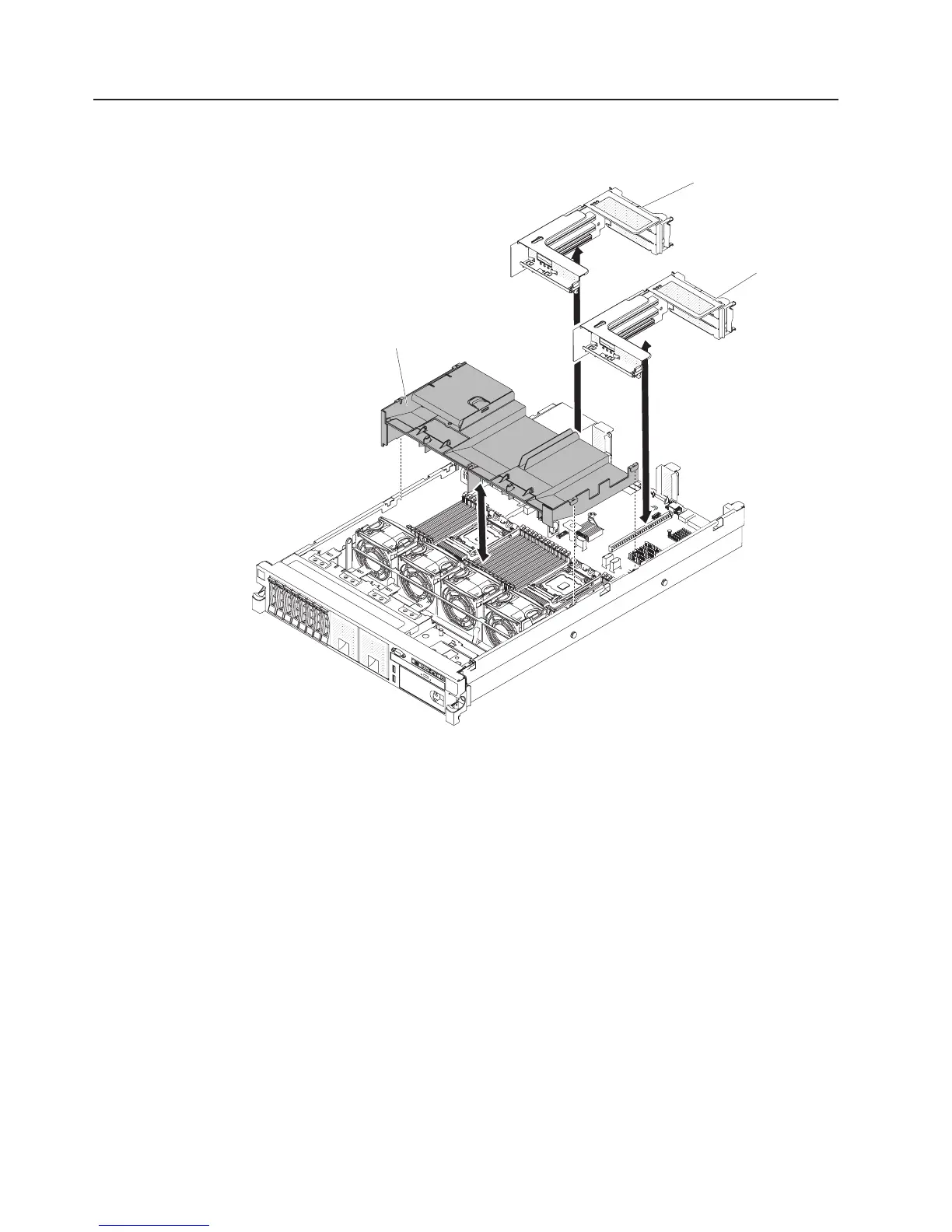

The following illustration shows how to install the air baffle.
PCI riser-card
assembly 2
PCI riser-card
assembly 1
Air baffle
To install the air baffle, complete the following steps:
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 40.
2. Make sure that the server and peripheral devices are turned off (see “Turning
off the server” on page 28) and that all power cords and external cables are
disconnected.
3. Remove the cover (see “Removing the cover” on page 54).
4. Make sure that PCI riser-card assembly 1 is removed if it is in long position and
sitting on the air baffle (see “Removing a PCI riser-card assembly” on page 55).
5. Align the air baffle with the two slots on both sides of chassis.
6. Lower the air baffle into place.
7. Install PCI riser-card assembly 1, if needed (see “Installing a PCI riser-card
assembly” on page 56.
Attention: For proper cooling and airflow, replace the air baffle before you turn on
the server. Operating the server with the air baffle removed might damage server
components.
58 System x3650 M4 Type 7915: Installation and User’s Guide

Table of Contents

Other manuals for IBM System x3650 M4 Type 7915

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the IBM System x3650 M4 Type 7915 and is the answer not in the manual?

IBM System x3650 M4 Type 7915 Specifications

General IconGeneral
Form Factor2U Rack
ChipsetIntel C600 series chipset
Operating System SupportMicrosoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
ProcessorUp to two Intel Xeon E5-2600 series processors
MemoryUp to 768GB DDR3 (24 DIMM slots)
StorageUp to 16 x 2.5" or 6 x 3.5" SAS/SATA HDDs or SSDs
RAID SupportRAID 0, 1, 10
NetworkFour integrated Gigabit Ethernet ports
Power SupplyUp to two redundant hot-swap 550 W, 750 W, or 900 W power supplies
Expansion SlotsUp to 7 PCIe 3.0 slots
Storage ControllerServeRAID M5110e
ManagementIntegrated Management Module (IMM) v2
