IBM x3550 M4 Type 7914 User Manual

Note: Support the server from the middle of the rear chassis when installing
PCI riser-card assembly 2.
9. Replace the cover (see “Replacing the cover” on page 209).
10. Slide the server into the rack.
11. Reconnect the power cords and any cables that you removed.
12. Turn on the peripheral devices and the server.
Removing the PCI riser-card bracket from the riser card
Use this information to remove the PCI riser-card bracket from the riser card.
About this task
Note: PCI riser-card brackets must be installed even if you do not install a riser
card.
To remove the PCI riser-card bracket from the riser card, complete the following
steps:
Procedure
1. Read the safety information that begins on “Safety” on page vii and
“Installation guidelines” on page 33.
2. Turn off the server and peripheral devices and disconnect all power cords.
3. Remove the cover (see “Removing the cover” on page 36).
4. Remove the PCI riser-card assembly (see “Removing a PCI riser-card assembly”
on page 244).
5. Remove the screws that attach the PCI riser card to the riser-card bracket.

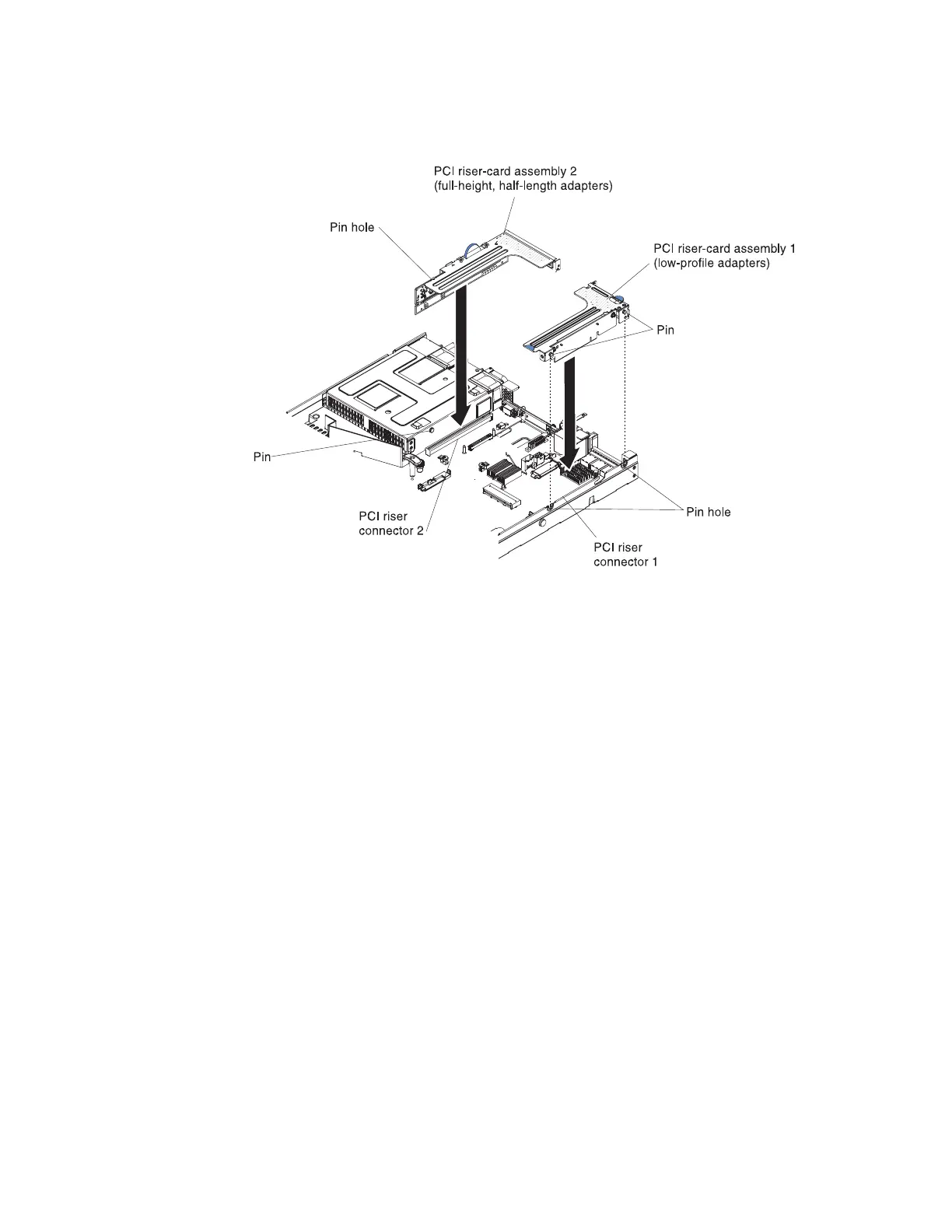

Figure 143. PCI riser-card assembly installation
246 IBM System x3550 M4 Type 7914: Installation and Service Guide
