Removing the bezel
Use this information to remove the bezel.
About this task
To remove the bezel, complete the following steps:
Procedure
1. Read the safety information that begins on “Safety” on page vii and
“Installation guidelines” on page 33.
2. Turn off the server and peripheral devices and disconnect the power cords and
all external cables, if necessary.
3. Remove the cover (see “Removing the cover” on page 36).
4. Remove the hard disk drives and filler panels from the hard disk drive bays
(see “Removing hot-swap hard disk drives” on page 218 or “Removing
simple-swap hard disk drives” on page 222).
5. Remove the screws from the bezel.
Note: Use the T8 Torx screwdriver that comes with the new bezel to remove
the bezel.
6. Pull the top of the bezel out slightly; then, rotate it downward until the tabs on
the bottom of the bezel disengages from the chassis and set it aside.

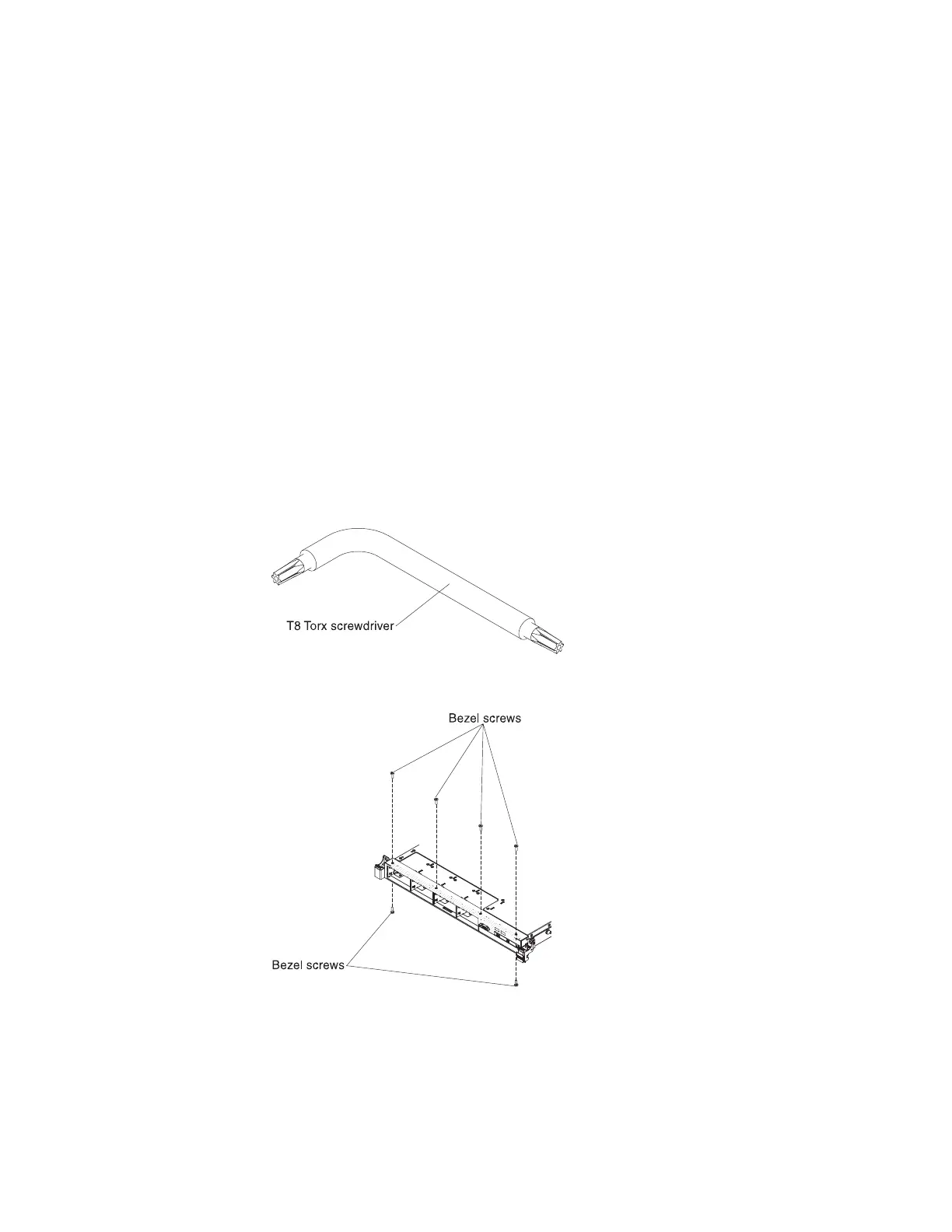

Figure 192. T8 Torx screwdriver
Figure 193. Bezel screws removal
Chapter 6. Removing and replacing components 299
