to the left until it is firmly seated.
The following illustration shows cable routing for the DVD cable:
Attention: Follow the optical drive cable routing as the illustration shows.
Make sure that the cable is not pinched and does not cover any connectors or
obstruct any components on the system board.

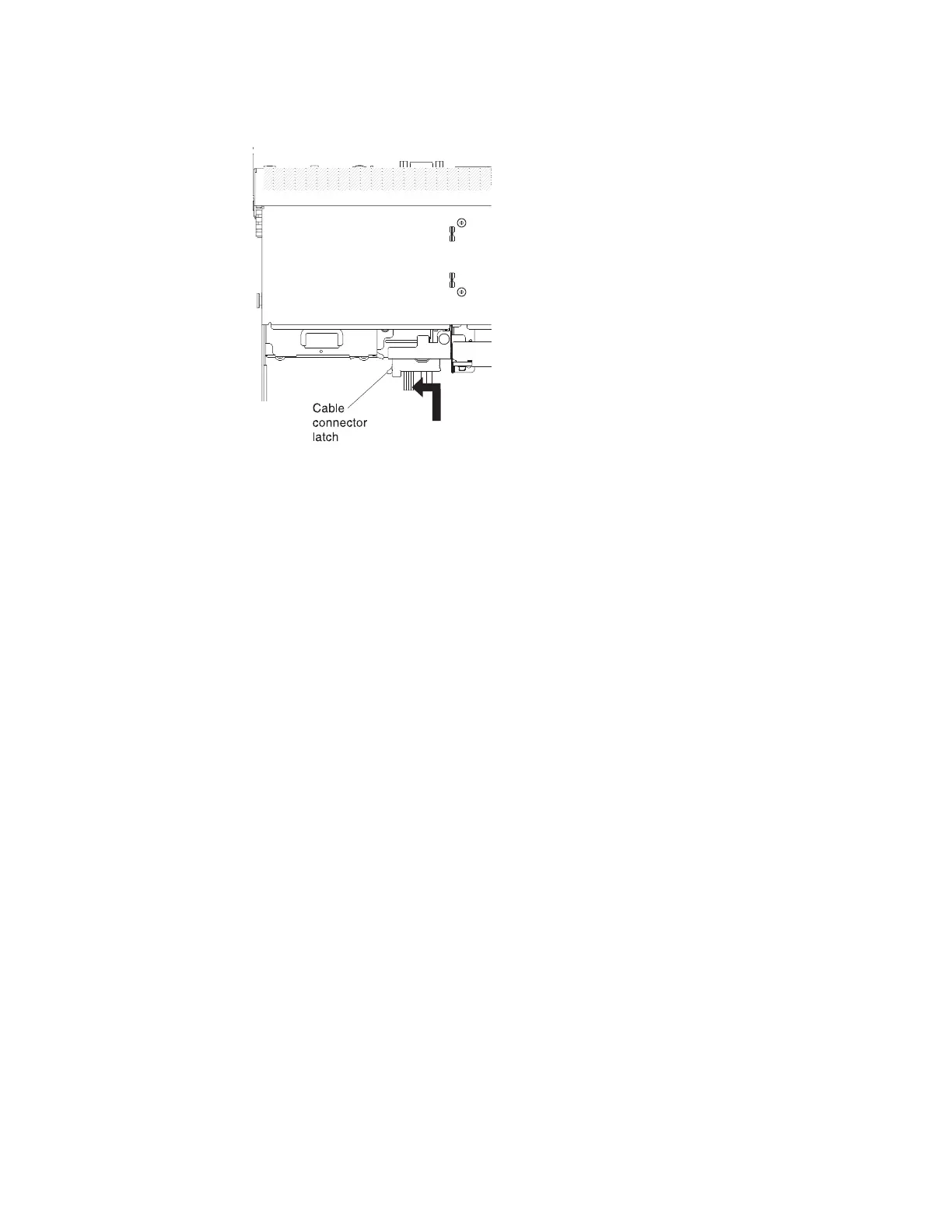

Figure 33. DVD drive cable latch
48 IBM System x3550 M4 Type 7914: Installation and Service Guide
