4. Attach the drive-retention clip to the side of the drive.
5. Slide the drive into the DVD drive bay until the drive clicks into place.
Results
If you have other devices to install or remove, do so now. Otherwise, go to
“Completing the installation.”
Completing the installation
Use this information to complete the installation.
To complete the installation, complete the following steps:
1. If you removed the microprocessor 2 air baffle, replace the microprocessor 2 air
baffle (see “Installing the microprocessor 2 air baffle” on page 49 ).
2. If you removed the DIMM air baffle, install it (see “Installing the DIMM air
baffle” on page 51).
3. If you removed either of the PCI riser-card assemblies, replace the riser-card
assemblies (see “Installing a PCI riser-card assembly” on page 47).
4. If you removed the server cover, replace it (see “Replacing the server cover” on
page 155).
5. Install the server in a rack. See the Rack Installation Instructions that come with
the server for complete rack installation and removal instructions.
6. To attach peripheral devices and connect the power cords, see “Connecting the
external cables” on page 155.

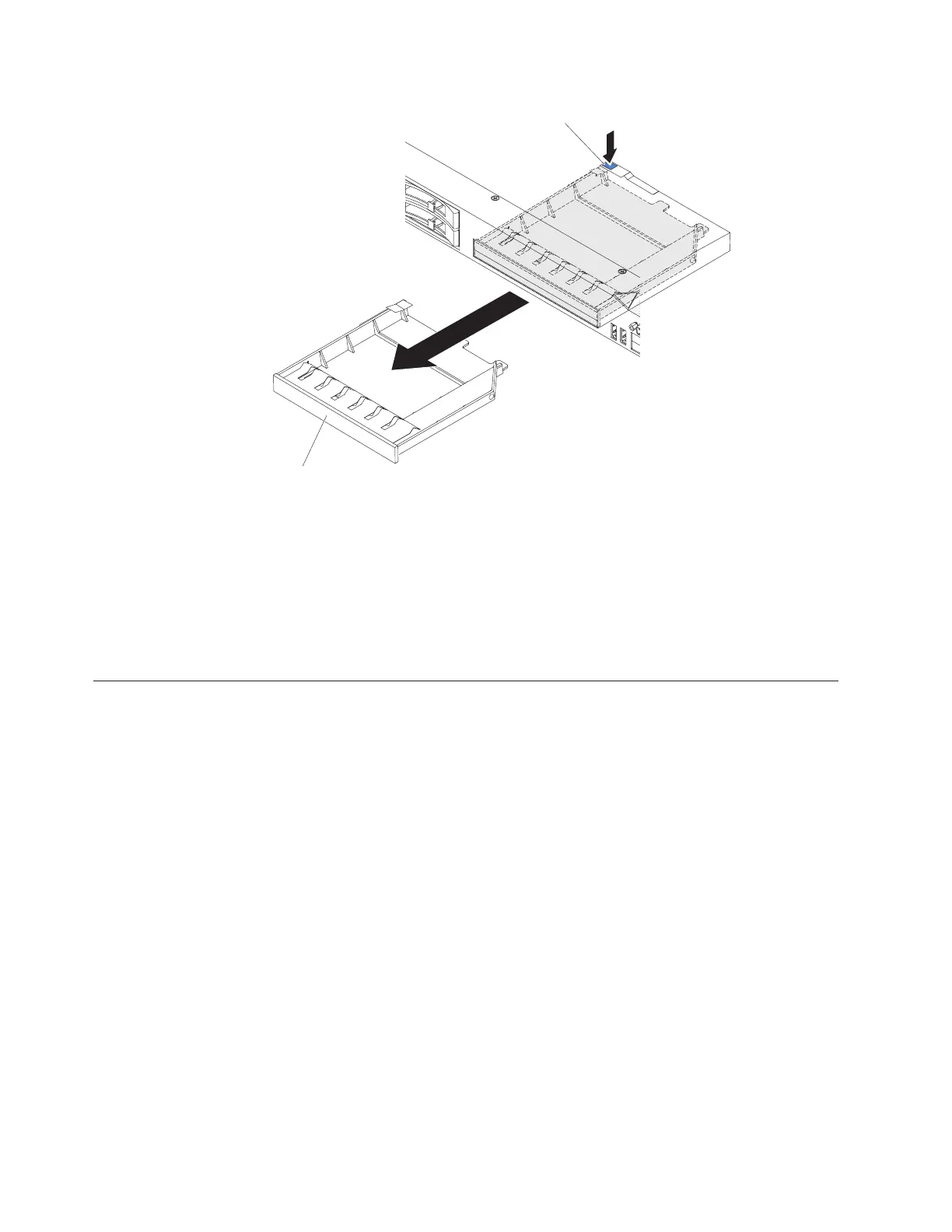

DVD drive filler panel
Release tab
Figure 166. Optical drive filler panel removal
154 System x3650 M3 Types 4255, 7945, and 7949: Installation and User’s Guide
