Removing the cover

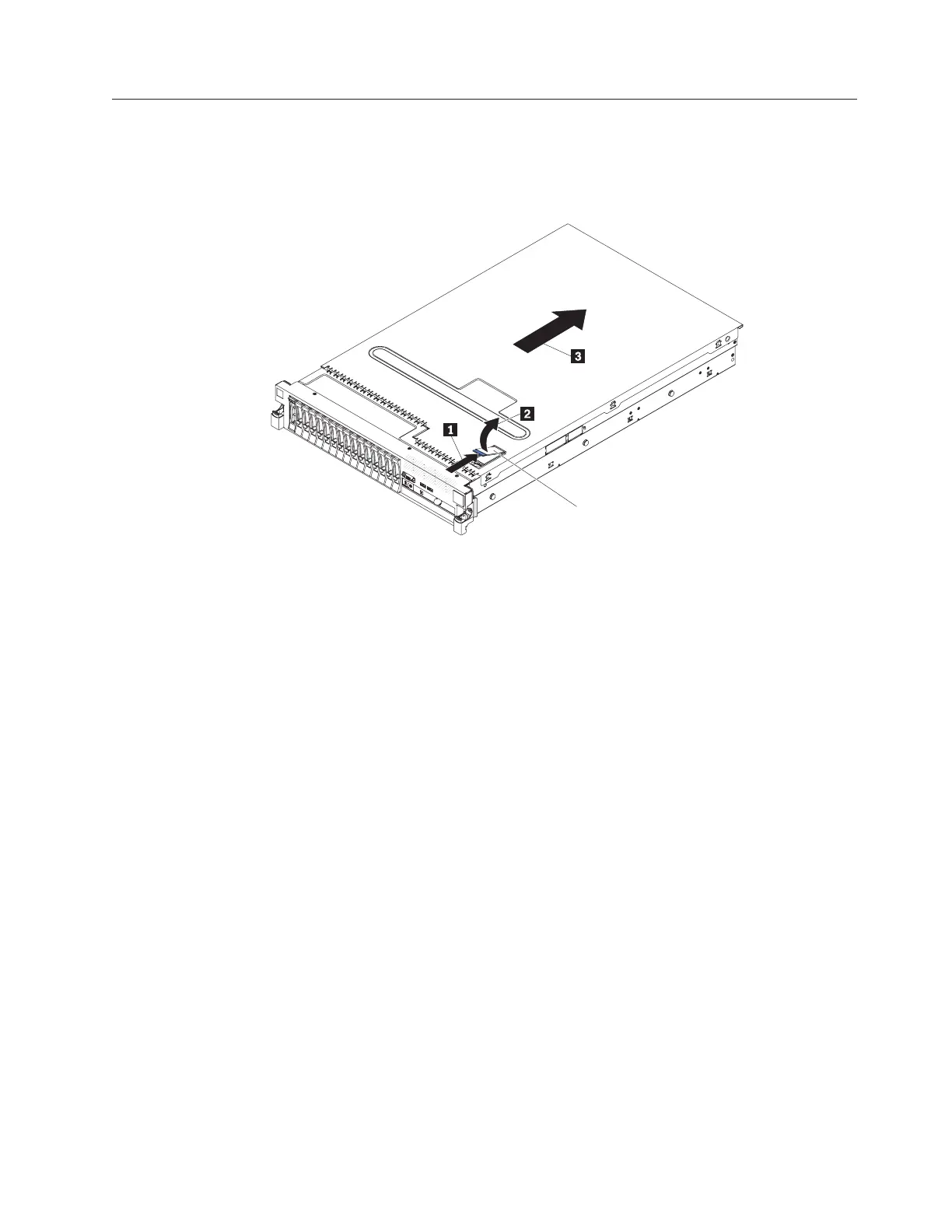

The following illustration shows how to remove the cover.
About this task
Important: Before you install optional hardware, make sure that the server is
working correctly. Start the server, and make sure that the operating system starts,
if an operating system is installed, or that a 19990305 error code is displayed,
indicating that an operating system was not found but the server is otherwise
working correctly. If the server is not working correctly, see the Problem
Determination and Service Guide for diagnostic information.
To remove the cover, complete the following steps:
1. Read the safety information that begins on page “Safety” on page v and
“Installation guidelines” on page 37.
2. If you are planning to view the error LEDs that are on the system board and
components, leave the server connected to power and go directly to step 4.
3. If you are planning to install or remove a microprocessor, memory module, PCI
adapter, battery, or other non-hot-swap optional device, turn off the server and
all attached devices and disconnect all external cables and power cords (see
“Turning off the server” on page 23).
4. Press down on the left and right side latches and slide the server out of the
rack enclosure until both slide rails lock.
Note: You can reach the cables on the rear of the server when the server is in
the locked position.
5. Press the blue latch 1 on the end of the cover-release latch and lift the
cover-release latch 2. Slide the cover toward the rear 3 and lift the cover off
the server. Set the cover aside.
Attention: For proper cooling and airflow and to avoid damaging server
components, replace the cover before you turn on the server. If you operate the
server for extended periods of time (over 30 minutes) with the cover removed, the
IMM turns off the server.
Cover-release
latch
Figure 30. Cover removal
Chapter 2. Installing optional devices 45
