4 - 9
ADJUSTMENT ITEM
TRANSCEIVER'S
CONDITION
OPERATION
MEASURE
POINT
ADJUST
POINT
VALUE
REFERENCE
FREQUENCY
1 – • Connect a frequency counter to
[ANT1], through an attenuator.
–– –
2 • Display: "REF OSC"
• Transmitting
• Push [F-5]. (Automatically starts
to transmit.)
[ANT1] [MAIN DIAL] 29.999000 MHz
(±30 Hz)
Push [F-5].
Automatically returns to the reference adjustment menu.
Push [MENU] to return to the main adjustment menu (Page 4-6).
¤

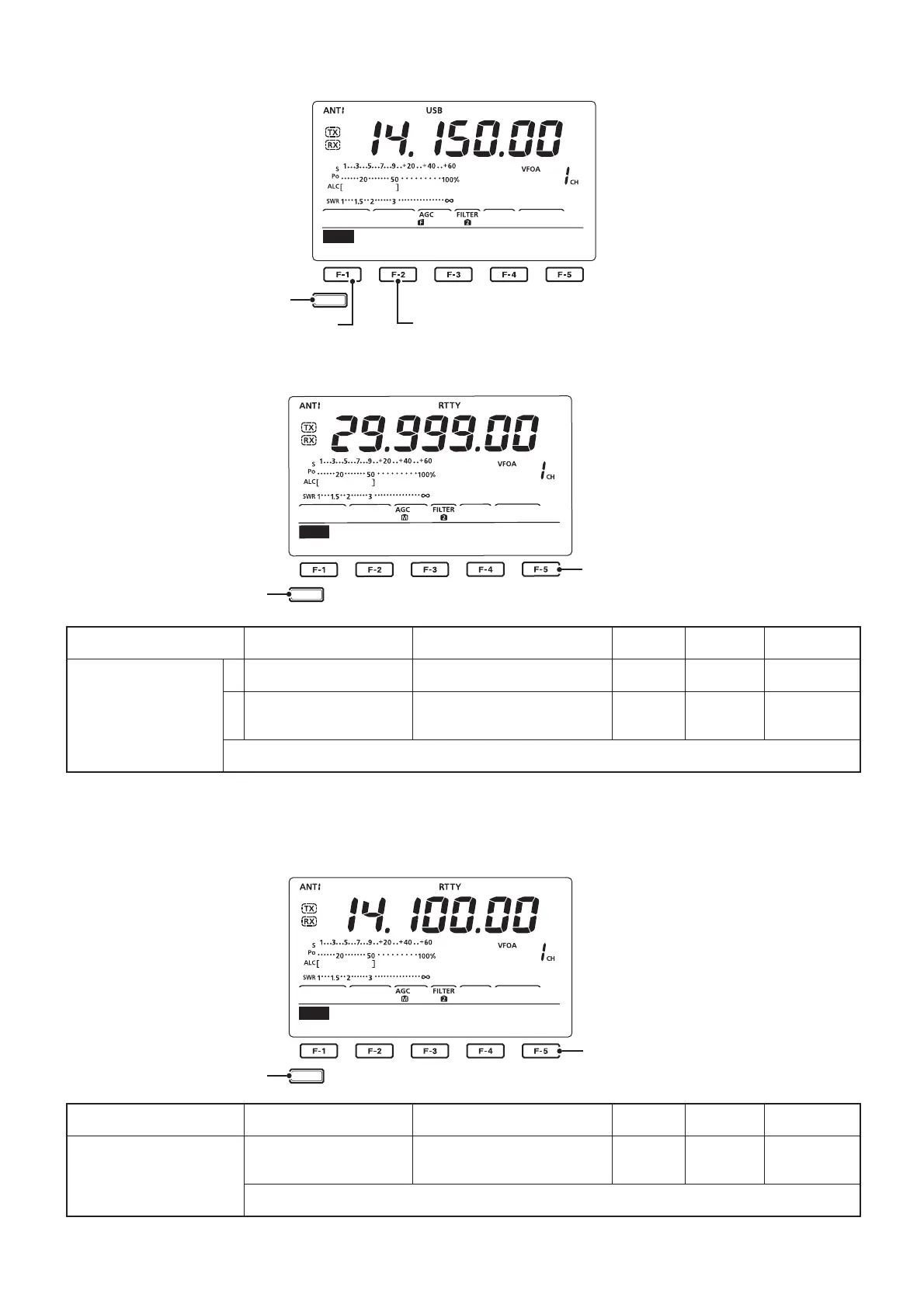

REFERENCE ADJUSTMENTS
• APC REFERENCE ADJUSTMENT
• REFERENCE FREQUENCY ADJUSTMENT
ADJUSTMENT ITEM
TRANSCEIVER'S
CONDITION
OPERATION
MEASURE
POINT
ADJUST
POINT
VALUE
ID APC VERIFICATION • Display: "IdAPC Check"
• Transmitting
• Push [F-5]. (Automatically starts
to transmit.)
– – Push [F-5].
(Beeps sound
1 sec. later)
Automatically returns to the reference adjustment menu.
Push [MENU] to return to the main adjustment menu (Page 4-6).
MENU
REF APC VCC
REF
Reterns to the previous screen.
Select the reference frequency adjustment.
Select the APC reference adjustment.
MENU
REF
OSC
SET
REF
Reterns to the previous screen.
Stores the value and move to the next item.
MENU
IdAPC
Check
SET
APC
Reterns to the previous screen.
Stores the value and move to the next item.
• Reference adjustment menu.
To Next Page
