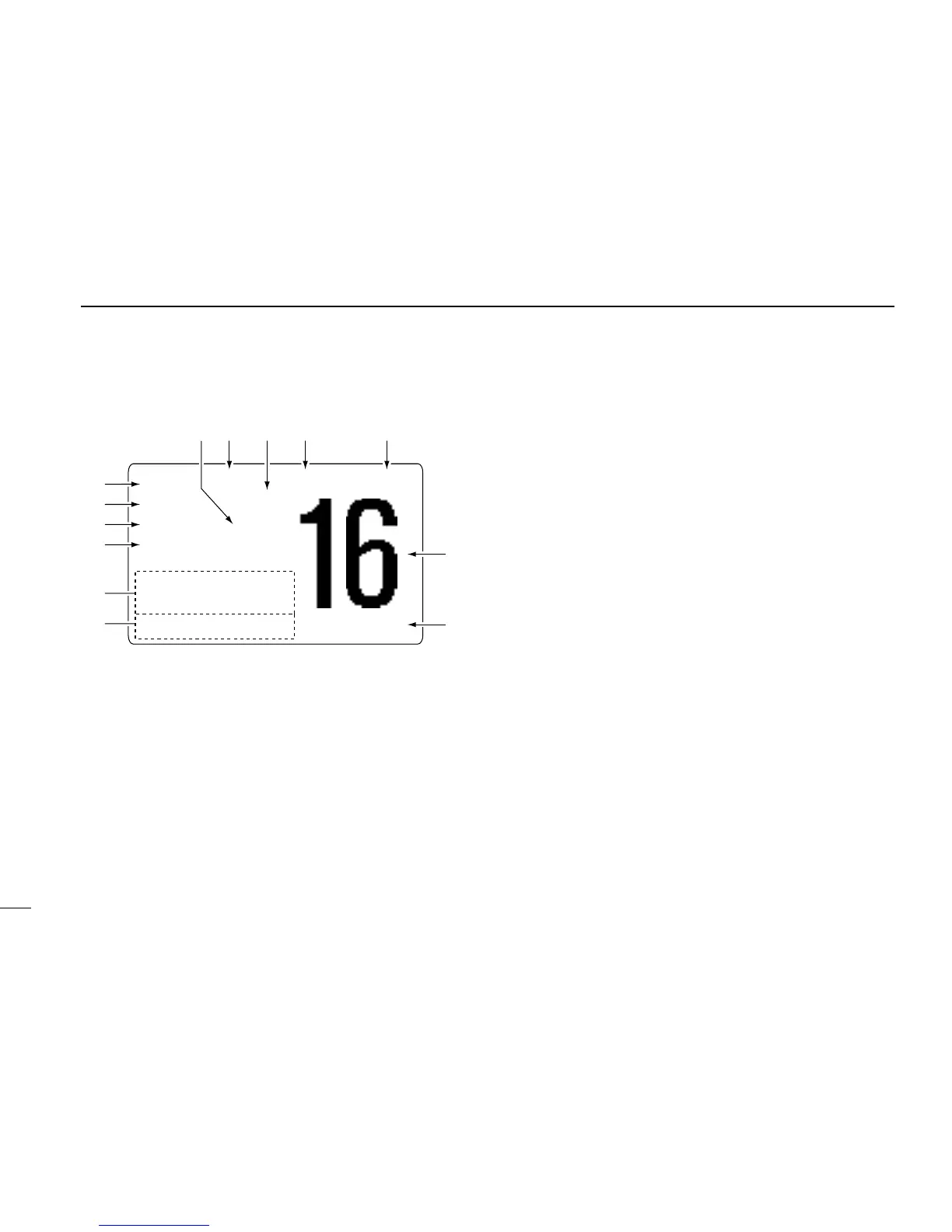

■ Function display
q BUSY/TRANSMIT INDICATOR (p. 10)
➥ “BUSY” appears when receiving a signal or when the
squelch opens.
➥ “TX” appears while transmitting.
w RECEIVER ATTENUATOR INDICATOR (p. 10)
“LOCAL” appears when the receiver attenuator is in use.
e SCRAMBLER INDICATOR (p. 13)
“SCRAM” appears when an optional voice scrambler is ac-
tivated.
r SCAN INDICATOR
➥ Either “NORMAL SCAN” or “PRI-SCAN 16” scan
type appears while scanning. (p. 17)
➥ “DUAL 16” appears during dualwatch; “TRI 16”
appears during tri-watch. (p. 15)
t POSITION INDICATOR
➥ Shows the GPS position data.
•“??” may blink every 2 sec. instead of position data when
the GPS position data is invalid. In such a case, the last
position data is held for up to 23.5 hours.
•“??” may blink every 2 sec. instead of position data 4
hours after the position data is input manually, up until
23.5 hours have past.
➥ “No Position” appears when no GPS receiver is con-
nected and no position data is input manually.
y TIME ZONE INDICATOR
➥ “Local” appears when the offset time data in the ‘Set
up’ menu is entered. (p. 44)
➥ “No Time” appears when no GPS receiver is con-
nected and no time data is input manually.
u CHANNEL COMMENT INDICATOR
➥ Channel comment appears if programmed. (p. 11)
➥ “Low Batt” flashes when the battery voltage drops to
approx. 10 V DC or below.
BUSY-25W---INT---CALL
LOCAL--DUP
SCRAM--TAG
NORMAL-SCAN
-34°34.506N
123°23.236W
Local--1:10--CALLING
w
q
e
t
y
r
!2!3 !1 !0 o
i
u
PANEL DESCRIPTION
6
2
