CONNECTIONS AND MAINTENANCE
■ Mounting the transceiver
DD
Using the supplied mounting bracket

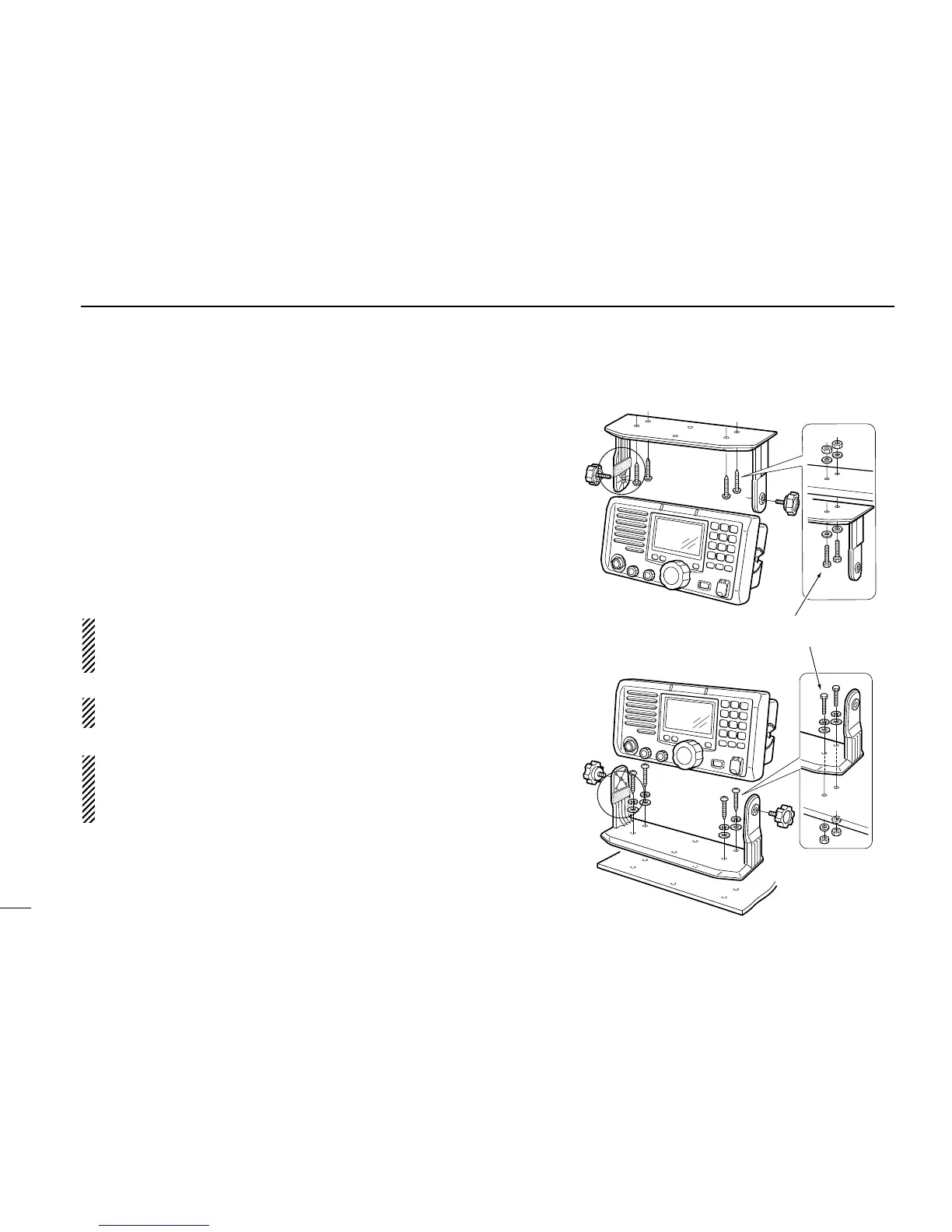

The universal mounting bracket supplied with your transceiver
allows overhead or onboard mounting.
•Mount the transceiver securely with the 4 supplied screws
(M5 × 20) to a surface which is more than 10 mm thick and
can support more than 5 kg.
• Mount the transceiver so that the face of the transceiver is at
90° to your line of sight when operating it.
CAUTION: KEEP the transceiver and microphone at
least 1 meter away from your vessel’s magnetic navigation
compass.
NOTE: Check the installation angle; the function display
may not be easy-to-read at some angles.
NOTE: When mounting the transceiver on the place that
is prone to strong vibration, use the supplied sponges be-
tween the transceiver and mounting bracket for reducing
the effect of the vibration.
