BATTERY CHARGING
New2001
■ Optional battery chargers

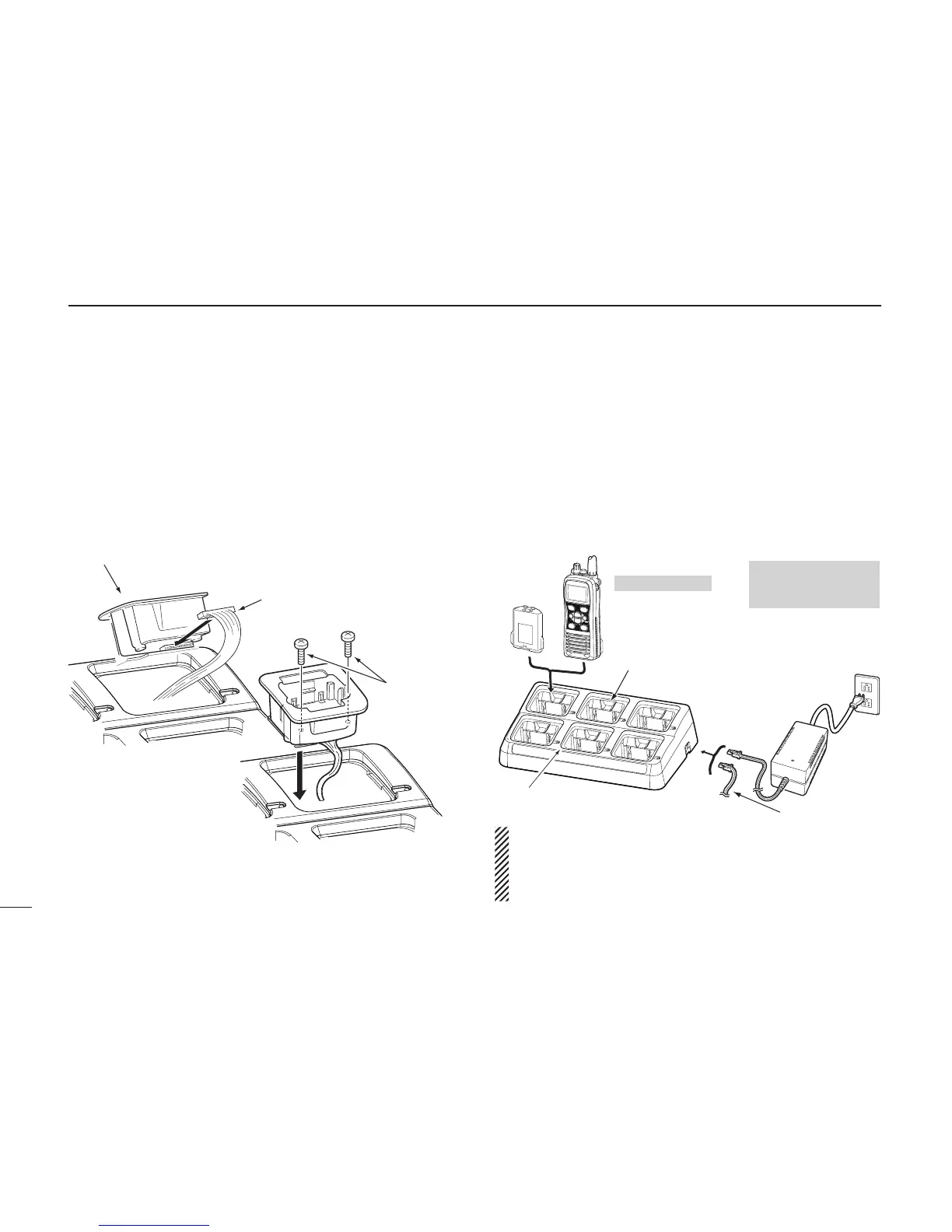

D AD-129 installation
q Connect the 8-pin connector of the each charger slot to
the AD-129 desktop charger adapter’s plug.
w Install the adapter into the each charger slot in the di-
rection of the arrow, then use the two supplied screws
to secure the adapter to the charger.
D Rapid charging with the BC-197+BC-157S
or OPC-656
The optional BC-197 with the BC-157S will simultaneously
charge up to 6 Li-ion battery packs. The following items are
additionally required. (Charging time: approximately 2.5 hours)
• Six AD-129 charger adapters
• An AC adapter (BC-157S) or the DC power cable (OPC-656)
Desktop charger adapter
8-pin connector
Supplied
screws
Battery
pack
The charger adapters
are installed in each slot.
Transceiver
Tu rn OFF power
(An AC adapter is
not supplied with
some versions.)
AC adapter
(Connect to a DC power supply: 12 to 16 V/at least 7 A)
Status indicator
(each indicator independently functions)
DC power cable (OPC-656)
OPC-656*
DC power cable
*
NEVER reverse the polarity when connecting the power cab
le to
a power source. This will ruin the battery charger.
Red line : + Black line : _
NEVER transmit near
the BC-197 or the AC
adapter while charging.
