PANEL DESCRIPTION
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
New2001

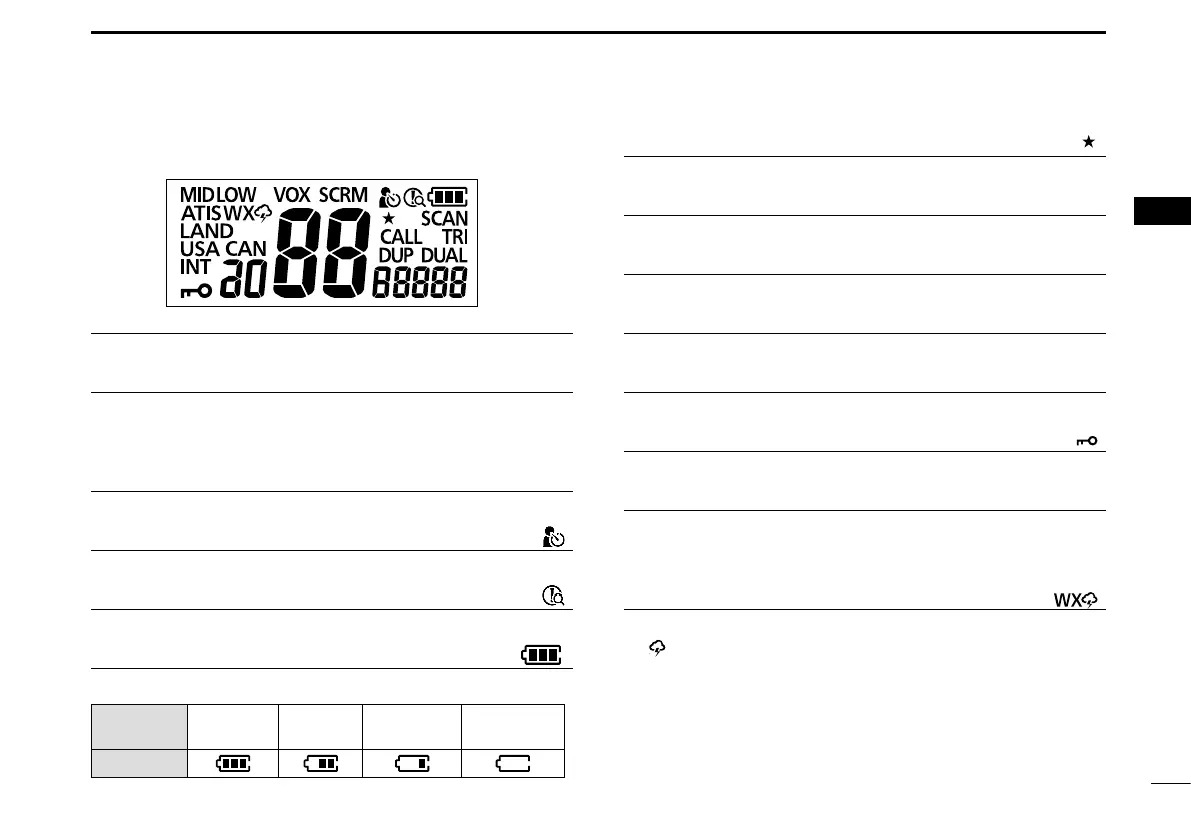

■ Function display
TRANSMIT POWER INDICATOR “MID”/“LOW”
Displayed when low power or mid power is selected.
VOX INDICATOR “VOX”
Displayed when the VOX function* is ON.
* Usable only when the optional PTT switch cable and headset are
connected.
VOICE SCRAMBLER INDICATOR “SCRM”
Displayed when the Voice scrambler is ON. (p. 18)
MAN DOWN ICON
“ ”
Displayed when the Man Down Alarm function is ON. (p. 22)
LONE WORKER ICON
“ ”
Displayed when the Lone Worker Alarm function is ON. (p. 22)
BATTERY INDICATOR
“ ”
Displays the battery status.
Battery
status
Full Mid
Charging
required
Battery
exhausted
Indication
FAVORITE CHANNEL ICON
“ ”
Displayed when a Favorite channel is selected. (p. 16)
SCAN INDICATOR “SCAN”
Blinks while scanning. (p. 15)
CALL CHANNEL INDICATOR “CALL”
Displayed when the Call channel is selected. (p. 11)
DUALWATCH/TRI-WATCH INDICATOR “DUAL”/“TRI”
Displayed during Dualwatch or Tri-watch operation. (p. 17)
DUPLEX INDICATOR “DUP”
Displayed when a Duplex channel is selected.
LOCK ICON “ ”
Displayed when the Lock function is ON.
CHANNEL GROUP INDICATOR “INT”/“USA”/“CAN”/“LAND”/“ATIS”
Displays the selected channel group.*
1
(p. 12)
*
1
The selectable channel groups may differ, depending on the
version.
WEATHER CHANNEL ICON*
2
“ ”
Displayed when the Weather channel is selected. (p. 12)
L “ ” is displayed when the Weather Alert function is ON.
*
2
Except the European, UK, and German versions.

Icom IC-M85 Specifications

General

Purpose	Multi-Use Radio Service (MURS)
Operating frequency	136.000 – 174.000 MHz
Antenna connector type	FA-SC58V
Number of antenna connectors	1
Battery type	BP-290
Battery low indication	Yes
Product color	Black
Waterproof up to	1 m
Operating temperature (T-T)	-20 - 60 °C
Number of batteries included	1 pc(s)

Weight and Dimensions

Depth	29 mm
Width	56 mm
Height	92 mm
Weight	246 g
