PANEL DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

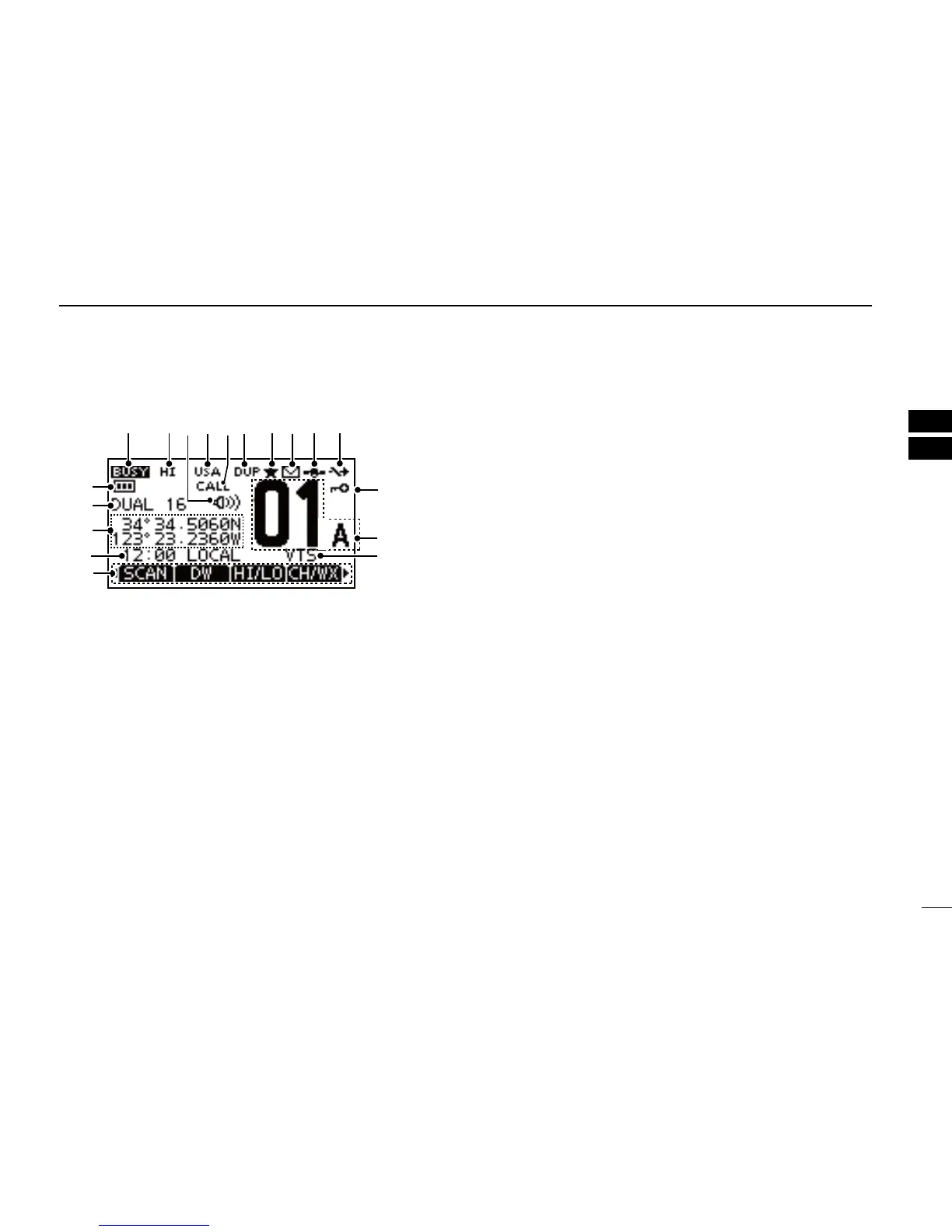

Function display ■
q
!4
w
e
r
t y ui
o
!0
!1
!2
!3
!5
!6
!7
!8
q BUSY/TRANSMIT INDICATOR (p. 2)
“BUSY” Appears when receiving a signal or when the ➥
squelch opens. (p. 10)
“TX” appears while transmitting. ➥
w POWER ICON (p. 2)
“HI” appears when high power is selected. ➥
“LOW” appears when low power is selected. ➥
e VOLUME LOUD/VOLUME MUTE ICON (p. 12)
Volume loud or volume mute icon appears when the ➥
functions are set.
r CHANNEL GROUP ICON/ WEATHER CHANNEL (p. 9)
Selected channel group icon appears between U.S.A. ➥
“USA,” International “INT,” Canadian “CAN”.
“WX” appears when the weather channel is selected. ➥
The icon blinks while the weather alert function is acti- ➥
vated; blinks when the alert tone is received.
t CALL CHANNEL ICON (p. )
Appears when call channel is selected.
y DUPLEX ICON (p. 2)
Appears when a duplex channel is selected.
u TAG CHANNEL ICON (p. )
The icon appears while a TAG (favorite) channel is se-
lected.
i MAIL ICON (p. )
The icon appears when a message is received.
o GPS ICON (p. )
Stays ON when the GPS receiver is activated and a ➥
valid position data is received.
Blinks when an invalid position data is being received. ➥
!0 AUTO SW ICON (p. )
Blinks when both the Auto Switch function and Auto Tune-
timer are turned OFF.
!1 LOCK ICON (p. )
Appears while the lock function is activated.
!2 CHANNEL NUMBER READOUT (p. 2)
Indicates the selected operating channel number.
!3 CHANNEL NAME INDICATOR (p. 2)
Indicates the channel name of the selected operating
number if programmed.
