5
SET MODE
5-3

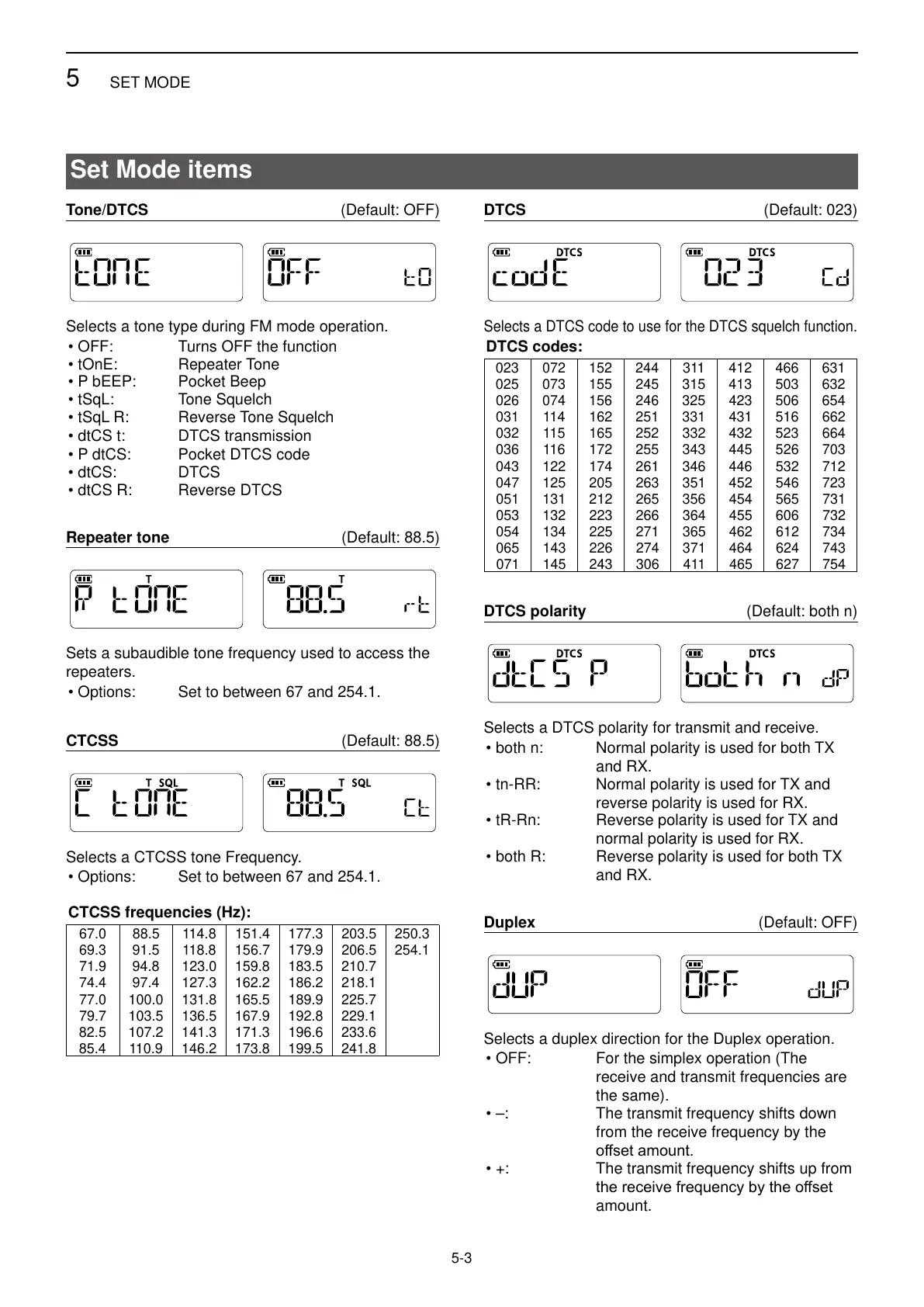

Set Mode items
Tone/DTCS (Default: OFF)
Selects a tone type during FM mode operation.
• OFF: Turns OFF the function
• tOnE: Repeater Tone
• P bEEP: Pocket Beep
• tSqL: Tone Squelch
• tSqL R:
• dtCS t:
• P dtCS:
Reverse Tone Squelch
DTCS transmission
Pocket DTCS code
• dtCS: DTCS
• dtCS R: Reverse DTCS
Repeater tone (Default: 88.5)
Sets a subaudible tone frequency used to access the
repeaters.
• Options: Set to between 67 and 254.1.
CTCSS (Default: 88.5)
Selects a CTCSS tone Frequency.
• Options: Set to between 67 and 254.1.
CTCSS frequencies (Hz):
67.0 88.5 114.8 151.4 177.3 203.5 250.3
69.3 91.5 118.8 156.7 179.9 206.5 254.1
71.9 94.8 123.0 159.8 183.5 210.7
74.4 97.4 127.3 162.2 186.2 218.1
77.0 100.0 131.8 165.5 189.9 225.7
79.7 103.5 136.5 167.9 192.8 229.1
82.5 107.2 141.3 171.3 196.6 233.6
85.4 110.9 146.2 173.8 199.5 241.8
DTCS (Default: 023)
Selects a DTCS code to use for the DTCS squelch function.
DTCS codes:
023 072 152 244 311 412 466 631
025 073 155 245 315 413 503 632
026 074 156 246 325 423 506 654
031 114 162 251 331 431 516 662
032 115 165 252 332 432 523 664
036 116 172 255 343 445 526 703
043 122 174 261 346 446 532 712
047 125 205 263 351 452 546 723
051 131 212 265 356 454 565 731
053 132 223 266 364 455 606 732
054 134 225 271 365 462 612 734
065 143 226 274 371 464 624 743
071 145 243 306 411 465 627 754
DTCS polarity (Default: both n)
Selects a DTCS polarity for transmit and receive.
• both n: Normal polarity is used for both TX
and RX.
• tn-RR: Normal polarity is used for TX and
reverse polarity is used for RX.
• tR-Rn: Reverse polarity is used for TX and
normal polarity is used for RX.
• both R: Reverse polarity is used for both TX
and RX.
Duplex (Default: OFF)
Selects a duplex direction for the Duplex operation.
• OFF: For the simplex operation (The
receive and transmit frequencies are
the same).
• –: The transmit frequency shifts down
from the receive frequency by the
• +: The transmit frequency shifts up from
amount.
