BATTERY CHARGING
1-4
D BC-213
• Power source requirement: 12 V ~ 16 V DC or the specified Icom power adapter
• Charging temperature range: 10°C ~ 40°C, 50°F ~ 104°F
• Weight: Approximately 84 g, 3.7 oz (without power adapter)
• Dimensions: 77.3 (W) × 46.0 (H) × 66.1 (D) mm, 3.0 (W) × 1.8 (H) × 2.6 (D) inches
(projections not included)
D BP-280 Li-ion
• Voltage: 7.2 V
• Discharge Capacity: 2280 mAh (minimum)
• Usable temperature range: –20°C ~ +60°C, –4°F ~ +140°F
• Charging temperature range: 10°C ~ 40°C, 50°F ~ 104°F
• Storage temperature range: –20°C ~ +50°C, –4°F ~ +122°F (within a month)
–20°C ~ +40°C, –4°F ~ +104°F (within 3 months)
–20°C ~ +20°C, –4°F ~ +68°F (within a year)
• Dimensions: 52.2 (W) × 104.5 (H) × 17.5 (D) mm, 2.1 (W) × 4.1 (H) × 0.7 (D) inches
(projections not included)

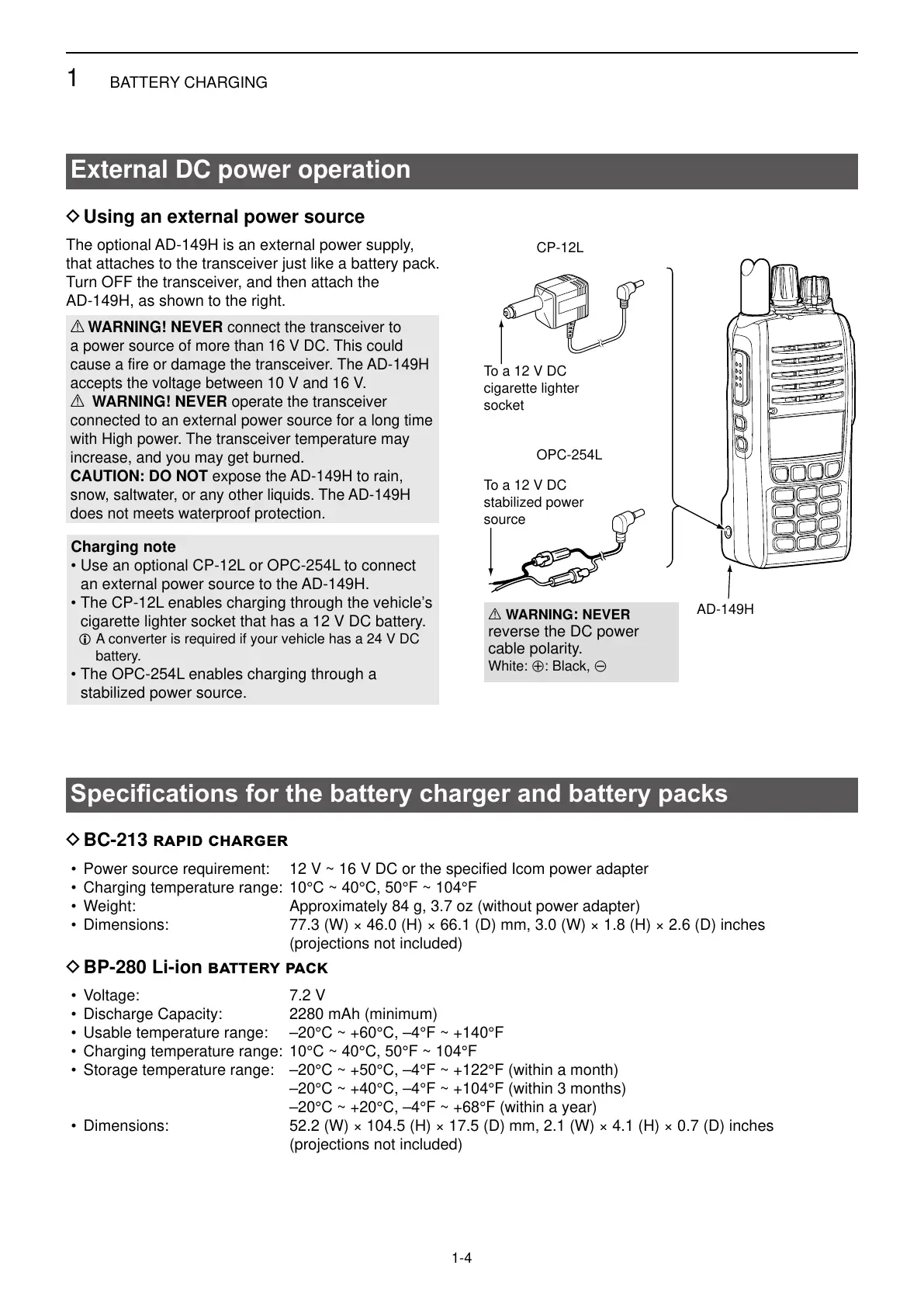

External DC power operation
D Using an external power source
The optional AD-149H is an external power supply,
that attaches to the transceiver just like a battery pack.
Turn OFF the transceiver, and then attach the
AD-149H, as shown to the right.
R WARNING! NEVER connect the transceiver to
a power source of more than 16 V DC. This could
cause a fire or damage the transceiver. The AD-149H
accepts the voltage between 10 V and 16 V.
R WARNING! NEVER operate the transceiver
connected to an external power source for a long time
with High power. The transceiver temperature may
increase, and you may get burned.
CAUTION: DO NOT expose the AD-149H to rain,
snow, saltwater, or any other liquids. The AD-149H
does not meets waterproof protection.
Charging note
• Use an optional CP-12L or OPC-254L to connect
an external power source to the AD-149H.
• The CP-12L enables charging through the vehicle’s
cigarette lighter socket that has a 12 V DC battery.
L A converter is required if your vehicle has a 24 V DC
battery.
• The OPC-254L enables charging through a
stabilized power source.
AD-149H
CP-12L
OPC-254L
To a 12 V DC
cigarette lighter
socket
To a 12 V DC
stabilized power
source
R WARNING: NEVER
reverse the DC power
cable polarity.
White: +: Black, _
