INSTALLATION

Esprit - Installation and Servicing

FLUE OUTLET

rf8737

rf8738

28

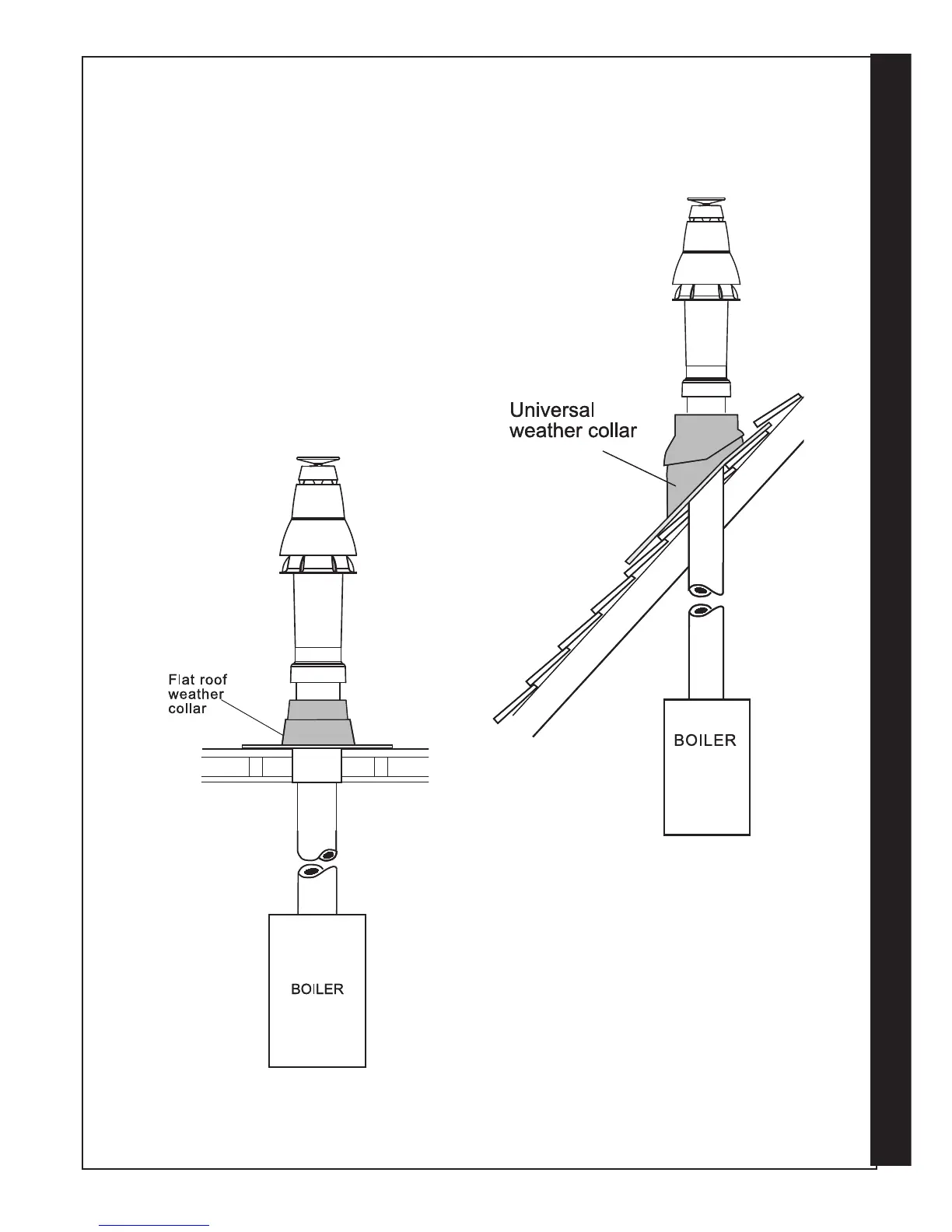

FLUE ARRANGEMENT

Note.

The equivalent flue length resistance of the elbow kits are:

90

o

elbow kit = 1m

45

o

elbow kit = 0.6m
