40
SERVICING
Esprit - Installation and Servicing
2
3
1
4
Ecl 6073
47

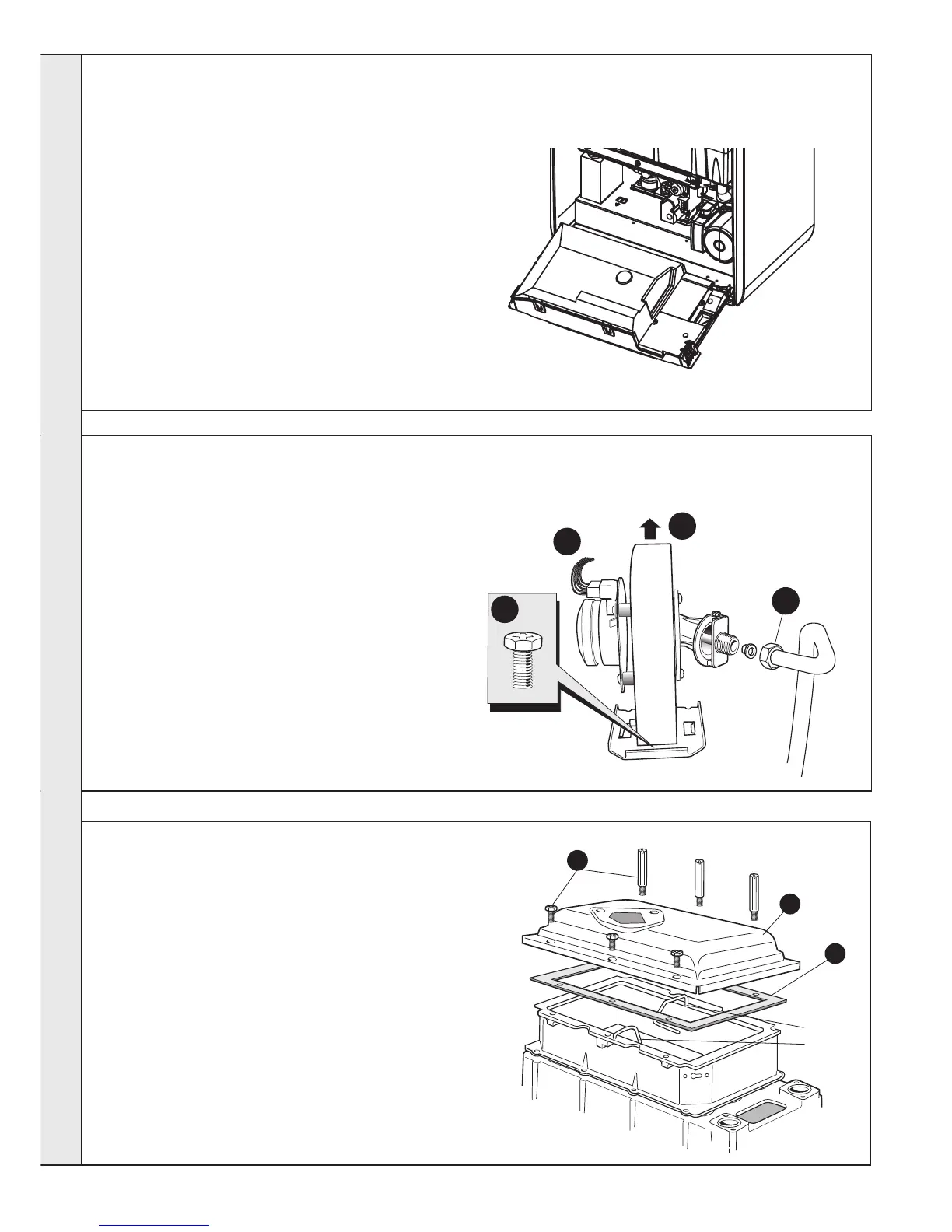

FAN AND VENTURI ASSEMBLY REMOVAL AND CLEANING
48
BURNER REMOVAL AND CLEANING
1. Remove the 6 screws securing the burner (the 3 screws at the
rear are extended to ease access).
2. Lift off the burner from the combustion chamber.
IMPORTANT
The burner head is a ceramic plaque construction. Care must
be taken to ensure that the burner is not placed down upon its
face as this may cause damage to the ceramic.
3. Brush off any deposits that may be on the ceramic with a SOFT
brush.
4. Inspect the sealing gasket around the burner and combustion
chamber insulation for any signs of damage. Replace as
necessary.
Note.
Take care not to disturb the ionisation probes at the front and rear
of the combustion chamber.
1. Disconnect the electrical leads from the
fan.
2. Undo the gas pipe union connection to the
injector housing.
3. Undo the screw on the fan mounting
bracket.
4. Lift off fan and venturi assembly.
5. Inspect the injector for blockage or
damage.
nm7400
Ionisation
Probes
1
2
4
46
THE CONTROL BOX IN THE SERVICING POSITION
1. Pull the panel forward at the top to disengage the
two clips.
2. Carefully swing the control down into its
servicing position.
esp8854
SERVICING
