IKONIX SCI 295 User Manual

RESET
POWER
TEST
RETURN
CAUTION
HIGH VOLTAGE
5KVAC MAX.
6KVDC MAX.
H.V.
CONT.
CHECK
297
AC/DC/IR HIPOT TESTER
FOIL
hipot.com 34
Using the Tester Accessories
WARNING
NEVER CONNECT THE ADAPTER BOX OR TEST LEADS TO THE TESTER WHILE THE HIGH
VOLTAGE OUTPUTS ARE ENERGIZED.
Using the Test Leads
Plug the black ground return lead (P/N 102-069-904) into the Return terminal located on the front panel of the tester.
Plug the high voltage lead (P/N 102-055-913) into the H.V. terminal on the front panel of the tester.
Plug the continuity lead to the CONT. CHECK terminal on the front panel of the tester.
Connect the clip end continuity lead to the ground pin of the DUT.
Connect the clip end of the high voltage lead to the current carrying conductors of the DUT’s circuitry.
Connect the clip end of ground return lead to the exposed or dead metal chassis of the DUT.

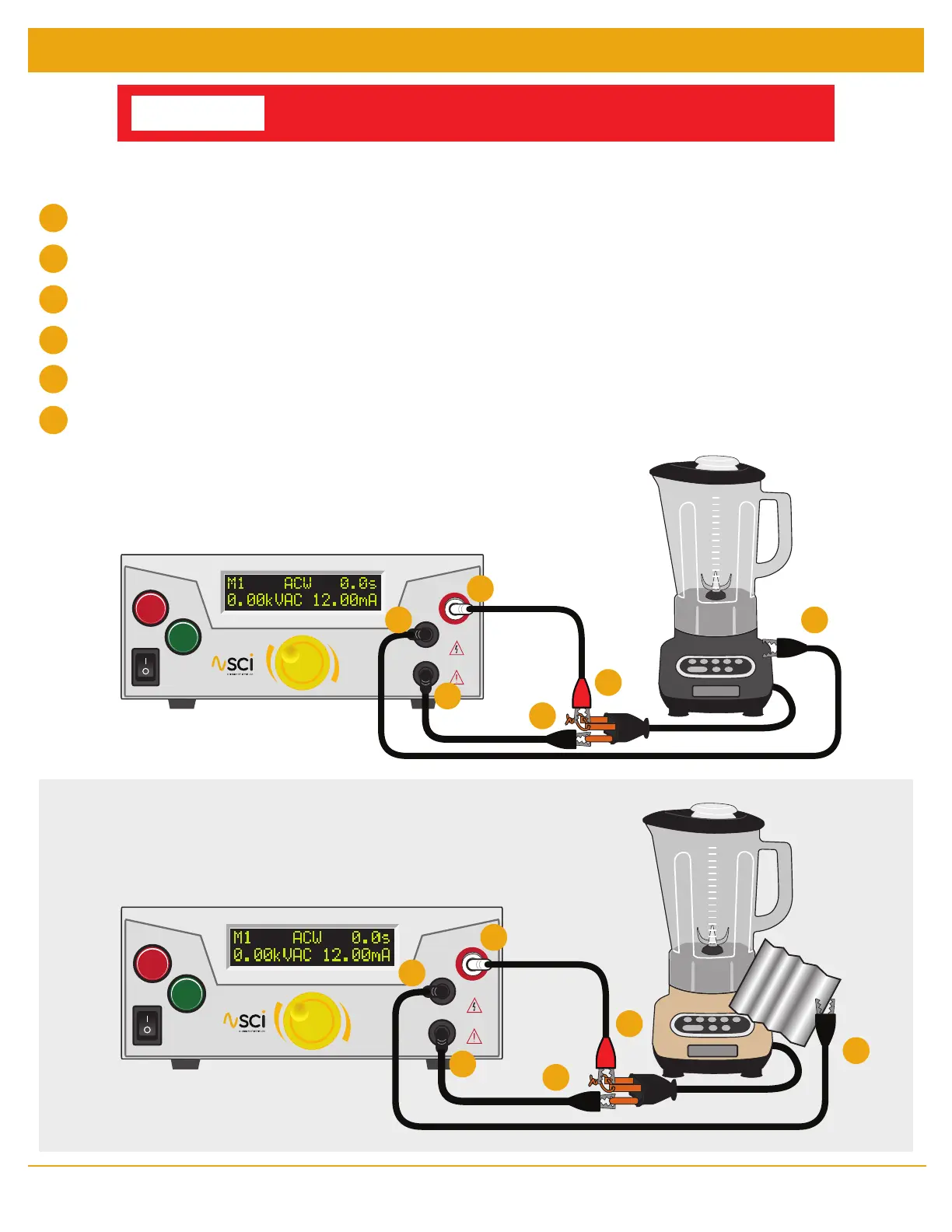

Exposed Metal Chassis Setup
1
2
3
4
6
5
RESET
POWER
TEST
RETURN
CAUTION
HIGH VOLTAGE
5KVAC MAX.
6KVDC MAX.
H.V.
CONT.
CHECK
297
AC/DC/IR HIPOT TESTER
2
2
3
3
4
4
6
6
5
5
1
1
Non-Exposed Metal Chassis Setup
If your chassis does not have any exposed metal, you can wrap the enclosure
of the DUT in foil and then connect the return lead to the foil.
