IKONIX SCI 295 User Manual

Using the Adaptor Box
The adapter box is an optional accessory and is not provided as standard equipment with the 290 Series. If you would like to
acquire an adapter box for use with your tester, please contact Slaughter Company Inc. using the contact information provided
in the Safety section of this manual.

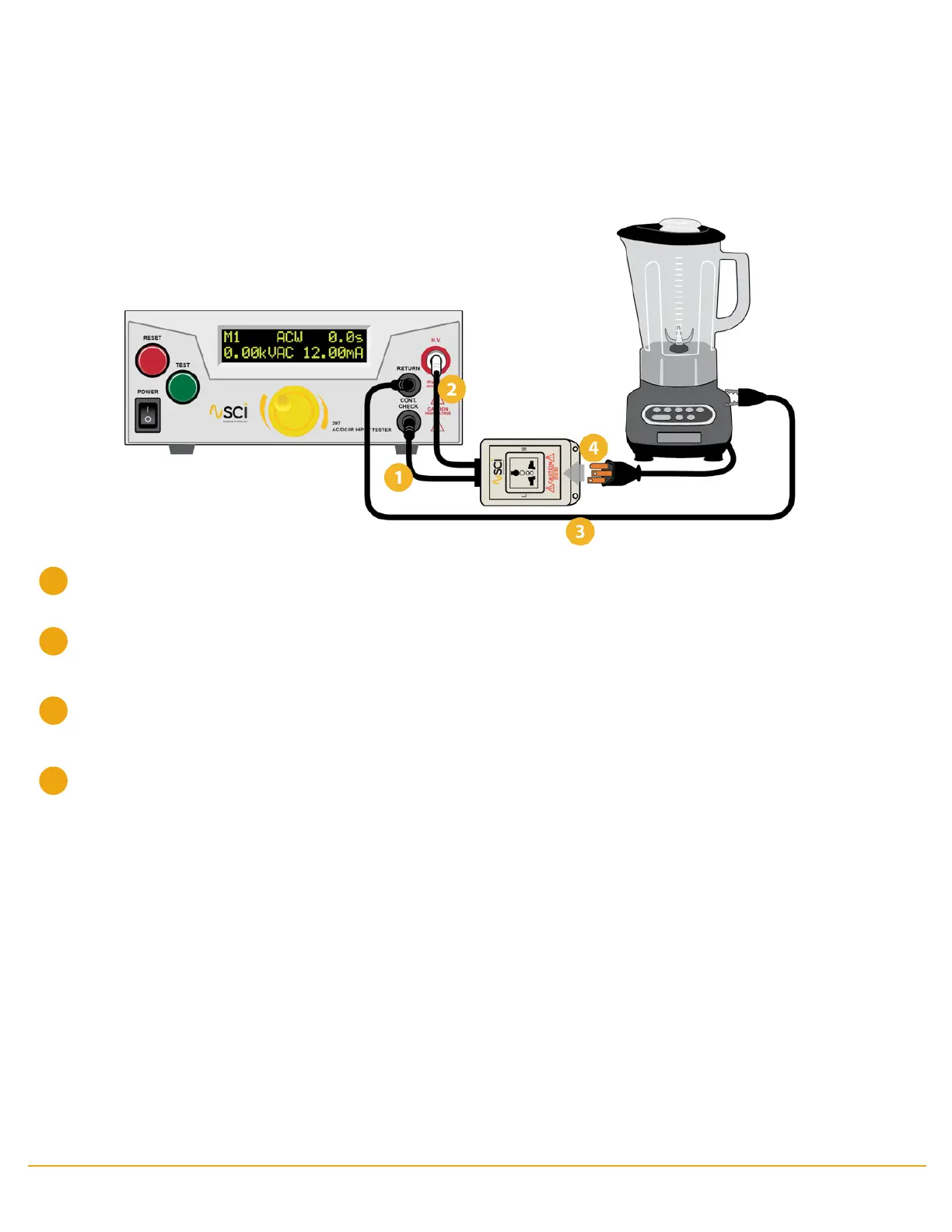

The following diagram shows how to connect the adapter box to the 290 and to the device under test.
Connect the black lead from the adapter box to the front panel CONT. CHECK terminal.
Connect the high voltage lead from the adapter box to the front panel high voltage terminal.
Connect the black return lead (99-10008-01) to the front panel return output terminal and connect the other end of the
lead to the dead metal on the chassis of the DUT.
Plug your DUT into the adapter box.
This adapter box allows for connection to an item that is terminated in a three-prong line cord. If testing a product which is
terminated in a three-prong plug, you are also required to perform a Ground Bond test on the ground conductor of the DUT to
the chassis or dead metal of the product.
hipot.com 35
1
2
3
4
