Page 19INF6502WB/INF6502LC/INF7002WB/INF7002LC User Guide

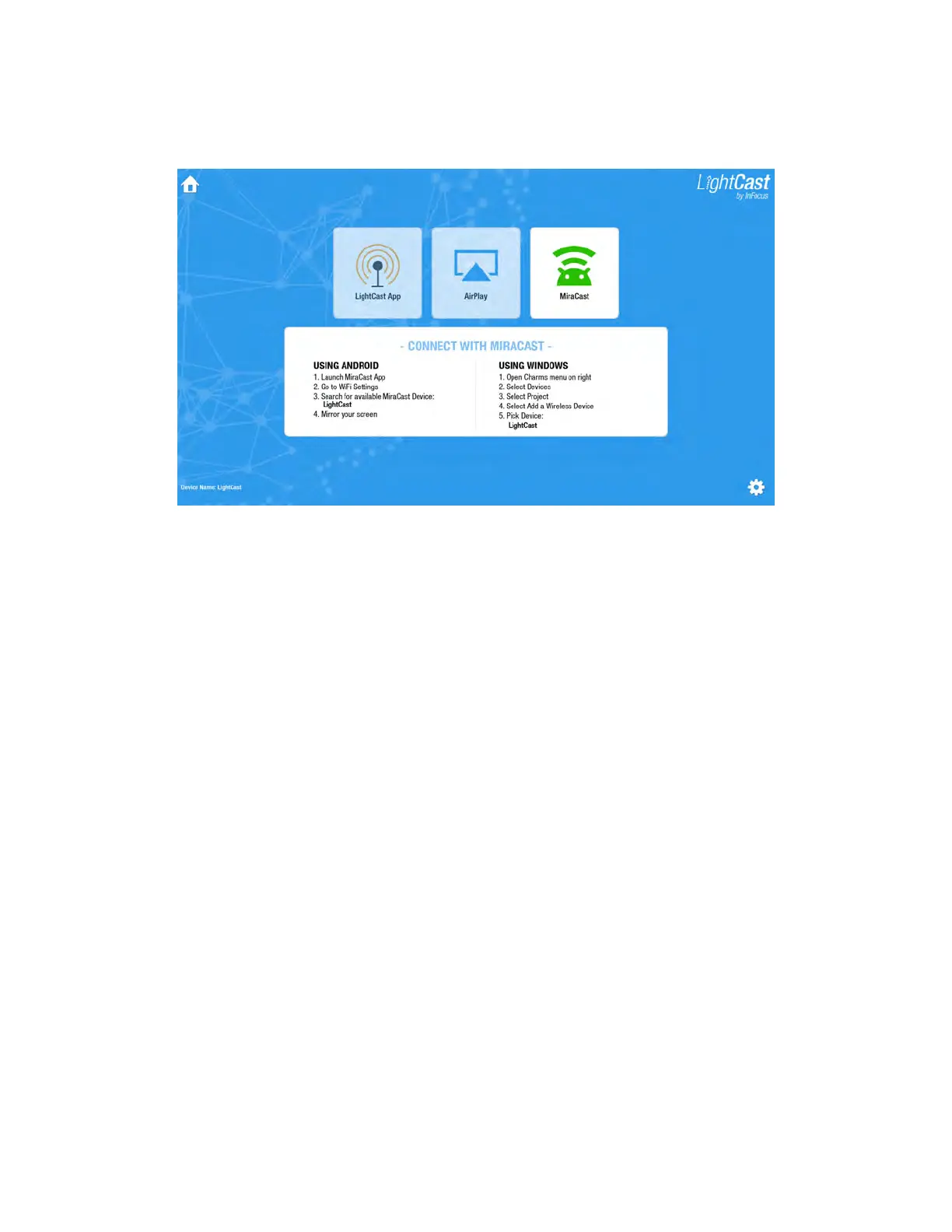

Miracast
MiraCast can make an adhoc network connector over Wifi, however you must have an Android or Windows device
(Windows 8.1 or above) with embedded MiraCast in order to use the MiraCast feature on this monitor. In addition, your
network must follow Miracast configuration guidelines as specified by the Wi-Fi Alliance (www.wi-fi.org).
Using an Android tablet
1) Launch the MiraCast App.
2) Navigate to WiFi Settings.
3) Search for and select the device name listed in step 3 of the Connect with Miracast window.
4) Mirror your screen.
Using a Windows PC (v8.1 or above)
1) Open the Charms menu on the right side of the Windows PC desktop.
2) Select Devices.
3) Select Project.
4) Select Add a Wireless Device.
5) Select the device name listed in step 5 of the Connect with Miracast window.

InFocus INF6502WB Specifications

General

Panel life	- h
Pixel pitch	0.744 x 0.744 mm
Screen shape	Flat
Response time	6.5 ms
Backlight type	W-LED
Display diagonal	65 \
Touch technology	Multi-touch
Display brightness	350 cd/m²
Display technology	LED
LED backlighting type	Direct-LED
Supported video modes	1080p
Touchscreen technology	Capacitive
Contrast ratio (typical)	5000:1
Display number of colors	-
Viewing angle, horizontal	176 °
Supported graphics resolutions	1920 x 1080 (HD 1080)
Number of simultaneous touchpoints	16
USB connector type	USB Type-A, USB Type-B
USB ports quantity	6
HDMI ports quantity	4
VGA (D-Sub) input ports	1
USB 2.0 Type-A ports quantity	5
Picture-in-Picture	No
Product color	Black
Panel mounting interface	400 x 400 mm
RMS rated power	20 W
Number of built-in speakers	2
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Operating temperature (T-T)	0 - 40 °C
Cables included	AC, USB, VGA

Weight and Dimensions

Depth	83.1 mm
Width	1520.5 mm
Height	895 mm
Weight	53500 g
