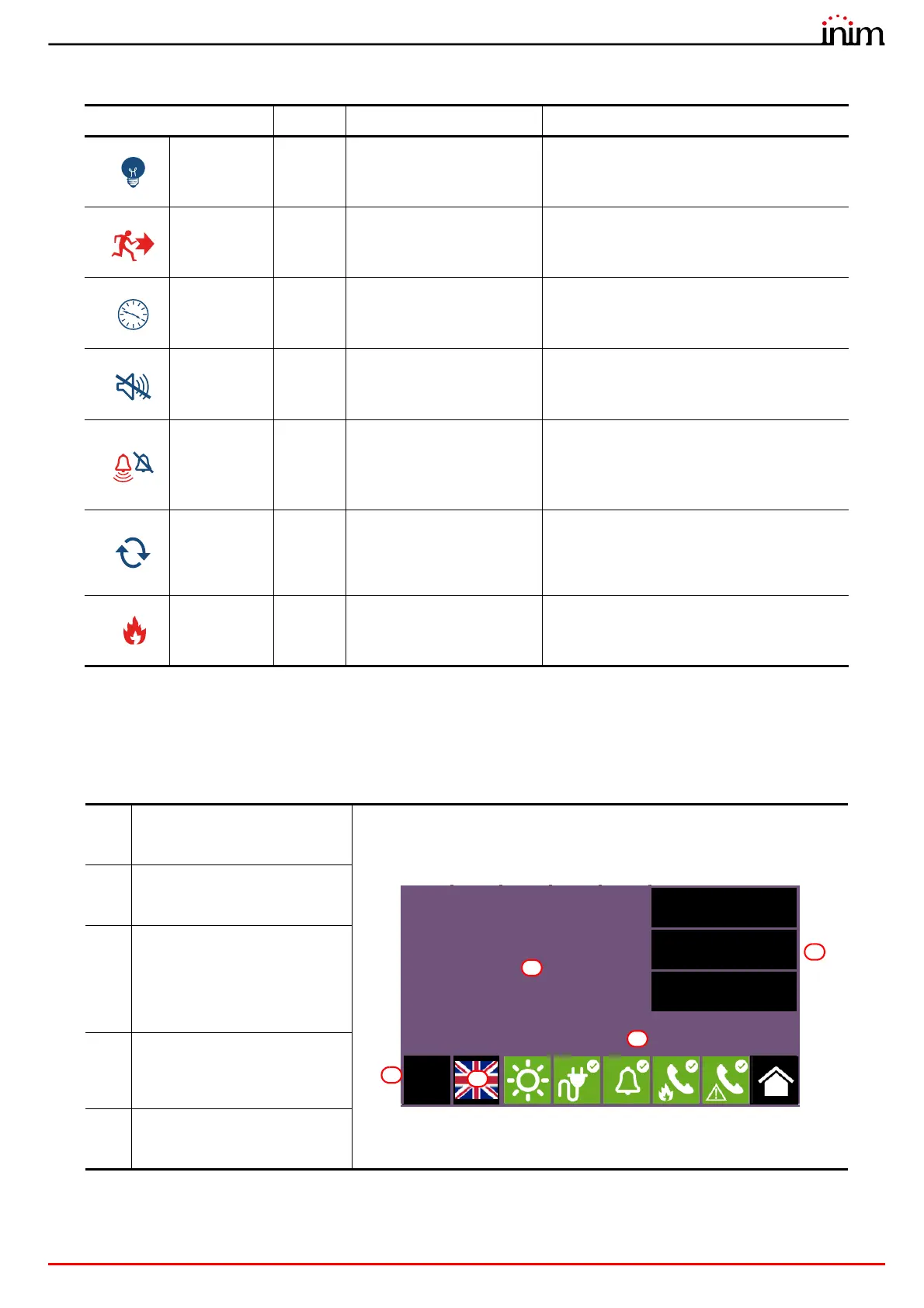

3.3 Screen in standby status
Function LEDs Colour On solid Function button
Signalling
test
Yellow
The test on the visual
signalling devices is running.
If this button is pressed and held all the LEDs
on the control panel will light.
Evacuate Red
The evacuation phase has
been activated manually.
Button for manual activation of the signalling
devices (audible and visual) for evacuation of
the premises.
Investigate Yellow
The investigation time has
been activated.
Button to request supplementary investigation
time and thus lengthen the early-warning
period.
Silence
buzzer
Yellow
The buzzer has been
silenced.
This button silences the control panel buzzer.
Events which occur after silencing will
reactivate the buzzer.
Silence
sounder
Yellow
The sounders have been
silenced.
During alarm status, this button can be used
to stop the audible and visual signalling
devices.
Pressing this button again will reactivate the
silenced audible and visual signalling devices.
Reset Yellow
The reset function is
disabled. The sounders
must be silenced before the
Reset function can be re-
enabled.
Button for the annulment of active events and
the reset of standby conditions.
Multiple
alarms
Red
More than one alarm is
active on the system.
This button allows you to scroll through the
active alarm events on the screen.
[A]
Buttons to access the events
logs, system status and
programming.
[B]
Status bar (always present)
shows essential information
regarding the system.
[C]
Customizable area
(customizable during the
programming phase) for images
relating to the status of the
system elements or customized
function buttons .
[D]
Date and Time of the system
Selection of the indication
accesses (at level 2) the date
and time setting window
[E]
Button to change the language
used by the control panel, if
required by the configuration
Log
System status
Programming
01/01/2020 18:23
L:1
To Next Page
