INIM Electronics SmartLoop Programming Manual

Programming Manual
10 The SmartLoop control panel
Chapter 3
The SmartLoop control panel

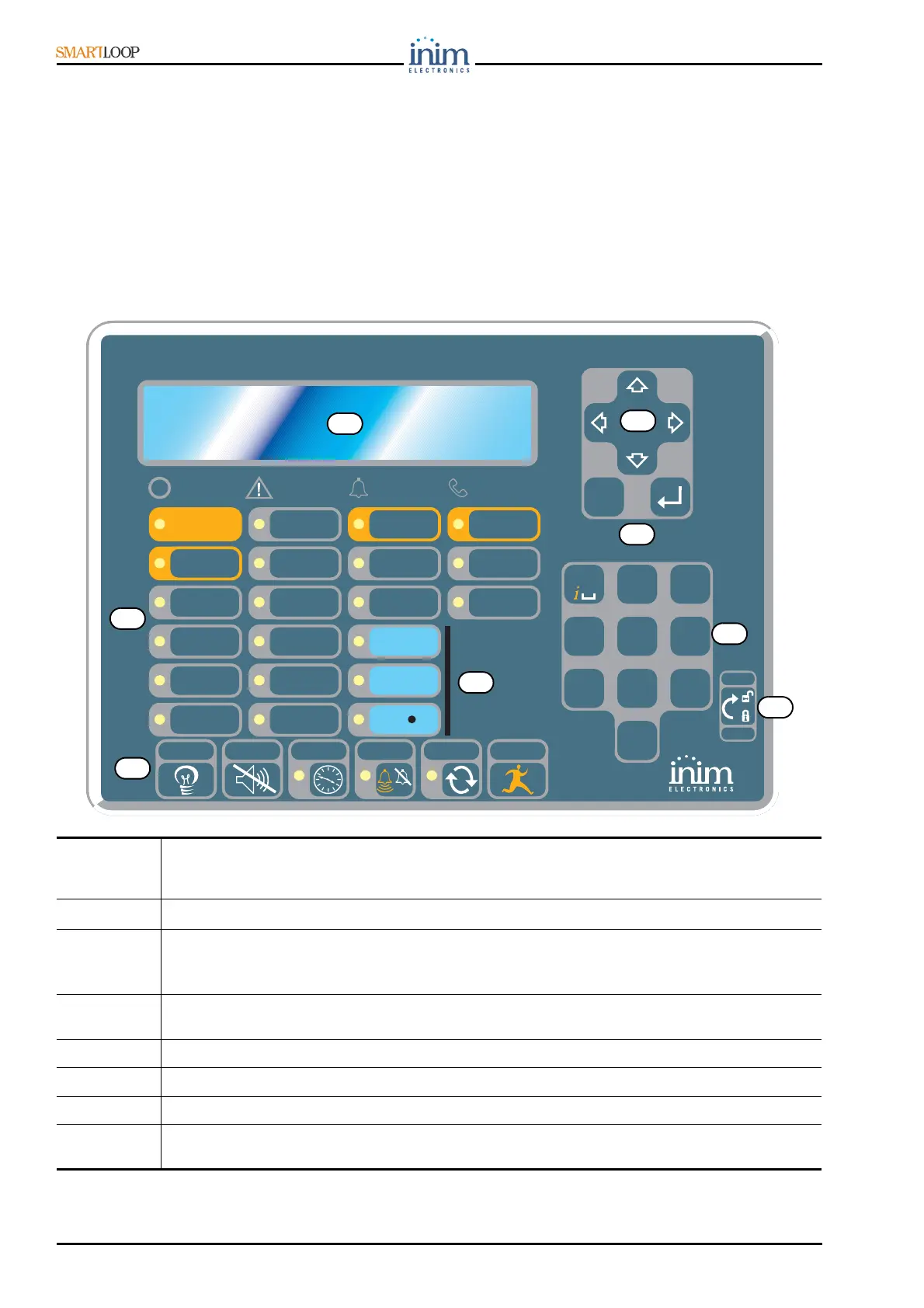

3.1 The console
All the models in the SmartLoop, except for SmartLoop2080/S and SmartLoop1010/S (flush front with
no display or keypad), have the following console:
[1] 40 character x 4 line alphanumeric display. Indicates the system status; signals critical events
(priority given to the most serious events); allows you to navigate through of the main menu
and screens.
[2]
Keys
, , , and  allow you to move and work on the menu screens.
[3]
The
ESC key allows you to cancel an operation and exit a screen, or step back to the options
of a higher-level menu. The
 key allows you to confirm an operation and exit a screen or go
to the options of a lower-level menu.
[4] Alphanumeric keypad for data entries. Key 1 allows you to view the specifics of events which
provide detailed information.
[5] Dedicated status LED.
[6] Programmable status LED.
[7] Fast buttons for use in the event of alarm or fault.
[8] Keyswitch: allows Level 2 users (Security personnel, etc.) to access to the system. Can be used
instead of code entry.
RESET
EVACUATE
SILENCE
INVESTIGATE
BUZZERTEST
ALARM
PRE-ALARM
TEST
DISABLED
NIGHT MODE
ON
FAULT
CPU FAULT
EARTH
BATTERY
FUSE
MAINS
ACTIVE
FAULT
DISABLED
ACTIVE
FAULT
DISABLED
FAULTS BELLSSTATUS DIALLER
LEV.1
LEV.2
Esc
2
abc
5
jkl
8
tuv
0
.,
3
def
6
mno
9
wxyz
1
4
ghi
7
pqrs
1
2
3
4
5
6
7
8
