Inovance CS200-4T30GB User Manual

Chapter 7 Selection and Dimensions
- 108 -

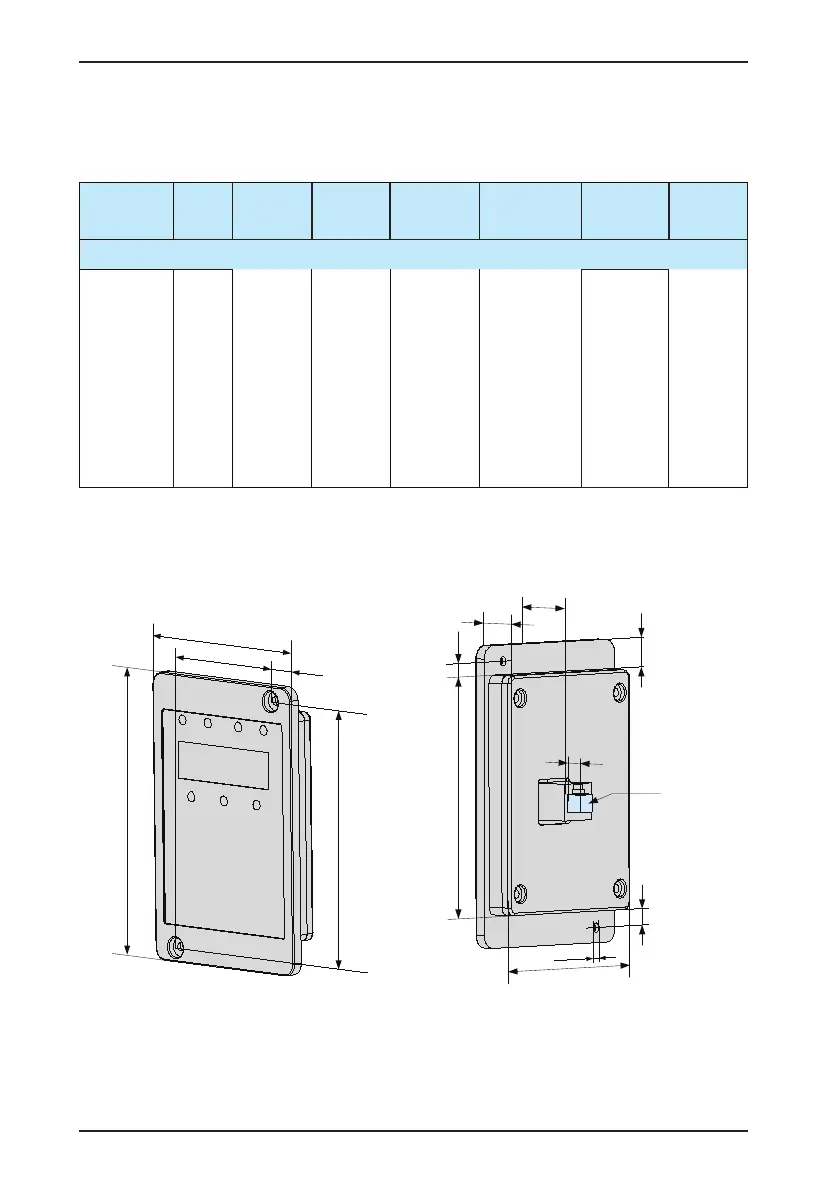

7.4 Selection Guidance on Input and Output Cables
Figure 7-9 Selection guidance on peripheral electrical components of the CS200
AC Drive Model
Rated
Input
Current
Circuit
Breaker
Specication
Contactor
Specication
Main Circuit
Cable on Input
Side (mm
2
)
Main Circuit
Cable on Output
Side (mm
2
)
Control Circuit
Cable (mm
2
)
Main Circuit
Ground
Cable (mm
2
)
Three-phase 440 V, 50/60 Hz
CS200-
4T18.5GB
49.50 80 65 10 10 0.75 10
CS200-4T22GB 59.00 80 65 16 16 0.75 16
CS200-4T30GB 57.00 80 65 16 16 0.75 16
CS200-4T37GB 69.00 100 80 25 25 0.75 16
CS200-4T45GB 89.00 160 95 25 25 0.75 16
CS200-4T55GB 106.00 160 115 35 35 0.75 16
CS200-4T75GB 139.00 250 150 50 50 0.75 25
7.5 Physical Dimensions of External Operation Panel
Figure 7-10 Physical dimensions of external operation panel
116.0
76.0
54.0
104.0
11.0
92.5
71
15.0
27.0
10.0
Crystal
head
5.0
6.5
11.0
Ø3.5
