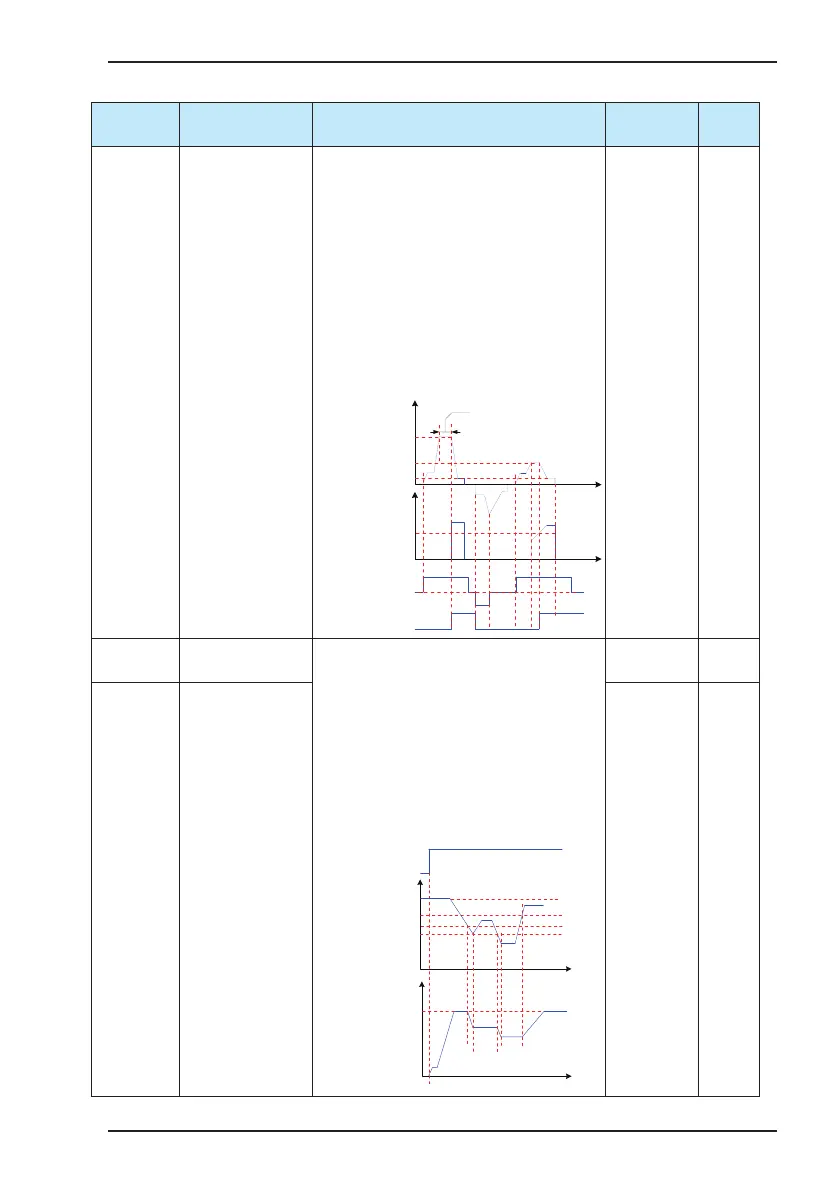

Chapter 5 Function Code Table
- 75 -
Function
Code
Parameter Name Function Description Setting Range Default
bE.13
Torque threshold of
overload protection
It is used to set the torque threshold at which the
overload protection is enabled.
If it is set to 0, the function is disabled.
When the AC drive runs in the forward direction,
if the output frequency reaches the value of b7.17
or reaches the constant-speed running frequency,
the output torque is detected. For details, see the
descriptions of b7.16 and b7.17.
If the output torque is larger than the setting
of bE.13, the AC drive stops automatically and
restricts forward running. After the AC drive runs in
the reverse direction, the restriction is cancelled.
Time
Detected torque
Output
frequency
Brake apply frequency
RUN command
Output function 11:
Time
Detection
frequency (b7.17)
Detection time
Torque threshold (bE.13)
Target frequency
(b7.16)
Overload protection enabled
0.0% to
150.0%
0
bE.14 Selection of power dip
ride-through
These two parameters are used to set the power
dip ride-through function. With this function, the
AC drive can automatically reduce the max. output
frequency to maintain the full-torque output when a
sudden bus voltage dip occurs.
bE.14 =1: Power dip ride-through enabled
bE.14 = 0: Power dip ride-through disabled
bE.15 is used to set the voltage level of power dip
ride-through enabled. It is a percentage of standard
bus voltage.
Bus voltage
Time
Time
Standard bus voltage
Power dip ride-through
disabled voltage level
Rated frequency
RUN command
Power dip ride-through
enabled voltage level
Output frequency
0, 1 0
bE.15 Voltage level of power
dip ride-through
enabled
70% to 95% 85%
