- 136 -
End segment proportion of
S curve
Factory default
value
30.0%
F6-09
Setup range 0.0%~ 40.0%

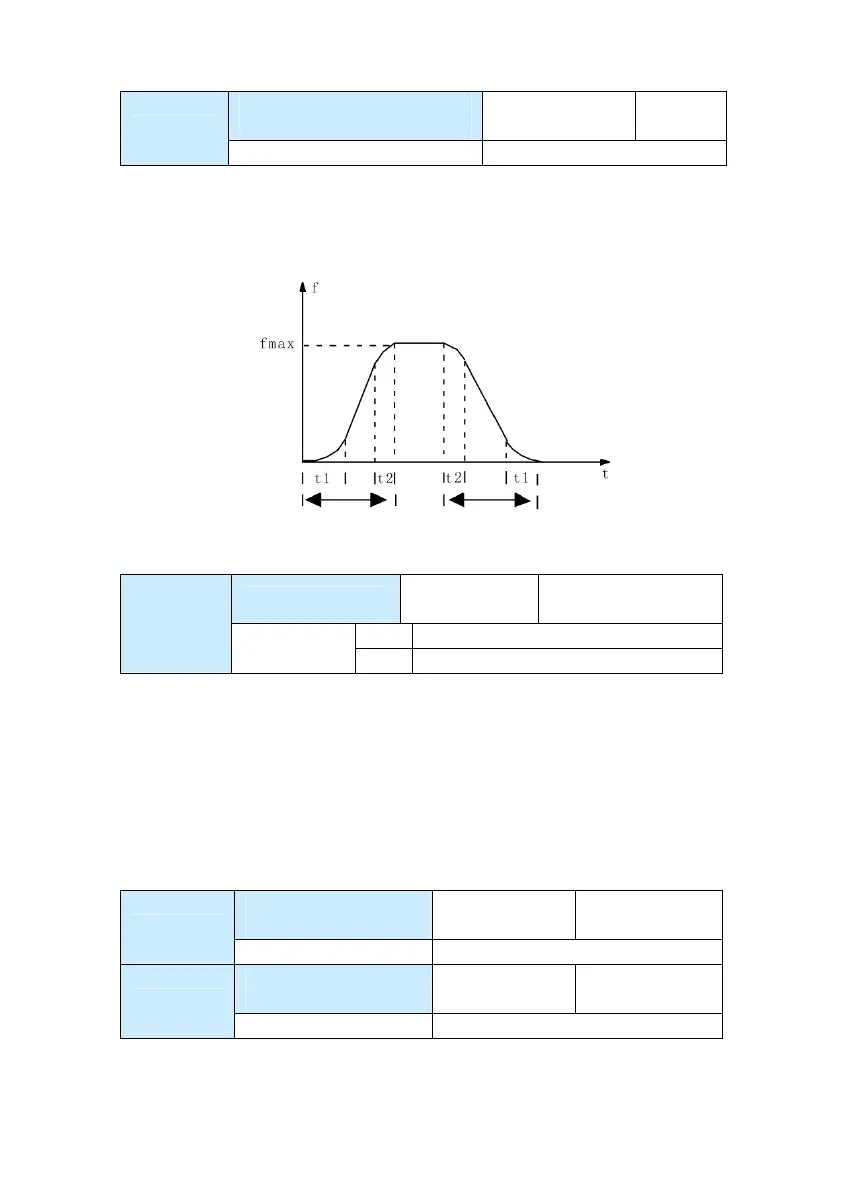

t1 in the following figure is the parameter set in F6-08, within which the output
frequency change slope increases gradually. t2 is the time defined in F6-03,
with which the slope of the output frequency change gradually decreases to 0.
Within the time between t1 and t2, the slope of the output frequency change
remains fixed.
Fig.6-9 Schematic Diagram for S curve Speed-up/Speed-down
Stop mode
Factory
default value
0
0 Deceleration to stop
F6-10
Setup range
1 Coast to stop
0: Speed-down to stop
After the stop command is enabled, the driver reduces the output frequency
in accordance with the deceleration mode and the defined
acceleration/deceleration time, and will stop after the frequency reduces to
zero.
1: Free stop
After the stop command is enabled, the driver will terminate the output
immediately. The load will coast to stop according to the mechanical inertia.
DC brake beginning
frequency at stop
Factory default
value
0.00Hz
F6-11
Setup range 0.00Hz ~maximum frequency
DC brake waiting
time at stop
Factory default
value
0.0s
F6-12
Setup range 0.0s~ 36.0s
Acceleration Time
Deceleration Time
