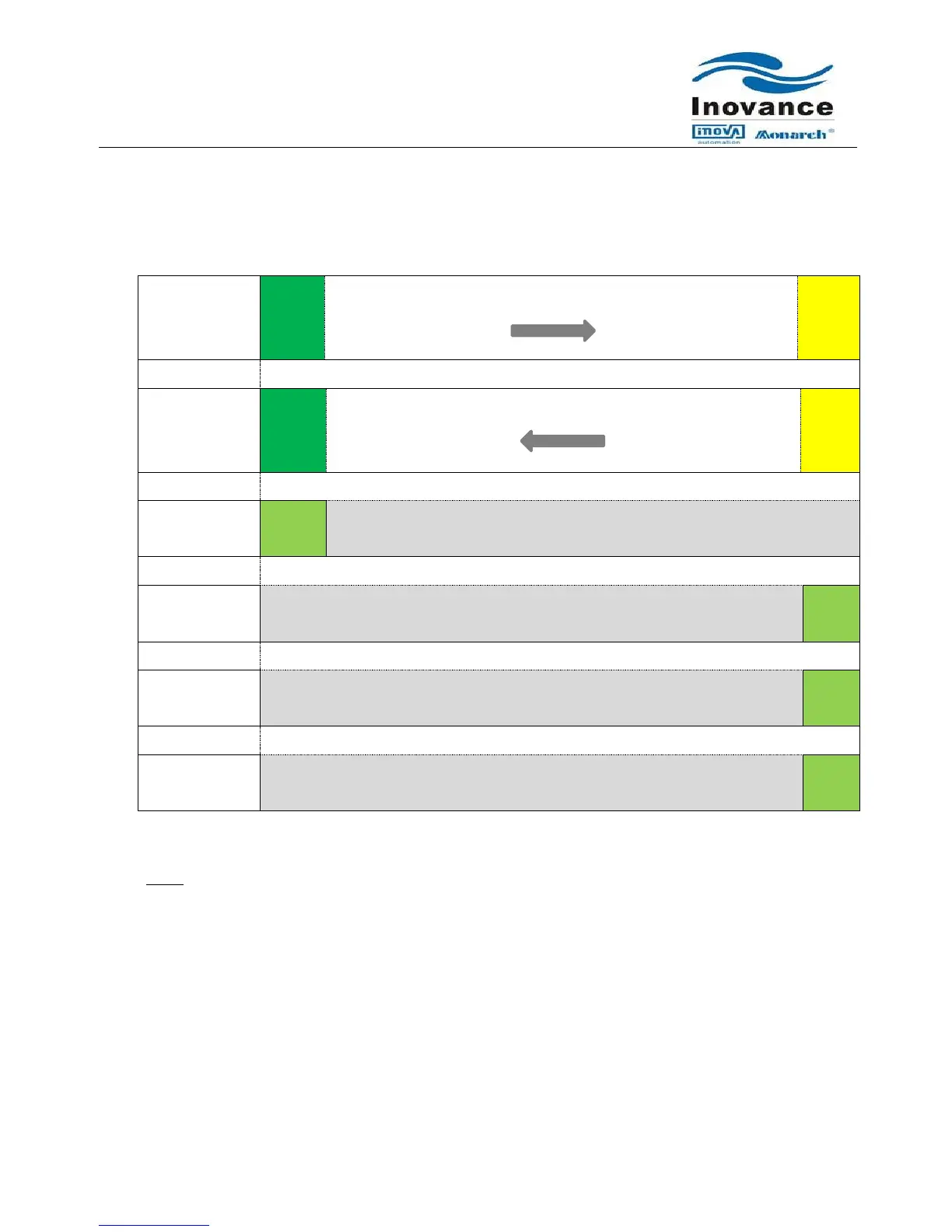

Door Operation Timing Diagram
Door Close
command
Y7 ON
Open
End
Door Closing
Fully
Closed
Door Open
Command
Y6 ON
Fully
Opened
Door Opening
Close
End
X14 LED
F5-14=022
ON
OFF
X18 LED
F5-18=024
OFF
ON
X26 LED
F5-26=02
OFF
ON
X27 LED
F5-27=03
OFF
ON
Note:
Improper sequence of Door open Limit (X14), Door Close Limit (X18), Car safety (X26) and Landing safety
(X27) can lead to the Err53 and stops the Elevator function.
